Kia Optima 2000–2005 Service Manual

3,462 Pages • ZIP Download: Printable PDF • 91.80 MB

4.5starstarstarstarstar_half(2)
$17.45 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kia Models Covered & Key Technical Specifications

Model: Optima

Trade Names: Magentis

Model Years: 2000–2005 (2000, 2001, 2002, 2003, 2004, 2005)

Sub-models / Variants: LX — 2.4L DOHC (M5GF1 5-speed manual), 2.7L DOHC (M5GF1-1 5-speed manual), 2.4L and 2.7L (F4A42-2 4-speed automatic diagnosis and overhaul; F4A42 automatic removal and installation)


  • Headlight bulb: 65W / 55W (High / Low)

  • Keyless entry transmitter power: Lithium 3V battery (CR2032)

  • Transmission frequency: 315 MHz

  • Operating voltage: DC 9V-16V

  • Standard transmitter battery voltage: 3V

  • Operating temperature range: -30°C ± 80°C

  • Rear window defogger satisfactory voltage: Approx. 6V (at glass center point)

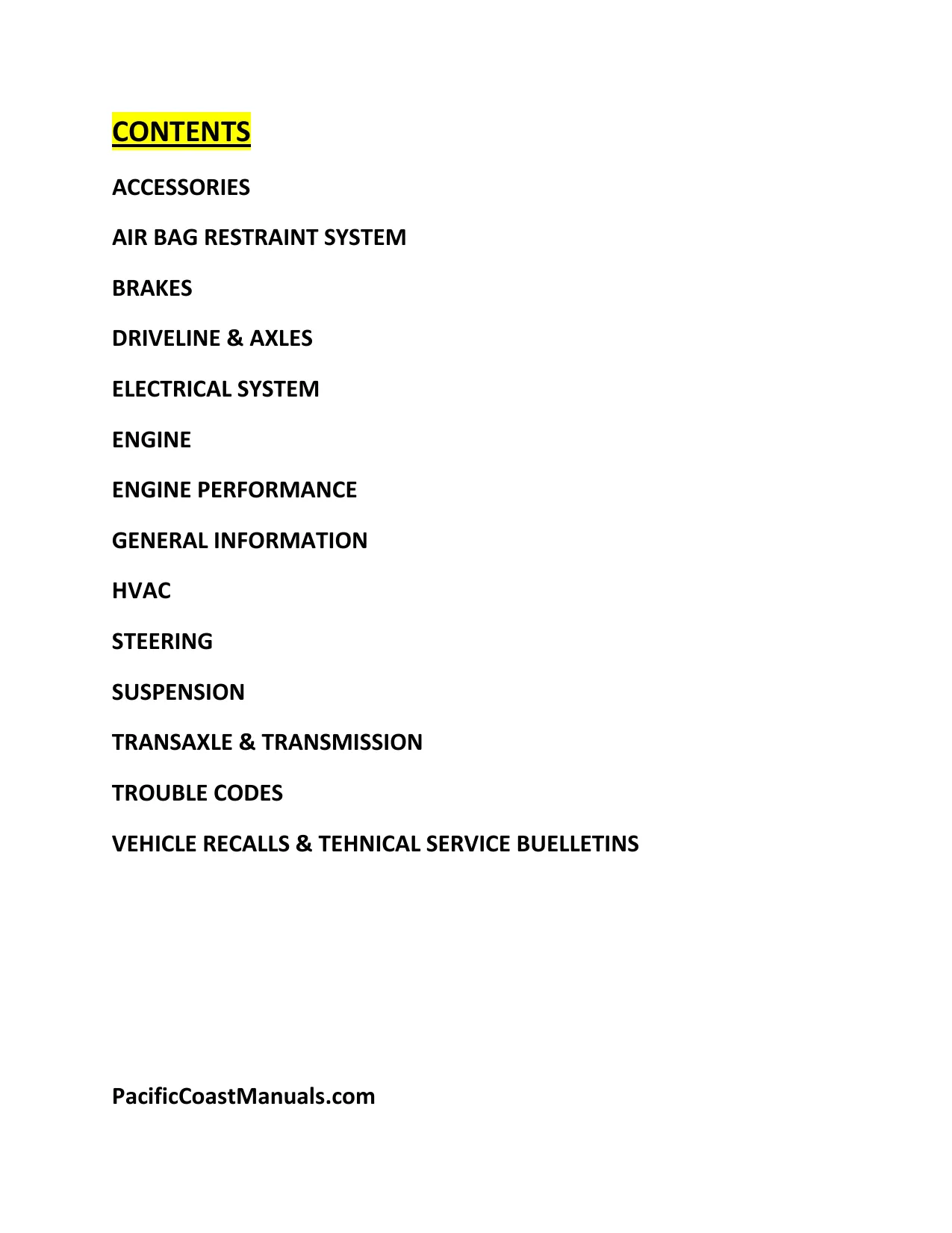

Kia Manual Features & Selected Content Preview

This repair-information compilation is titled 2000–2005 Kia Optima Factory Service Manual on the cover. Its vehicle-specific articles focus on the 2002 Kia Optima LX with 2.4L four-cylinder and 2.7L V6 engines. Selected articles cover 2001–02 ABS, fuse and relay layouts, and automatic transaxle diagnosis and overhaul. The front axle chapter covers 2002–05. The Hi-Scan menu uses the Optima (Magentis) name for transmitter programming. Dedicated Optima EX and market-specific Magentis repair chapters are not included.

PDF Format and Navigation

Search and bookmarks. Article text is searchable. Some specifications, wiring labels, and the standalone trouble-code list are embedded as images. Bookmarks provide chapter navigation, although some open template pages or reference articles for other vehicles. Small wire and terminal labels in the sampled diagrams are legible when zoomed in.

The ZIP download contains one printable English PDF with 3,462 pages and a separate TXT readme. The PDF total includes the cover and contents, 18 template placeholder pages, one visually blank page, repeated articles, and two archived NHTSA reference pages.


Engine, Transaxle, and Electrical Service

These selected topics illustrate the repair and diagnostic coverage. Other articles cover starter testing and generator and regulator service.

  • Engine mechanical: Engine and transaxle assembly removal, cylinder-head and valvetrain service, camshaft and crankshaft inspection, piston and connecting-rod work, and timing belt replacement.
  • Transaxles and clutch: Road tests, torque converter stall and hydraulic pressure tests, valve body and clutch overhaul, differential service, end-play and preload adjustment, and synchronizer inspection.
  • Brakes and chassis: ABS/TCS fault diagnosis, HECU and wheel-speed sensor checks, scan-tool bleeding and actuator tests, disc and drum brake service, steering rack overhaul, and wheel alignment.

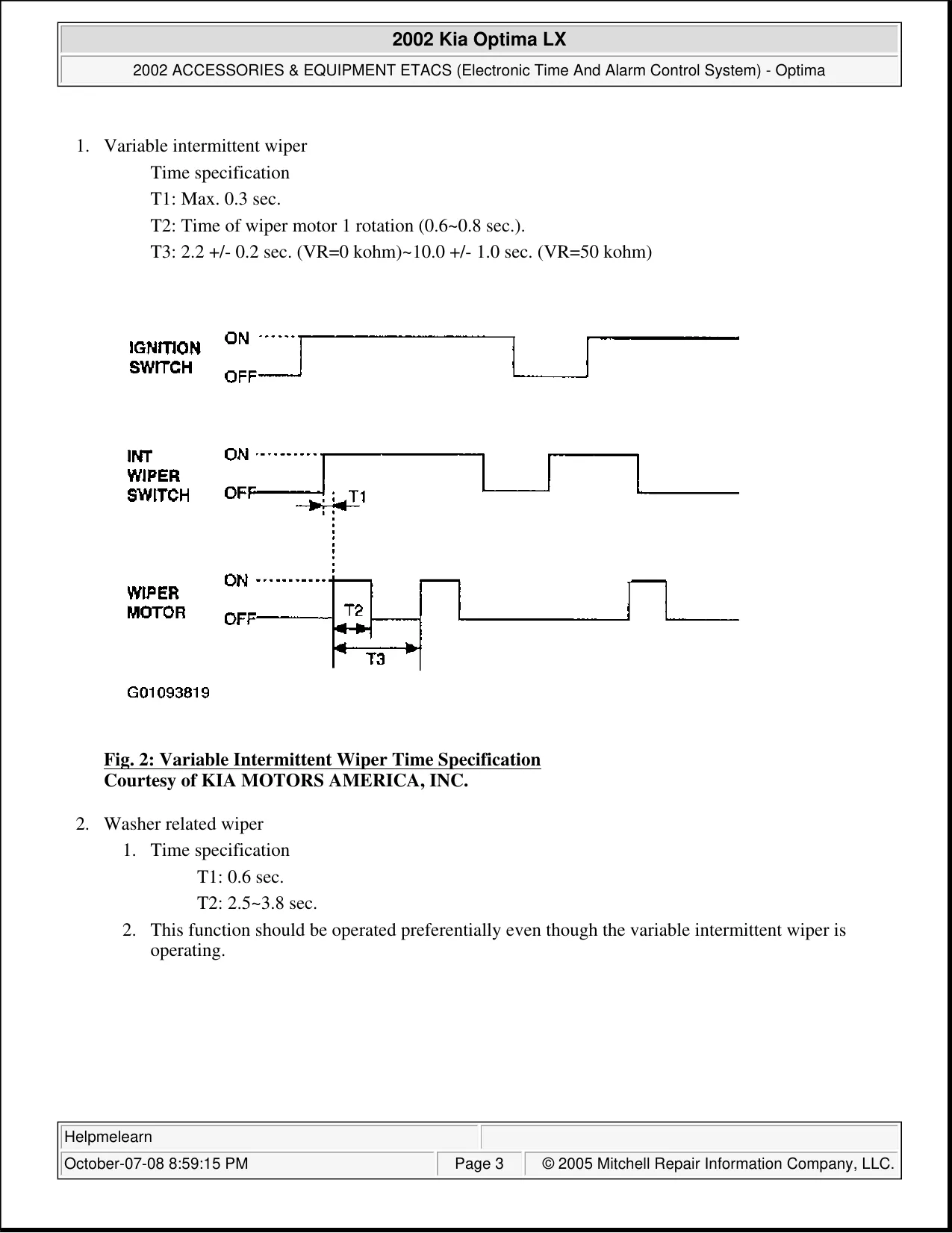

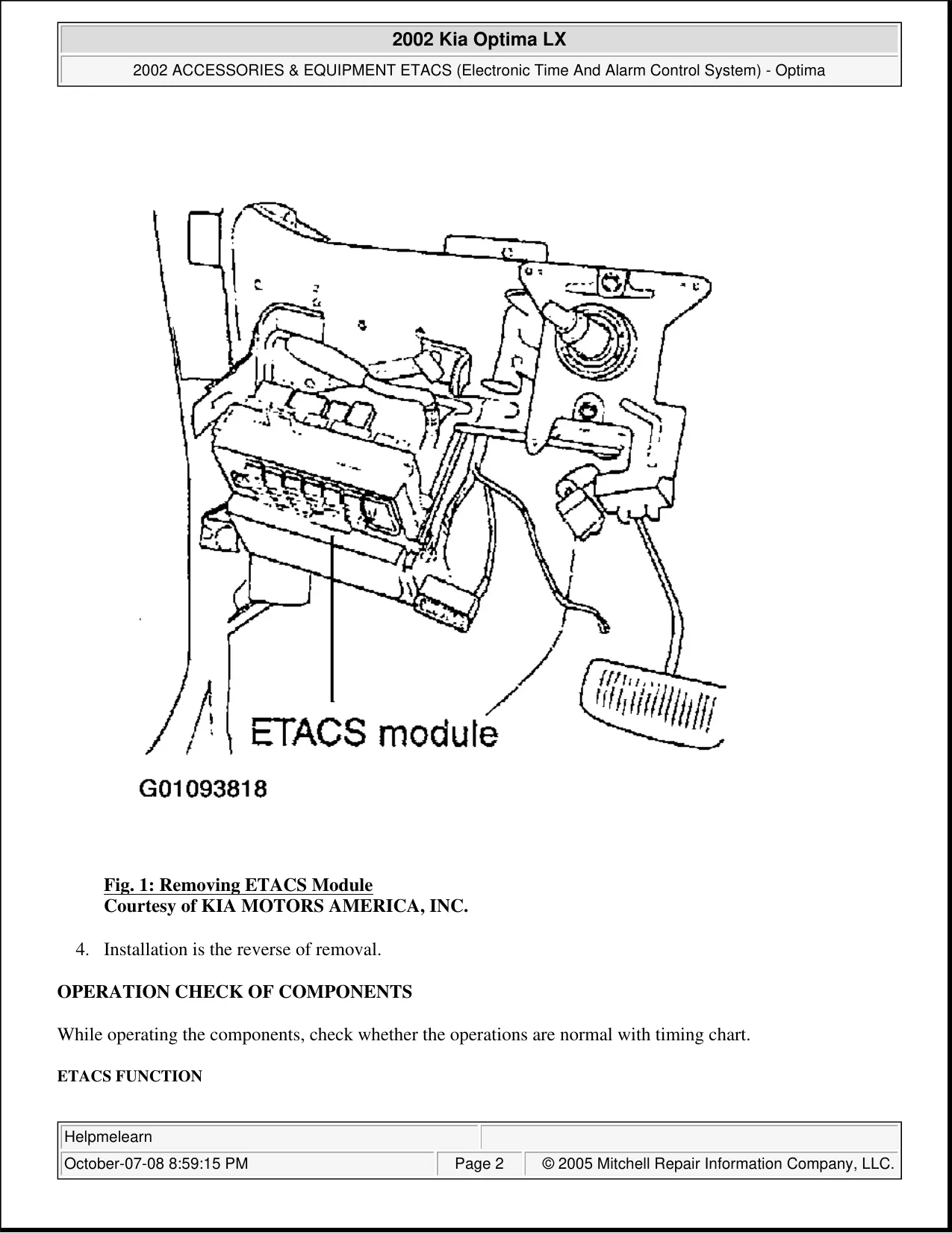

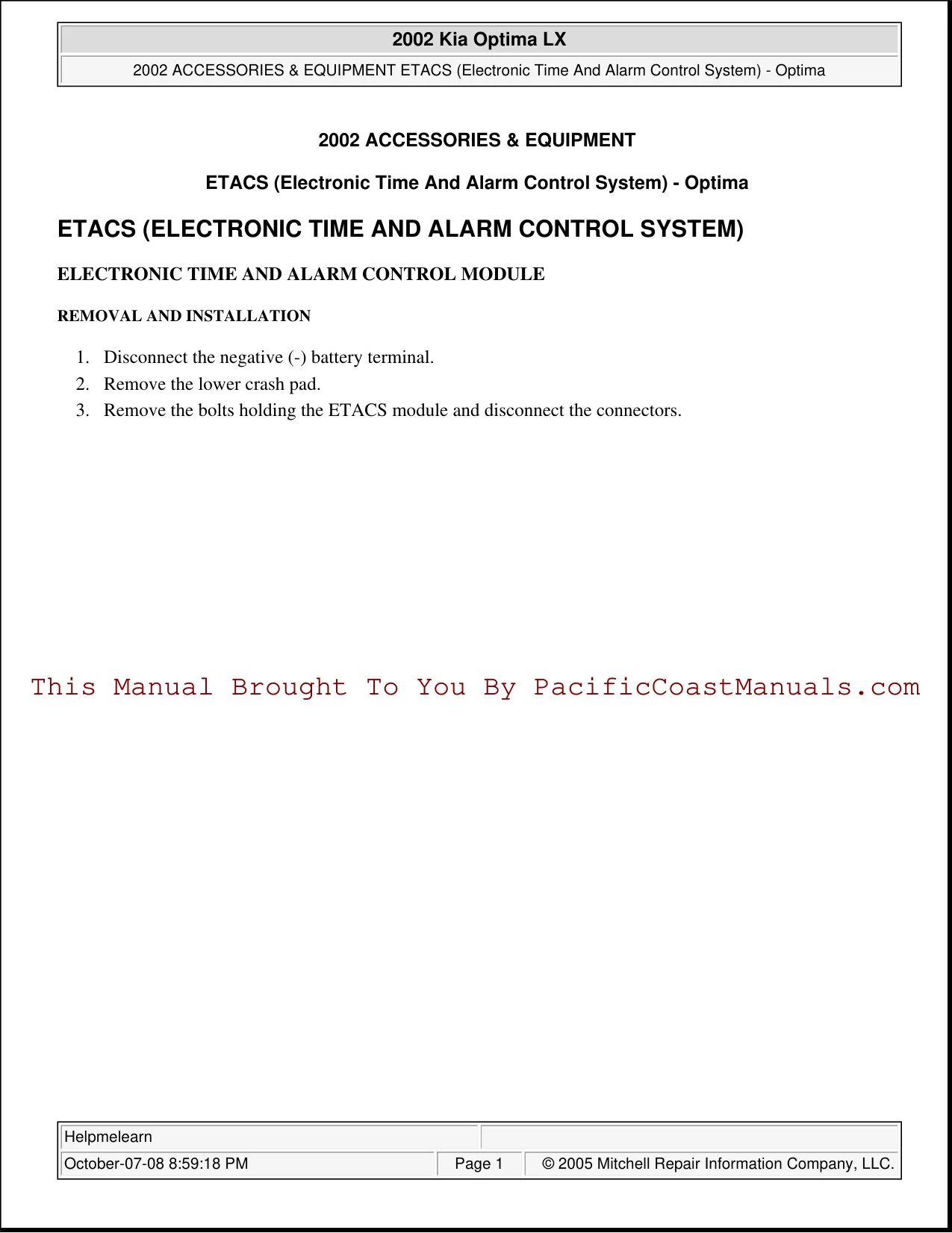

  • Body electrical: ETACS timing checks and module replacement, keyless transmitter programming, anti-theft logic, cruise control diagnosis, and rear window defogger grid repair.
  • Wiring and engine diagnostics: System schematics, connector and terminal views, component and ground locations, and separate 2.4L and 2.7L OBD-II fault tests.
  • Heating and air conditioning: Diagnosis for manual and automatic climate control, plus refrigerant service procedures in the vehicle-specific A/C articles.

The manual is suited to technicians and experienced DIY repairers. For an electrical fault, the wiring diagrams, fuse and relay layouts, and connector views let you trace the affected circuit to its terminals and grounds before testing individual components.

Engine and Front Axle Service

The engine chapters include troubleshooting charts, inspection limits, torque tables, sealant data, and special tool references for lubrication, cooling, intake, and exhaust work. Fuel system procedures cover throttle position sensor adjustment, pump operation and pressure checks, injector and line service, sender and filter replacement, and tank removal. Both timing belt articles warn that turning the camshaft or crankshaft with the belt removed can cause piston-to-valve contact.

The front axle chapter distinguishes the 2.4L B.J.–T.J. assembly for automatic and manual transaxles, the 2.7L manual B.J.–D.O.J. assembly, and the 2.7L automatic A.C.–G.I. assembly. It explains the V6 center bearing and inner shaft and covers boot and joint inspection, disassembly, and reassembly. It also identifies hub holding tool 09517-21500 and warns against loading the wheel bearing with the shaft disconnected or damaging reusable boots on the shaft splines.

Diagnostic Charts, Wiring, and Component Locations

The engine diagnostic articles identify the Hi-Scan Pro/Kia Data Pro tool 0K2A1 189 AA0 / K96 DP KIT and include sensor-range charts, vacuum diagrams, and multi-model tests for symptoms without a stored code. The Optima ECM article provides connector and terminal views. Optima-specific ECM pin-voltage charts are not included. The ABS and transaxle articles use Hi-Scan data, actuator tests, and fault isolation. The standalone Kia code list provides code descriptions, while the system chapters provide the diagnostic procedures.

Diagrams include the anti-theft circuit, HECU inputs and outputs, automatic-transaxle hydraulic circuits by gear position, and cooling fan and A/C condenser fan controls. The body electrical articles also cover daytime running lights, instrument cluster testing, power locks, windows, mirrors, seats, sunroof, horns, and wipers and washers.

Airbag, Suspension, and Bulletin Coverage

The dedicated SRS article applies to the 2002 Kia Sedona. Use the Optima-specific front and rear suspension articles for this vehicle. The general suspension diagnosis insert is for a Hummer H2, and several general reference articles carry Chevrolet headers. The archived NHTSA pages describe recall and bulletin searches.

Torque Converter Stall Test Preview

The F4A42-2 diagnostic article gives a standard stall speed of 2,100–2,900 rpm in Drive and Reverse, with automatic transaxle fluid and engine coolant both at 80–100°C. The diagnostic chart uses the difference between Drive and Reverse results to help isolate clutch or brake slippage.Kia Optima 2000–2005 Service Manual
