2004 JCB Telehandler 540-170, 550-140, 540-140, 550-170, 535-125 Hi Viz, and 535-140 Hi Viz Loadall models Service Manual (P/N 9803/3750-05)

JCB service manual P/N 9803/3750-05 covers the 5A side-engine Loadall telehandlers: 540-170 (5AF), 550-140 (5AG), 540-140 (5AL), 550-170 (5AM), 535-125 Hi Viz (5AN), and 535-140 Hi Viz (5AP).

Searchable PDFs and Section Layout

Text search and diagram detail: Searchable text is available throughout the files. Each PDF has two generic part bookmarks rather than a detailed chapter outline. Small wiring, connector, and hydraulic schematic labels require zooming.

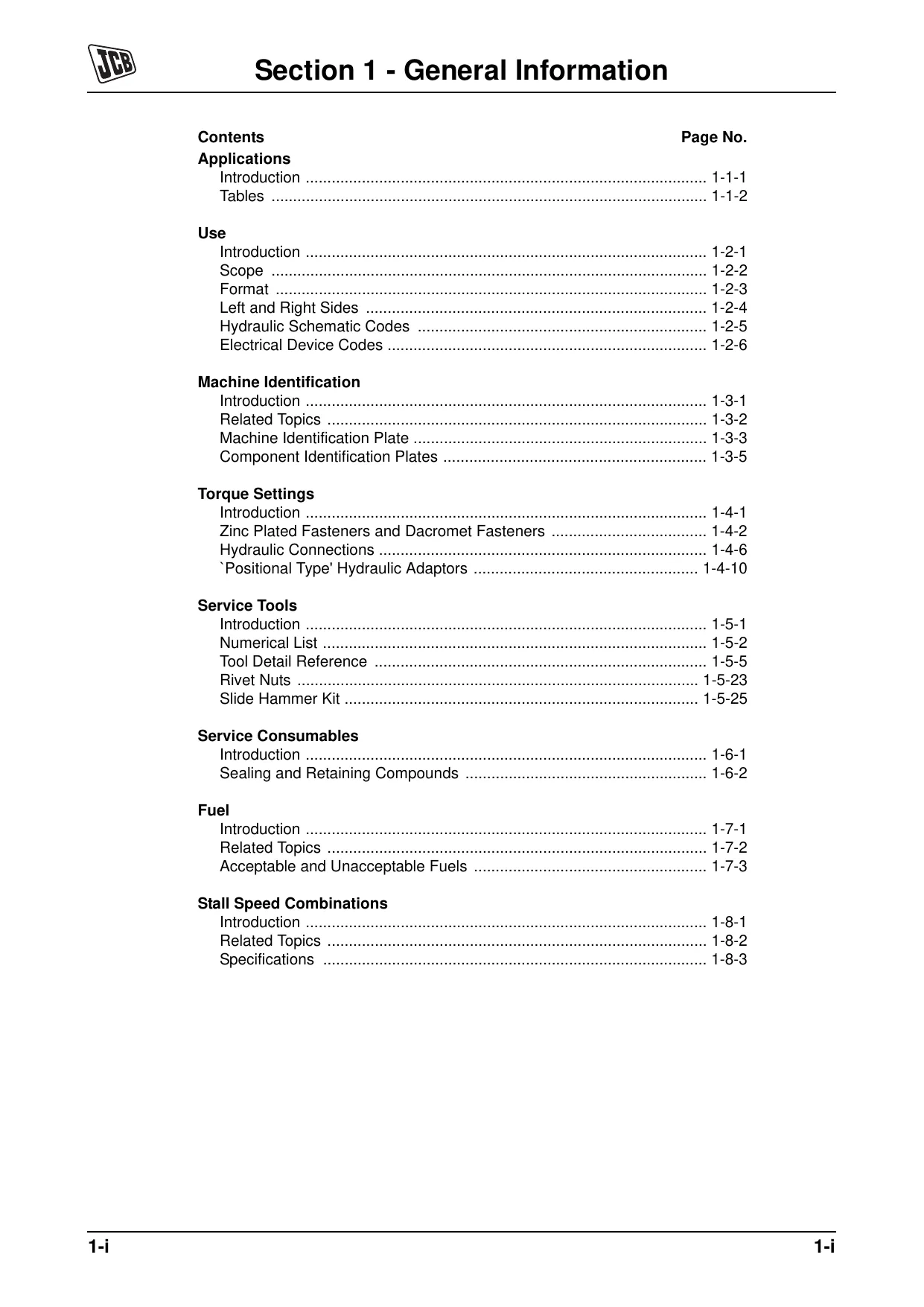

The ZIP contains a 1,665-page manual across 12 printable PDFs: master cover/notes, 2 pages; General Information, 80; Care and Safety, 37; Routine Maintenance, 118; Body and Framework, 186; Electrics, 284; Hydraulics, 250; Transmission, 284; Brakes, 108; Steering, 108; Engine, 106; Electronic Data Systems, 102. The total includes 12 cover pages, 12 notes pages, and 62 intentionally blank pages. The Brakes, Engine, and Electronic Data Systems section covers carry publication number 9803/3750-04.

Boom, Hydraulic, and Powertrain Service

The following selected coverage highlights outline the main repair and diagnostic areas. Additional topics include fuel-tank replacement and speedometer calibration.

• Boom and cab: Step-by-step boom removal and dismantling, wear-pad and shim setup, fork-carriage replacement, cab removal, stabilizer-leg service, and air-conditioning testing and charging.

• Hydraulic systems: Parallel and Parallel Servo circuit operation, pressure and flow tests, bleeding, control-valve and main-pump service, and hydraulic ram maintenance.

• Powershift transmission: PS750, PS750 Mk IV, PS764, and PS760 diagnosis, drive-path analysis, clutch-pressure testing, oil flushing, and gearbox removal and replacement.

• Brakes and steering: Service-brake fault finding and bleeding, parking-brake adjustment and component repair, steering re-phasing, and hydraulic steering-system testing.

• Electrical repair: SD/SF and SE wiring diagrams, production harness drawings, connector tests, wiring-harness repair, charging-system diagnosis, alternator service, and battery testing.

• Monitoring and diagnostics: LMI fault codes and calibration, Loadall Monitoring System diagnosis, CANbus operation, Servicemaster setup, service-hours reset, and electronic-engine diagnostic user guides.

• Maintenance references: Engine-specific service schedules, factory stall-speed combinations, approved-fuel guidance, fluid capacities, component torque tables, and inspection specifications.

Written for JCB distributor service engineers receiving or having completed JCB technical training, the manual assumes familiarity with workshop safety and hydraulic earthmoving equipment repair.

Matching the Machine and Build

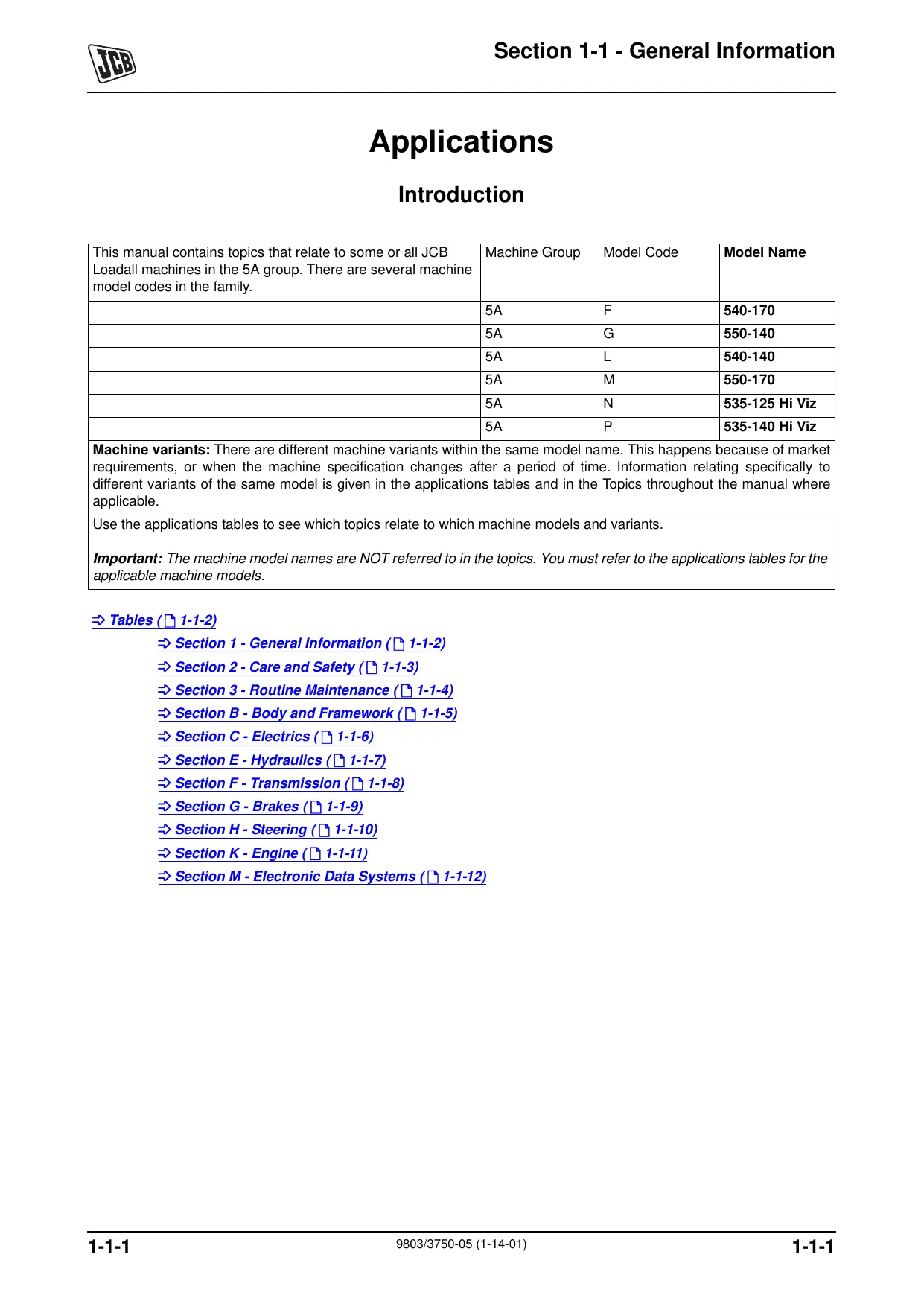

The applications tables connect individual repair topics to the correct machine configuration. They distinguish three- and four-stage booms, dual-lever and servo controls, standard SD80 pivot-sway axles, and Hi Viz trunnion-sway axles. These distinctions help identify the applicable components and procedures before disassembly.

The PIN chapter identifies model, engine, and gearbox configurations and distinguishes the seven-digit machine serial format used before January 2010 from the eight-digit format used afterward.

Electrical harness tables separate pre- and post-November 2008 panel/cab and roof-condenser installations by part number and issue. Hydraulic applications distinguish the six-section control valve used to January 2009 from the five-section unit used from January 2009 on 540-170 and 550-170 machines. The servo S1 schematic identifies an extension-spool change from S/No 1037682.

Engine and Drivetrain Repair Limits

Engine coverage separates mechanical-injection SD/SF installations from electronic common-rail SE builds. It includes start/stop and cold-start diagnosis, starter-motor repair, cooling-pack removal and dismantling, throttle and TPS service, engine/gearbox assembly removal, and engine-to-bevel-box separation.

Full internal engine overhaul requires separate documentation: JCB refers mechanical-engine work to publication 9806/3000 and electronic-engine work to 9806/3030. Neither engine manual is included.

Transmission coverage addresses system operation, hydraulic and electrical controls, fault isolation, pressure testing, switches, solenoids, and unit replacement. Internal axle, gearbox, and bevel-box dismantling procedures are referred to the separate Transmissions Service Manual, 9803/8610.

The gearbox installation instructions warn against drawing the gearbox and torque-converter housing together with the housing bolts, which can damage the pump-drive engagement and oil seal.

Hydraulic, LMI, and Electrical Details

Hydraulic component topics cover extension, lift, tilt, sway, and stabilizer rams, plus twin displacement-ram removal and replacement. The single displacement-ram removal entry is marked TBA. Main-pump and ram-maintenance sections include dismantling, inspection, and assembly procedures.

The three-stage boom section explains how incorrect hose lengths or loss of synchronization between boom sections can damage the telescopic service hoses.

LMI coverage includes display and transducer tests and calibration charts for the listed 535/540 variants. Test-weight entries for the 550-140 and 550-170 are marked TBA. North American machines were not normally fitted with LMI.

The SE Engines (S3) schematic sheets and component keys are marked TBA. CANbus operation and diagnostic connections are explained, but the dedicated CANbus electrical schematic entry is also marked TBA.

Diagrams, Tools, and Workshop References

Named references include SD/SF and SE engine schematics, Electrical Harness Interconnections and Drawings, Parallel and Parallel Servo hydraulic schematics, PS750/PS764 drive-path charts, the LMI Wires and Connectors diagram, and Loadall Monitoring connector views.

The reference material includes zinc-plated and Dacromet fastener tables, hydraulic connection torques, positional-adapter guidance, hydraulic schematic color codes, electrical device codes, and machine/component identification tables.

Special-tool references include hydraulic pressure test kit 892/00253, LMI test box 892/00905, data-link adaptor kit 892/01174, torque-converter alignment tool 892/00893, and engine lifting bracket kit 320/20050.

Before repair work begins, follow the OEM machine-safe procedures for parking, fitting the boom safety strut, venting hydraulic pressure, disconnecting the battery, and controlling contamination around the SE common-rail fuel system.

Examples of Boom Clearances and Converter Inspection Data

For the 550-140 and 540-140 three-stage boom P1 configuration, the wear-pad tables specify maximum vertical and side clearances of 3.0 mm at the front and 1.5 mm at the rear.

The torque-converter replacement section specifies a maximum drive-shaft runout of 0.38 mm (0.015 in), measured with a dial test indicator while rotating the converter.
