Suzuki LT230S & QuadSport 230 1986–1990 Factory Service Manual (P/N 99500-42034-01E)

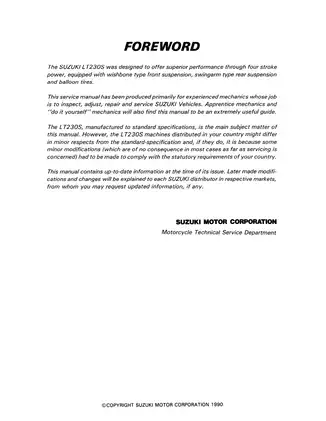

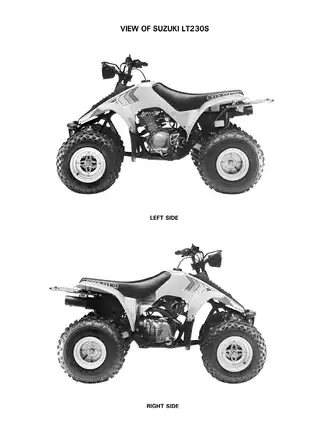

This 249-page PDF is Suzuki's fifth-edition LT230S Service Manual, Part No. 99500-42034-01E, issued in October 1990 from a first edition dated May 1985. It combines the base LT230S/LT230SF service material with model-specific update sections for the LT230SG ('86 model), LT230SH ('87 model), and LT230SJ ('88 model). Suzuki states that the manual was produced primarily for experienced mechanics; apprentices and capable DIY mechanics can also use it as a guide, although internal engine, brake, and chassis repair assumes suitable shop tools and measurement skills.

• Engine and transmission repair: Covers oil-pressure testing, engine removal and remounting, disassembly, component inspection, and reassembly. Dedicated procedures address the cylinder head, valve guides and seats, camshaft and timing chain, piston and crankshaft, wet multi-plate clutch, five-speed-plus-reverse transmission, shift mechanism, kick starter, and oil pump.
• Fuel, lubrication, and electrical systems: Explains the Mikuni VM26SS carburetor's slow, main, starter, and float circuits, followed by removal, inspection, float-height adjustment, and reassembly coverage. The electrical section includes PEI/CDI ignition, magneto and coil checks, lighting, switch-continuity tests, and model-specific wiring.
• Chassis and hydraulic brake service: Details front wheel and tire work, brake-pad replacement, caliper and master-cylinder repair, system bleeding, steering and double-wishbone front suspension, toe-in adjustment, rear brake service, swingarm inspection, and rear axle/axle-housing removal and reassembly.
• Model-year update procedures: The 1986 section adds revised piston-ring positioning and loaded toe-in setup. The 1987 supplement covers changed drive-chain adjustment, tire data, switch tests, rear-brake construction, and a revised rear axle housing. The 1988 section identifies crankshaft oil-jet, oil-pump rotor, oil-pump driven-gear, drive-chain, and axle-housing changes.
• Diagnostic and visual reference: Includes engine, fuel, electrical, chassis, and brake troubleshooting charts, plus base, LT230SG, and LT230SH wiring diagrams. Useful visual references include carburetor circuit diagrams, the engine lubrication-flow diagram, valve-timing diagram, wire/cable/hose routing views, and rear axle-housing reassembly drawings.
• Factory specifications and tooling: Provides assembly-specific torque tables, service limits, wear and clearance data, carburetor specifications, electrical test values, fluid and lubricant data, and a dedicated special-tool list with Suzuki part numbers.

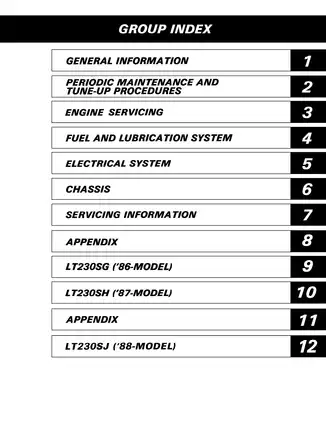

How the Model-Year Supplements Fit Together

Coverage is cumulative rather than three stand-alone mini-manuals. The LT230SG section records only the service data and specifications that differ from the LT230SF baseline and directs the reader back to Sections 1-8. The LT230SH section builds on the earlier groups, while the LT230SJ section contains only the changes from the 1987 SH model and updated SH information. This structure keeps the full repair sequence in one volume, but the year-specific sections must be read together with the base procedures.

The standard-specification machine uses a 229 cc air-cooled OHC four-stroke single, primary kick starting, a five-forward/one-reverse constant-mesh transmission, independent double-wishbone front suspension, a swingarm rear suspension, and hydraulic disc brakes. The manual also notes that minor country-market differences may exist. One important configuration change appears in the 1987 specifications: the SH model uses foot-lever operation for reverse, replacing the earlier hand-lever arrangement.

Early/Late Parts and Factory Reference Data

The appendices document production changes that matter when ordering parts or rebuilding an engine. They identify an updated clutch sleeve hub and clutch plates effective from Engine No. 104361, a piston and piston-pin circlip change from Engine No. 106356, and a revised crankshaft assembly with added washers from Engine No. 145024. Early/late part numbers, supply notes, and interchangeability tables are included.

Special-tool coverage is equally specific. Examples include the 09920-13120 crankcase separating tool/crankshaft remover, 09930-31940 rotor remover set, 09916-14510 valve spring compressor, and the 09940-92410 rear axle nut wrench used in the SH axle procedure. The troubleshooting tables pair symptoms with likely causes and remedies instead of providing specifications alone.

Manual-Specific Repair Cautions

Suzuki warns that the oil-pump case screw is secured with threadlocker and may be damaged if the pump is opened; the pump is supplied only as a complete unit. During top-end assembly, the cam chain must remain correctly located to avoid trapping it between the drive sprocket and crankcase, while the brake-caliper section warns that excessive air pressure can damage the piston.

Brake and chassis procedures involve supporting the ATV, compressed air, and hydraulic-fluid bleeding. Proper support equipment, workshop tools, and normal professional safety practices are required.
