JCB JS200–JS260 Excavator Service Manual, 2004 (P/N 9803/6510-03)
824 Pages • ZIP Download: 10 Printable PDFs (English)
JCB Models Covered & Key Technical Specifications
Models: JS200, JS210, JS220, JS240, JS260
Models & Model Codes:
JS200 — JS200NC, JS200SC, JS200LC
JS210 — JS210LC
JS220 — JS220NC, JS220SC, JS220LC; 220LR (long-reach dimensional data)
JS240 — JS240SC, JS240NC, JS240LC
JS260 — JS260SC, JS260NC, JS260LC; 260LR (long-reach dimensional data)
Sub-models / Variants: LC, 235HD (JS235HD; model-specific dimensional, weight and maintenance data)
Model Year: 2004
Engine variants: Isuzu 6BG1 (BB-6BG1TRB-06) — technical data for JS200/JS210/JS220 and JS240/JS260. Isuzu BB-6BG1T-S — JS200/JS210/JS220 hydraulic schematic up to serial number 1202887.
Travel transmission: Automatic two-speed hydraulic track motors with reduction gearboxes — JS200/JS210/JS220 and JS240/JS260.
Serial Numbers: Electrical schematics, main hydraulic schematics and eight-spool solenoid-valve procedures — JS200/JS210/JS220: up to and including 1202887 / from 1202888; JS240/JS260: up to and including 1040099 / from 1040100.
Servo Diagram Serial Breaks: Servo-line and servo pressure/return drawings — JS200/JS210/JS220: up to and including 1202888 / from 1202889; JS240/JS260: up to and including 1040099 / from 1040100.
-
Hydraulic system capacity: 200–241 liters
-
Fuel tank capacity: 343 liters
-
Cooling system capacity: 25.5–26.8 liters
-
Engine oil capacity: 21.5 liters
-
Slew gearbox oil capacity: 5–6 liters
-
Track gearbox oil capacity: 2 x 4.7 liters
-
Electrical system: 24V
JCB Manual Features & Selected Content Preview
This 2004 JCB Service Manual, P/N 9803/6510-03, covers tracked JS200, JS210, JS220, JS240, and JS260 excavators. Model-specific tables also identify the JS235HD where applicable.
Text Search, Bookmarks and Schematic Detail
Search and drawing detail: Body text is searchable across the section files, but some drawing labels are not searchable. Each PDF has two generic part bookmarks with limited navigation detail. Dense schematics require zooming; some small lettering in the later electrical schematic remains difficult to distinguish, and some hydraulic lines are faint.

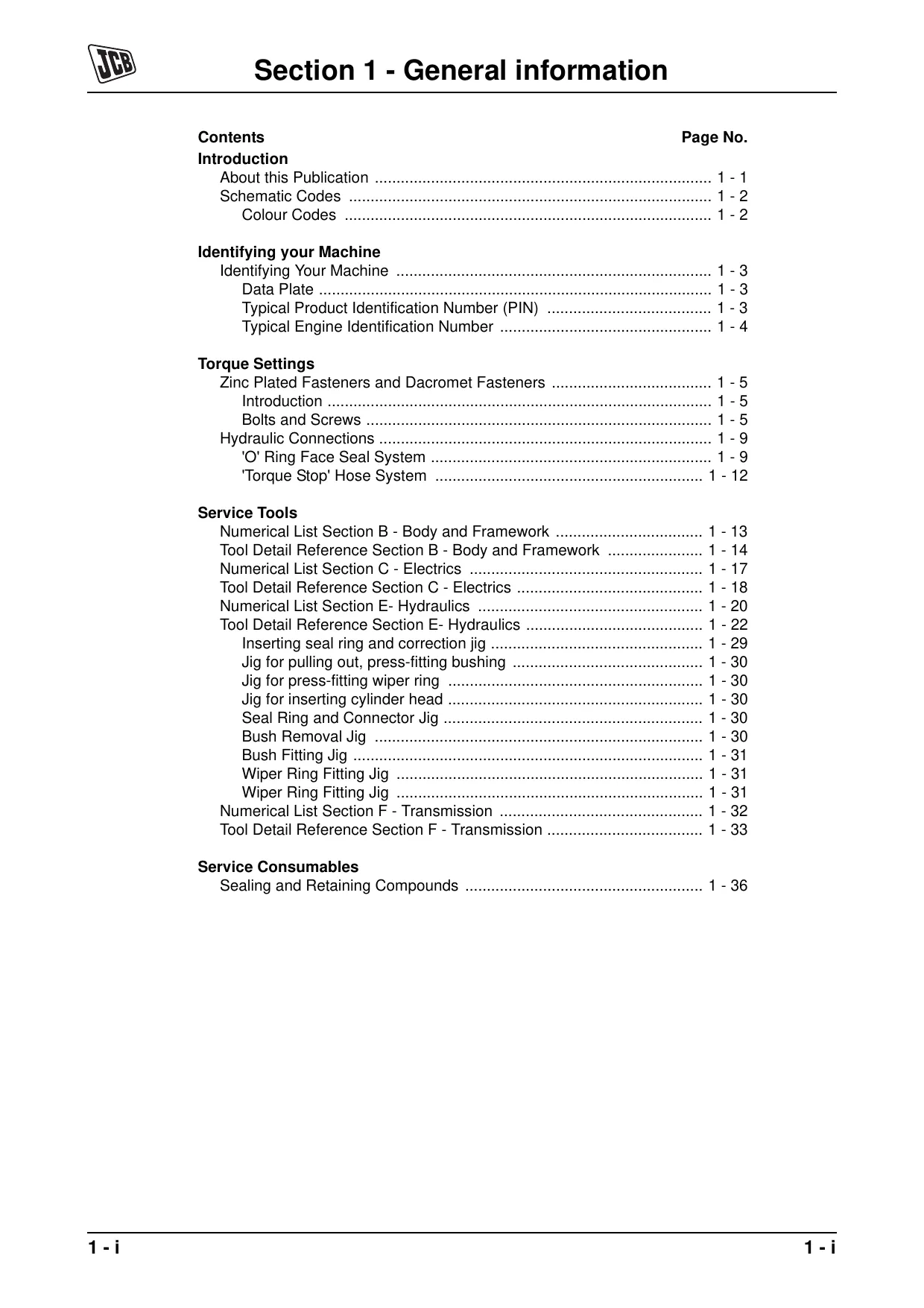

The 824-page manual is supplied as a ZIP containing ten printable English PDFs: front cover, 2 pages; General Information, 40; Care and Safety, 18; Routine Maintenance, 82; Body & Framework, 57; Electrics, 231; Hydraulics, 307; Transmission, 41; Track and Running Gear, 40; and Engine, 6. These counts include the cover, section title pages, contents pages, and blank pages.
Hydraulic Repair, AMS Diagnosis and Running-Gear Service
The following highlights are a selection of the manual’s contents. Other covered topics include battery servicing and the refueling-pump circuit.
-
Hydraulic repair: Step-by-step pump and regulator dismantling, pilot-valve service, slew-motor and reduction-gear repair, rotary-coupling overhaul, and hydraulic-ram disassembly, reassembly, and reconditioning.
-
Electrical diagnosis: Advanced Management System troubleshooting, throttle calibration, ECU input/output testing, wiring-harness repair, connector data, and JCB Service Master setup, logging, and programming procedures.
-
Travel and undercarriage: Automatic two-speed track-motor and reduction-gearbox repair, idler and recoil-unit removal, sprocket and roller service, track tension, inspection, and wear limits.
-
Cab and maintenance: Air-conditioning fault finding and component removal, cab structure and glazing procedures, service schedules, approved lubricants, system capacities, FOPS checks, and machine-specific fastener data.
-
Drawings and specifications: Serial-specific wiring and hydraulic schematics, harness-location views, functional oil-flow diagrams, test charts, torque tables, pressure-test data, electrical checks, clearances, and wear specifications.
-
Engine scope: Routine service and Isuzu 6BG1 / BB-6BG1TRB-06 technical data are included. Internal engine repair requires the separate Tier 2 Engine Service Manual, P/N 9806/2210, which is not included.

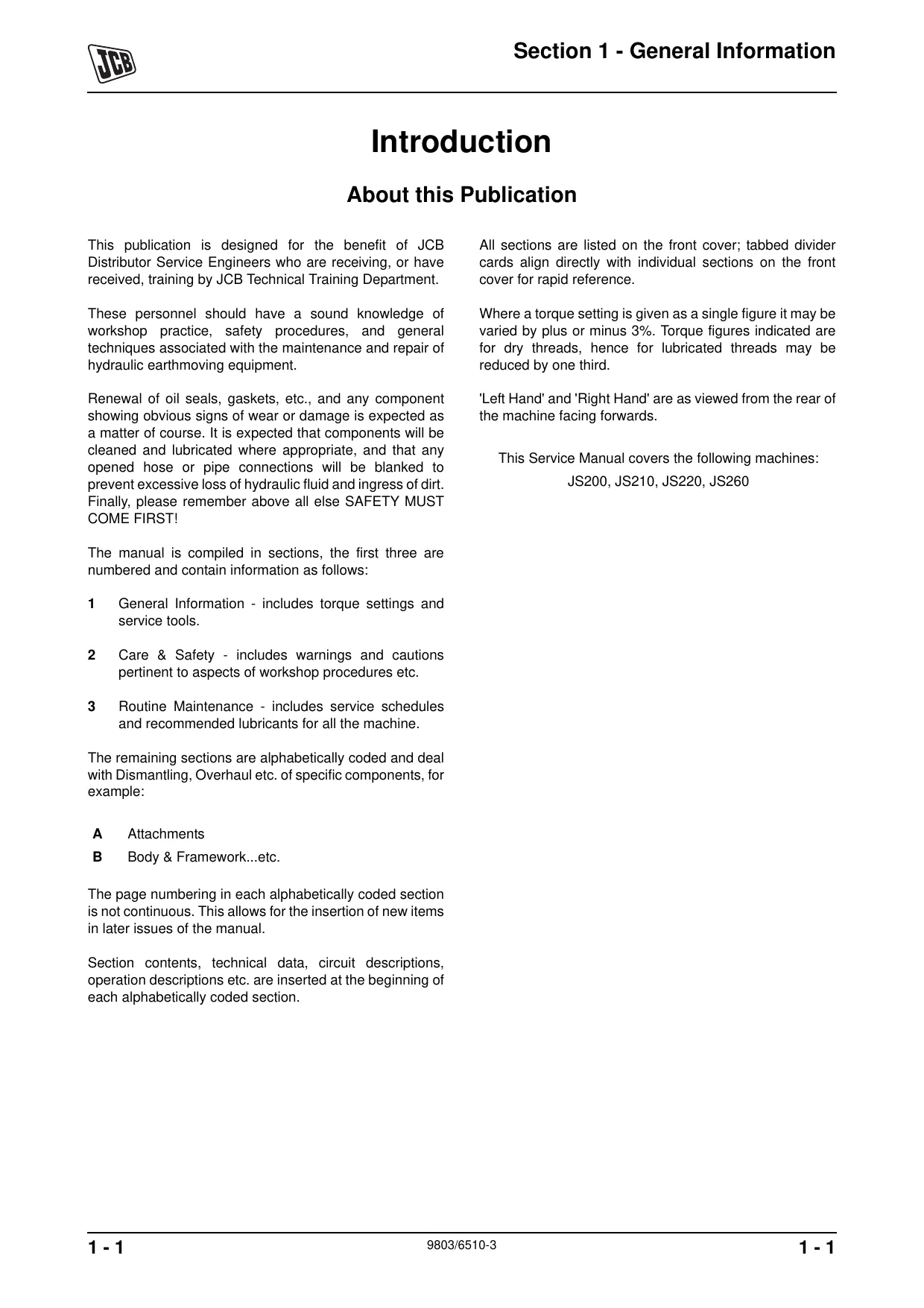

This manual is written for JCB Distributor Service Engineers with JCB technical training and a sound working knowledge of workshop practice, safety procedures, and hydraulic earthmoving-equipment repair.
Build Configurations and Serial-Specific Circuits
Configuration data: Tables distinguish SC, NC, and LC undercarriages, monoboom and triple-articulated-boom builds, and the applicable dipper and track-shoe combinations. JS235HD appears in dimensional, weight, and maintenance data; JS220LR and JS260LR entries provide long-reach dimensional information.
Attachment controls: Optional circuits cover quick hitch, hammer/auxiliary flow, grab/rotate, and scrap magnet. Other circuits address overload/HBCV and cushion functions, boom-down delay, slew/boom priority, three-speed travel, SAE/ISO changeover, and dozer or TAB controls where applicable.
Serial breaks: Electrical and main hydraulic schematics and eight-spool solenoid-valve procedures divide JS200/210/220 machines at 1202887/1202888 and JS240/260 machines at 1040099/1040100. Servo-line and servo pressure/return drawings instead divide JS200/210/220 machines at 1202888/1202889. These distinctions matter when matching a schematic or test procedure to the machine in the shop.
AMS Controls and Service Master Diagnostics
Control logic: The electrical chapter explains pulse-width modulation, ECU power and output drivers, and engine-throttle functions including auto boost, reverse-rotation prevention, automatic warm-up and idle, and limp mode. Separate circuits cover pump-mode control, servo isolation, slew lock, and warning logic.
Diagnostic applications: HPSetup covers vehicle configuration and attachment settings; HPDataLogs covers operating records and service-history handling. FLASHECU documents software loading, while the diagnostic application displays live circuit states through the data-link adaptor. EMS message explanations and diagnosis without the electronic service tool are also included.
Electrical references: The ECU1/EMS/fascia power-supply and network drawing sits alongside main, fascia-link, and cab harness connector-location views for tracing connections between controls and components.
Hydraulic Operation, Testing and Repair Depth
Circuit descriptions trace main and servo flow through neutral, straight-line travel, and boom, dipper, and bucket operation. Named drawings include hydraulic and servo pressure/return schematics, Straight Line Travel, and boom/dipper oil-flow diagrams. Separate explanations cover priority, slew, merged-flow, hammer, cushion, and auxiliary operation.
Fault-isolation tests: Procedures address negative-control and maximum-flow signals, pump pressure and horsepower control, main-spool operation, hose-burst check valves, track-motor relief and drain flow, pump flow, slew-bearing checks, and ram creep. Symptom-based test selections address slow or underpowered services, harsh operation, tracking deviation, and poor tractive effort.
Pump and ram scope: Pump dismantling instructions include wear inspection and assembly-replacement notes for rotary groups, the servo pump, relief valve, and proportional pressure-reducing valve. Ram chapters distinguish early and later construction and include reconditioning jigs. The ram-creep procedures specify a standard empty bucket and exclude rams fitted with hose-burst protection valves.
Travel-Motor Operation and Cab Work
High- and middle-speed track-motor flow views explain travel-speed selection, counterbalance-valve operation, and parking-brake action. Running-gear procedures also cover grease-cylinder removal, dismantling, and assembly.
The HVAC section treats the heater and air-conditioning unit as a complete module for removal and replacement. Refrigerant-system work requires a refrigeration engineer or suitably trained person.
Workshop Data, Tools and Repair Cautions
Fastener tables distinguish zinc-plated, Dacromet, and metric-grade hardware. Component sections add hydraulic-connection torques, ram dimensions, and running-gear wear limits.
Service equipment: References include Electronic Service Tool Kit 892/01174, Ram Piston Nut Removal/Fitting Rig 993/99525, and pressure gauges 892/00279 and 892/00346. Track-gearbox tools include Ring Nut Tool SST0040 and Planet Gear Tool SST0041. The tools and diagnostic software themselves are not supplied.
Pump-replacement notes flag coupling-bevel orientation and warn that trapped air can damage the pump. The FLASHECU section warns that interrupting a programming write can corrupt code already stored in the module.
Before opening hydraulic lines or working around raised structures, lower or securely support the equipment, isolate the machine, relieve stored pressure, and follow the manual’s lifting and component-specific safety instructions.
A Preview of Solenoid and Valve-Clearance Data
For the proportional pressure-reducing valve, the electrical specifications list a rated current of 800 mA and coil resistance of 13.5 ± 0.7 Ω at 20°C.
The BB-6BG1TRB-06 engine tables specify cold valve clearance of 0.40 mm for both inlet and exhaust valves.
