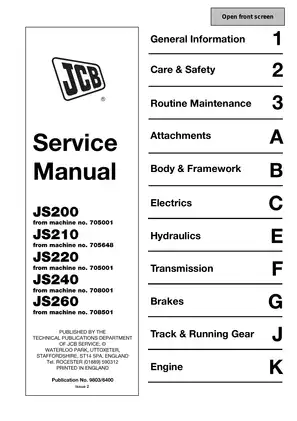

2006 JCB JS200, JS210, JS220, JS240, and JS260 Tracked Excavator Service & Repair Manual (P/N 9803/6400)

• Covers 1998–2005 JCB JS200, JS210, JS220, JS240, and JS260 tracked excavators, including LC variants
• Official JCB publication P/N 9803/6400, Issue 2
• Contains 531 pages featuring detailed technical specs, torque tables, fluid capacities, and schematic diagrams
• Details core maintenance data specifically for the 705xxx–708xxx series machine population
• Explores the Advanced Management System, Isuzu 6BG1T diesel engines, rotary couplings, track gearboxes, and slew motors
• Features electrical wiring diagrams, pilot control line hose connection diagrams, main schematic hydraulic circuits, and fault-finding flow charts

Maintenance Data and Technical Specifications

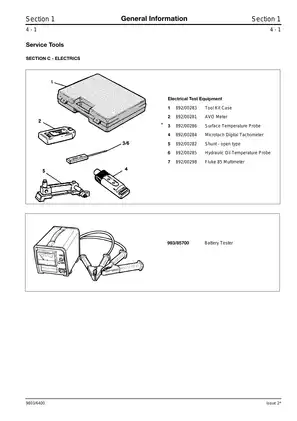

When servicing 1998–2005 JCB excavators, having precise factory data is non-negotiable. Publication No. 9803/6400 (Issue 2) delivers exactly that. Designed originally for authorized distributor personnel, this 531-page PDF reference provides the engine, hydraulic, transmission, and structural maintenance parameters required to effectively service the JS200 through JS260 series. This specifically includes machines falling within the 705xxx to 708xxx serial number ranges. A major advantage for independent shops is gaining direct access to the Advanced Management System (A.M.S.) self-test functions and CAPS II diagnostic codes. Having the exact factory sensor resistance values and electrical test parameters on hand allows mechanics to confidently repair complex electronic malfunctions without outsourcing to expensive heavy-equipment dealerships.

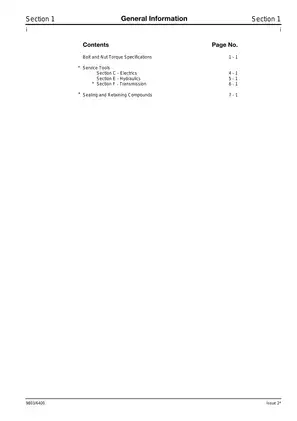

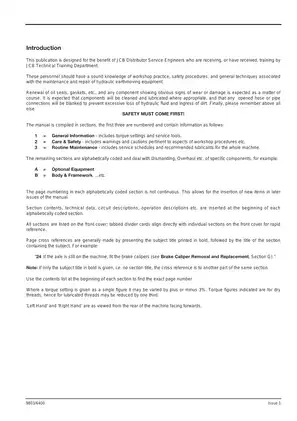

The documentation is split logically to speed up shop workflow. Primary numbered sections handle general machine information, safety protocols, and routine service intervals for fluids and filters. Following those, alphabetical sections dive deep into specific subsystems like track assemblies, electrical descriptions, and complete transmission overhauls.

Step-by-Step Procedures and Diagnostic Visuals

The manual empowers mechanics to tackle high-level tasks independently, detailing step-by-step troubleshooting procedures for bleeding air from the hydraulic pump, safely extracting the ram piston head nut using a dedicated dismantling rig, and performing direct glazing for cab window glass replacement. To accurately route fluids and trace circuitry, technicians can rely on a comprehensive suite of visuals, including electrical wiring diagrams, pilot control line hose connection diagrams, component location diagrams, P-Q line charts, and fault-finding flow charts.

When dealing with these particular excavators, certain service pitfalls can complicate a fix. For instance, replacing the throttle motor linkage without completing the mandatory A.M.S. automatic adjustment protocol will trigger an out-of-step synchronization error, defaulting the monitor to a "0000" clock display. Additionally, failing to remove the air bleed plug before adding grease to the slew gearbox can severely damage the inner seal due to a sudden build-up of internal pressure.

Fluid Capacities and Torque Reference Values

Instead of relying on inaccurate estimates for fluid levels across different configurations, mechanics can quickly reference the standardized capacities detailed for this entire machine family. The hydraulic system takes 203 liters, engine lubrication requires 21.5 liters, and the coolant system holds a total of 25.5 liters.

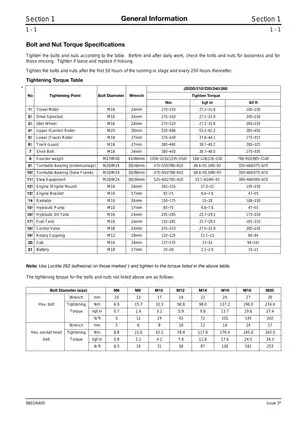

You will also find comprehensive service tables outlining critical fastener torque settings. A prime example is the heavy-duty counterweight bolts, which require a strict 1058 to 1235 Nm tightening range to ensure structural integrity. Keep in mind that heavy machinery maintenance presents inherent crush risks and high-pressure fluid hazards. Always strictly adhere to the designated safety protocols, pressure relief procedures, and load-bearing guidelines detailed in the early chapters before initiating any component teardowns or routine servicing.
