1998–2003 JCB JS200LC, JS240LC, JS300LC & JS450LC Excavator Service & Repair Manual (P/N 9803/6200)

JCB service manual P/N 9803/6200 covers the 1998–2003 JS200LC, JS240LC, JS300LC, and JS450LC excavators in LC (long carriage) configurations. It combines routine maintenance, hydraulic diagnosis, component repair, and electrical reference material, with model-specific procedures and serial-number distinctions.

• Hydraulic diagnosis: Fault-finding charts, pressure tests, main and auxiliary relief-valve adjustments, and model-specific circuit diagrams.

• Pump and valve repair: Main hydraulic pump disassembly and reassembly, rotary coupling service, servo hand control valve inspection, and JS200LC main control valve work.

• Drive systems and brakes: Track gearbox and swing gearbox procedures, hydraulic motor inspection, and parking-brake fault finding.

• Rams and running gear: Boom, dipper, and bucket cylinder service, track-tension adjustment, and idler, sprocket, and roller inspection.

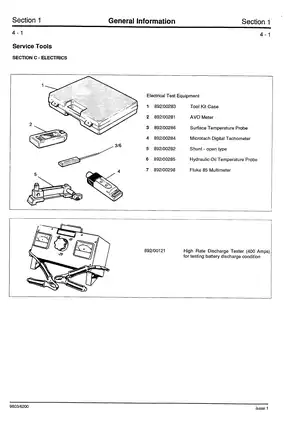

• Electrical testing: Systems control monitor documentation, wiring diagrams, controller pin connections, sensor reference data, and battery high-rate discharge tests.

• Engine and attachment maintenance: Fuel-system bleeding, cooling-system service, lubrication requirements, and rockbreaker flow calibration.

The component-overhaul sections are suited to experienced heavy-equipment technicians with hydraulic test equipment and lifting facilities, particularly where pump regulator adjustment and internal gearbox work are involved.

Hydraulic Diagnosis and Component Repair

The fault-finding charts connect symptoms such as slow actuator movement or poor travel performance with possible causes and checks. Used alongside the hydraulic circuit diagrams and pressure-test sections, they support fault isolation before a pump or valve is dismantled.

Pump coverage extends to internal rotary groups and regulators, with inspection criteria and reassembly information organized by model. Rotary coupling resealing and servo hand control valve inspection are separate procedures; the main control valve dismantling instructions apply to the JS200LC.

Boom, dipper, and bucket ram sections include seal replacement, cylinder bore, rod diameter, and stroke data, plus component-specific torque settings. The tooling section identifies hydraulic test gauges, while the ram procedures reference service rig P/N 993/99525.

Servicing high-pressure hydraulics and heavy chassis components involves significant physical risk. Follow the manual’s safety precautions before starting this work.

Track Drives, Swing Gearboxes, and Running Gear

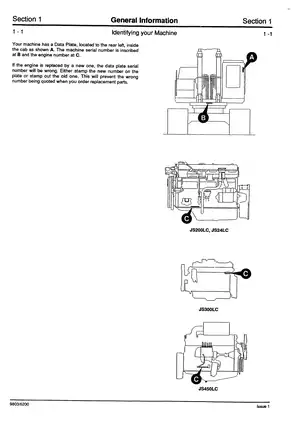

Serial-number limits matter: JS200LC track gearbox dismantling and assembly cover machines up to 704597. For machines from 704598 onward, the manual directs readers to JCB Service instead of providing those procedures.

The JS240LC track gearbox chapter contains dismantling and assembly instructions, but does not include the distance-piece and thrust-washer selection procedures. The JS450LC chapter provides bearing-preload and shim-selection information.

Swing motor service covers the JS200LC, JS240LC, and JS300LC; swing gearbox overhaul sections cover the JS200LC, JS300LC, and JS450LC.

Undercarriage work includes roller wear checks and grease-cylinder resealing. Recoil-unit removal is described, but internal spring-unit repair is excluded.

The JS200LC swing gearbox lubrication instructions warn that pressure trapped during grease replenishment can damage the inner seal.

Control Monitor, Wiring, and Circuit References

The SMCU-1 Controller Block Diagram, Monitor Display Block Diagram, and Controller Plug Pin Connections support the electrical wiring diagrams. Input/output descriptions and sensor reference values explain the relationships between the controller, monitor, and machine functions.

JS200LC hydraulic diagrams distinguish the earlier circuit from the circuit used from machine number 704075. Electrical diagram keys identify connector changes on the covered models; JS200LR coverage is limited to auxiliary electrical-circuit references.

Routine Maintenance and Engine-Service Boundaries

Component Location Diagrams and engine lubrication charts complement the fluid-capacity and maintenance tables. Service topics include water-separator draining, fuel bleeding, coolant replacement, belt adjustment, and JS450LC centrifugal oil-filter cleaning.

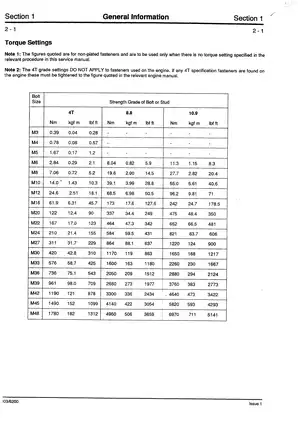

Rockbreaker use has its own maintenance considerations and flow-adjustment information. General fastener torque tables and sealing and retaining compound references support the component procedures.

The fuel-system instructions warn that running the engine with air remaining in the system can damage the fuel injection pump.

Engine scope: This publication supplies engine specifications and routine maintenance. Internal engine repair requires separate engine service manuals: 9803/6910 for JS200LC/JS240LC, 9803/6930 for JS300LC, and 9803/6940 for JS450LC; these publications are not included.

A Preview of Pump Clearances and Slipper Wear

For the JS240LC hydraulic pump, the parts-replacement table lists piston-to-cylinder-bore clearance at 0.032 mm standard and 0.064 mm replacement size. These figures apply to inspection of the pump’s internal piston and cylinder components.

The same table gives slipper thickness as 4.5 mm standard and 4.3 mm replacement size, linking this criterion to replacement of the piston/slipper assembly.

Reading the PDF and Enlarging Wiring Details

Text search, navigation, and wiring detail: PDF text search is not available, and the two embedded bookmarks link only to large file sections rather than individual chapters. Small schematic labels require zooming; some tiny electrical connector identifiers remain difficult to read.

The download contains one printable, 456-page PDF in English. The total includes the original cover and 12 blank pages; no separate publications or supplements are supplied.
