1999 and Later Isuzu AA-4BG1T, AA-6BG1, BB-4BG1T & BB-6BG1T Industrial Diesel Engine Workshop Manual (P/N IDE-2370)

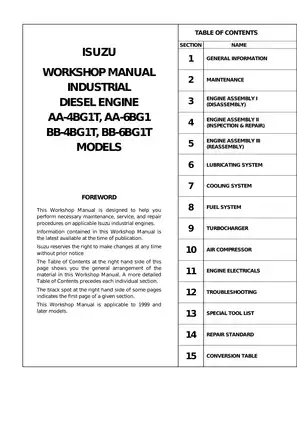

Isuzu Workshop Manual IDE-2370, first edition December 1999, covers 1999 and later AA-4BG1T, AA-6BG1, BB-4BG1T and BB-6BG1T industrial diesel engines.

Supplied as one 222-page English PDF in a ZIP archive.

• Engine repair: Cylinder-head and bottom-end disassembly, inspection, repair and reassembly, plus compression testing, valve-clearance adjustment and final engine tuning.

• Fuel injection: Nozzle overhaul, spray and opening-pressure checks, fuel-system bleeding, and timing procedures for flange-mounted and coupling-driven injection pumps.

• Lubrication and cooling: Oil-pump and oil-cooler service, thermostat inspection, fan-belt adjustment, fluid specifications and system diagrams.

• Turbochargers: Mitsubishi TD04H and IHI RHG6 identification, installation information and RHG6 rotor-shaft clearance checks, with limits on internal repair coverage.

• Optional air compressor: Disassembly, cylinder and piston inspection, connecting-rod and crankshaft clearance checks, reassembly and an Air Compressor Sectional View.

• Engine electricals: Starter and alternator identification, component specifications, sectional views, charging-circuit information and the engine-tuning wiring diagram.

• Repair references: Symptom-based troubleshooting charts, factory repair standards, component grading, torque tables and numbered special tools.

This manual is suited to mechanics familiar with diesel-engine overhaul and precision measurement, with access to the specified gauges, pullers and a suitable press.

Engine Variants and Internal Repair

The standard-engine tables distinguish Bosch A-type in-line pumps on the four-cylinder versions from Bosch AD-type pumps on the six-cylinder engines. Both families use direct injection and mechanical RSV-type governors; installation-dependent specifications vary with the equipment application.

Separate disassembly, inspection/repair and reassembly sections cover the cylinder head and valve train, including valve-guide and valve-seat work, camshaft and timing gears. Bottom-end work includes dry-liner removal and installation, cylinder-block inspection, pistons and rings, connecting rods, crankshaft and bearings.

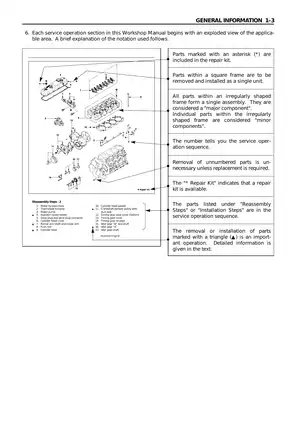

Flywheel, ring-gear and crankshaft-gear service, front and rear oil seals, manifolds and external engine components are also covered. Exploded assemblies and the Engine Sectional View support component identification.

Liner grading and piston-selection tables help match replacement parts before assembly; an incorrect piston grade can cause seizure. The chrome-plated dry liners cannot be rebored or honed, and the TUFFTRIDED crankshafts cannot be reground.

Laminated-steel head-gasket instructions cover angular bolt tightening, head-bolt reuse limits and restrictions on retightening.

Injection Timing, Nozzles and Pump Data

Timing procedures distinguish the flange-mounted and coupling-driven arrangements. The applicable timing can differ between otherwise identical engines because Isuzu and the equipment manufacturer specify it for the installation.

Nozzle service includes internal inspection, reassembly, spray assessment and opening-pressure adjustment. Section 8 labels its pump-calibration sheets as examples; Section 14 adds data for pump 1-15603-328-0 and a Governor Performance Curve.

Pump identification determines which service data applies. Internal pump adjustment and repair are assigned to ZEXEL or Robert Bosch authorized service.

The manual warns that overtightening can distort the aluminum pump body and restrict control-rack movement, while misplaced injection-pipe clips can cause fuel-pulsing noise and pipe breakage.

Lubrication, Cooling and Compressor Service

Oil-pump repair includes drive-gear and driven-gear clearance inspection. Oil-cooler assemblies identify the element and bypass valve, while cooling coverage describes the belt-driven centrifugal water pump, wax-pellet thermostat, belt-tension checks and engine-only coolant capacities.

Routine filter service is included, but the Maintenance section directs readers to the separate Instruction Book for service intervals.

For engines equipped with an air compressor, the overhaul chapter covers the piston, rings, cylinder, connecting rod, crankshaft and bearings. Removal and installation instructions address its connection to the injection-pump drive.

TD04H and RHG6 Turbocharger Coverage

The four-cylinder turbo engines use Mitsubishi TD04H units; the BB-6BG1T uses an IHI RHG6, while the AA-6BG1 is naturally aspirated. These are the standard configurations listed in the manual.

Section 9 provides RHG6 axial and radial shaft-play checks. Detailed TD04H internal repair is referred to the separate Mitsubishi publication 99626-92110; turbocharger repairs are directed to the appropriate IHI or Mitsubishi service center.

Electrical Reference and Fault Diagnosis

The Starter Motor Sectional View and starter performance curve accompany electrical specifications. The Alternator Sectional View and Charging Circuit show charging components, while the engine-tuning wiring diagram includes starting, preheating and regulator connections.

Electrical coverage concerns engine components and reference circuits. Troubleshooting follows symptoms rather than ECU fault codes.

Starting charts distinguish an inoperative starter, failure to turn the engine and cranking without starting. Further charts cover unstable low idle, insufficient power, excessive fuel or oil consumption, overheating, white or dark exhaust smoke, failure of oil pressure to rise and abnormal engine noise.

Repair Standards and Special Tools

Section 14 relates nominal dimensions and assembly standards to wear limits, repair criteria and final-inspection checks. Reference data includes compression limits, valve and nozzle settings, component torque specifications and electrical test values; conversion tables follow in Section 15.

Tool references include compression gauge adapter 5-85317-001-0 and cylinder-head bolt wrench 1-85111-003-0. Liner service identifies remover 5-8840-9038-0 and installer 5-8522-1018-0, with piston-ring compressor 9-8522-1251-0 specified for piston installation.

Rear oil-seal installers differ by engine family: 5-8840-9025-0 for 6BG1 and 5-8840-2357-0 for 4BG1. The Special Tool List also identifies valve-guide and crankshaft tooling.

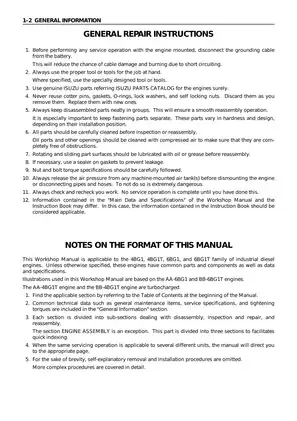

Some straightforward removal and installation operations are omitted; the manual gives more detail for complex procedures. Service involves rotating parts, pressurized fuel and lubrication circuits, and optional compressed-air equipment; observe its battery-isolation and air-tank depressurization requirements.

PDF Navigation and Diagram Readability

The page total includes the cover, combined contents/foreword page, 10 memo pages and two publication/back-cover pages; the ZIP's Read Me and two JPEG navigation guides add no PDF pages. Text search and 17 embedded bookmarks provide navigation to the contents and all 15 sections. Small terminal labels in the engine-tuning wiring diagram are legible when enlarged; Charging Circuit labels are readable at normal page view.
