JCB 8014/8016/8018 Mini Excavator Service Manual 2004–2006 (P/N 9803/9350-3)

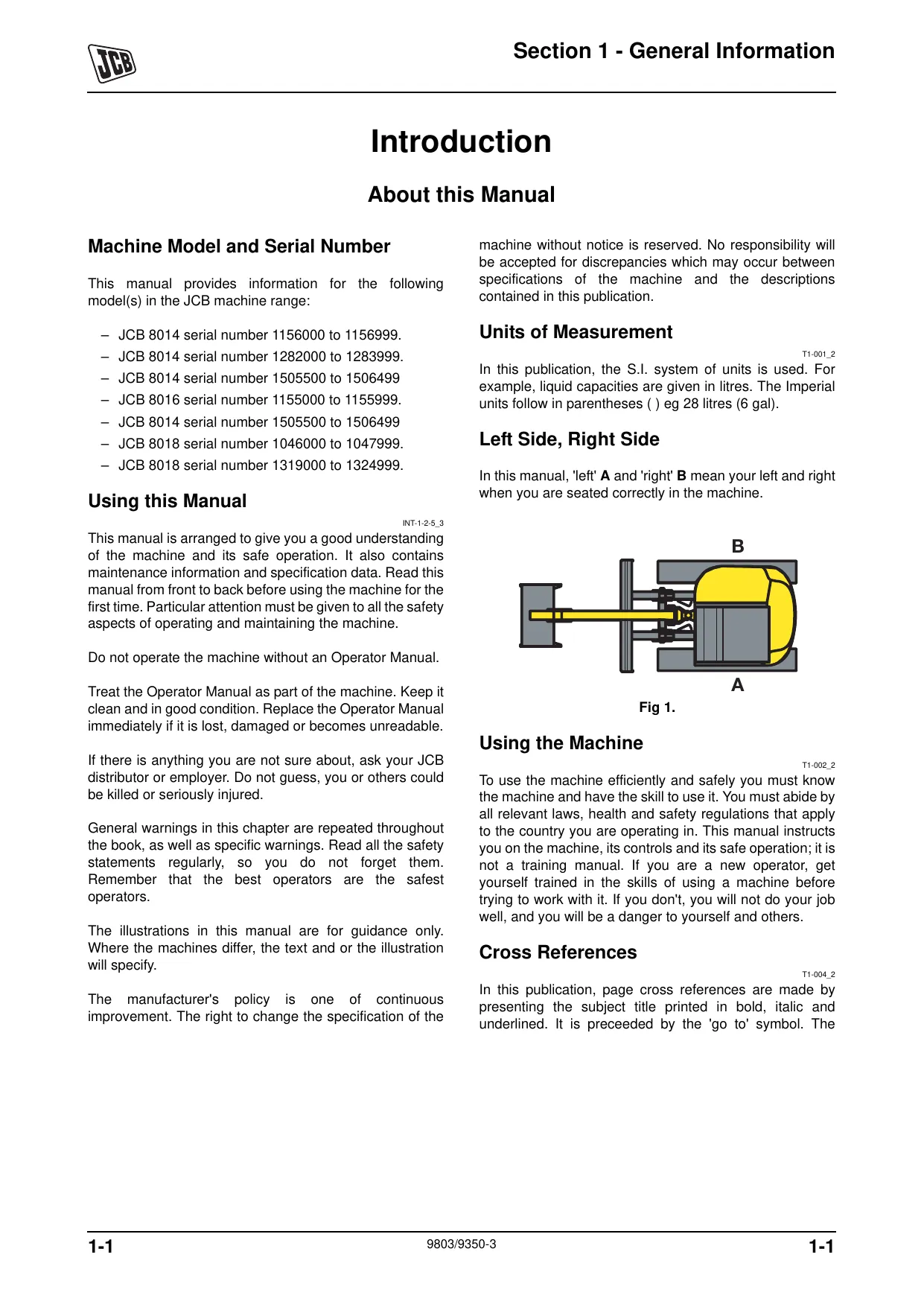

JCB Service Manual P/N 9803/9350-3 (© 2004 JCB Service) covers the 8014, 8016, and 8018 mini excavators within the serial-number ranges listed above.

PDF Search, Diagram Detail, and File Layout

Search and navigation: Text search works in the written sections, but some electrical, harness, and hydraulic drawing labels are not searchable. Each file has two generically named bookmarks rather than detailed chapter navigation. Small labels on dense schematics require zooming; some lines in the Tier 3 electrical schematic are pale.

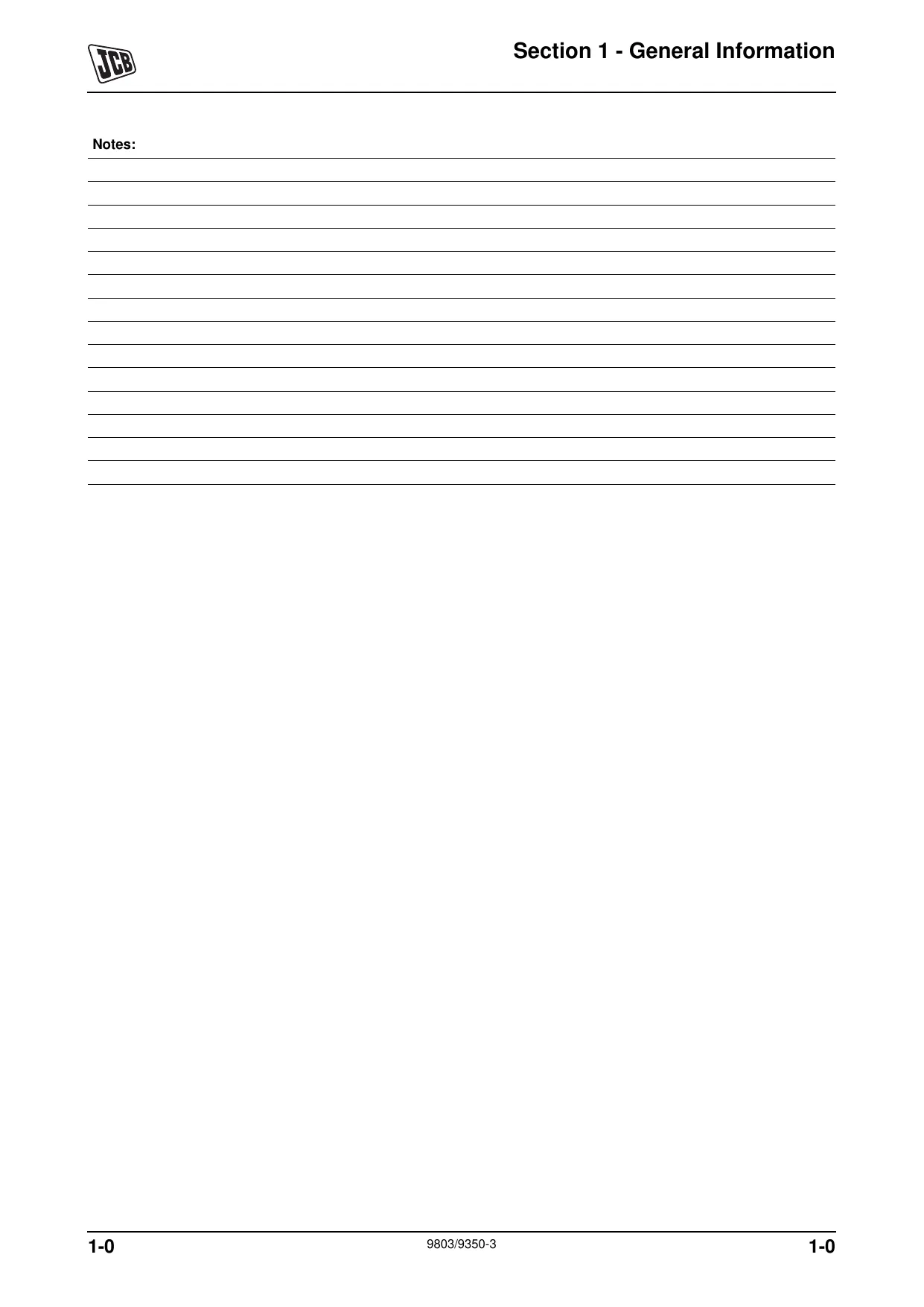

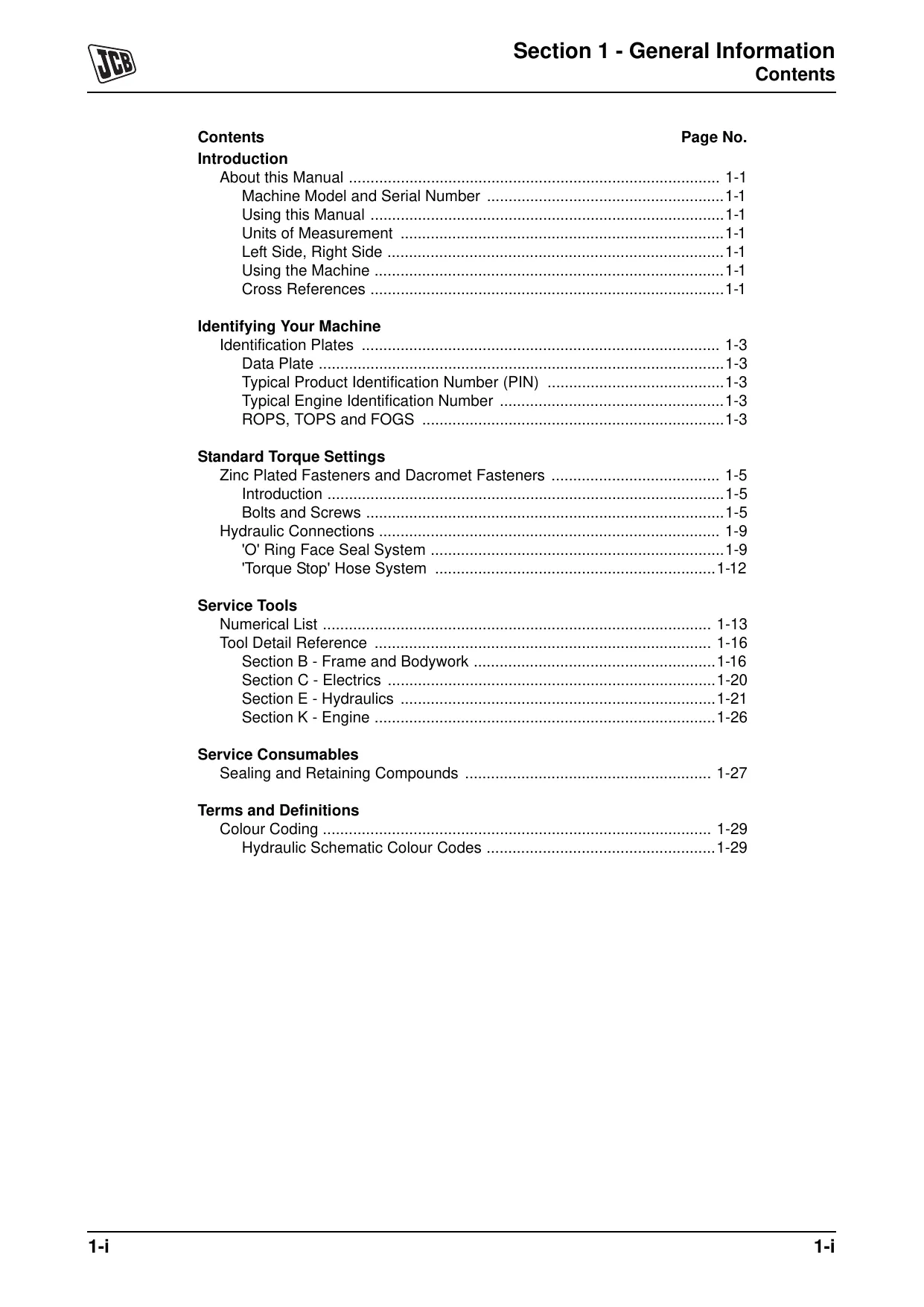

The ZIP contains one English manual in 12 printable PDFs, totaling 394 pages: front file, 2; General Information, 34; Care and Safety, 18; Maintenance, 50; Attachments, 20; Body and Framework, 28; Electrics, 56; Controls, 32; Hydraulics, 106; Gearboxes, 16; Track and Running Gear, 24; and Engine, 8. This total includes 12 cover pages, 12 notes pages, 37 intentionally blank pages, and 10 unused contents pages.

Hydraulic, Electrical, and Excavator Workshop Coverage

These selected topics outline the workshop content. Other examples include rivet-nut installation and sealing-compound references.

• Hydraulic repair: Three-section gear-pump inspection and assembly, main-control-valve service, relief-valve pressure tests, pump-flow testing, and track- and slew-motor repair.

• Travel configurations: Rotary-coupling procedures distinguish single-speed 8014/8016, two-speed 8016/8018, and two-speed 8018 machines with an extending undercarriage.

• Electrical diagnosis: Starter and alternator testing, sealed wiring-harness repair, separate Tier 2 and Tier 3 electrical schematics, and cab/canopy harness drawings.

• Controls: Servo hand-controller inspection, fault finding, dismantling, and assembly, plus track-lever, dozer-lever, throttle, and control-bar service.

• Body and framework: Cab tilting, direct glazing, and removal, inspection, and replacement of the bucket linkage, dipper, boom, and kingpost.

• Running gear and gearboxes: Rubber and steel tracks, rollers and metallic face seals, driven sprockets, idler/recoil units, and track- and slew-gearbox procedures.

• Routine maintenance: Service schedules, final inspection, lubrication points, fluid capacities, engine oil/filter/cooling/belt service, hydraulic-filter replacement, gearbox oil changes, and track adjustment.

The repair sections are suited to experienced technicians and mechanics with hydraulic test equipment, a multimeter, lifting gear, and an equipped workshop. JCB reserves certain service checks for trained specialists and states that this is not a training manual.

Hydraulic Fault Isolation and Component Repair

The hydraulic fault path separates all-service failures from single-function, servo, travel, and slew faults. It directs diagnosis toward pump condition, valve sections, relief valves, high-speed selection, or slew braking.

For weak travel, lubrication-return flow checks help distinguish rotary-joint leakage from track-motor leakage before component removal. Contamination-control procedures and component checks support the associated repair work.

Step-by-step instructions cover control-valve dismantling and assembly and hydraulic-ram removal and replacement. Component sections address pressure-maintenance and dual-solenoid valves, the track-motor brake valve, slew-motor cross-line relief and anti-cavitation assemblies, and boom, dipper, bucket, dozer, swing, and undercarriage-extension rams.

Configuration-Specific Circuit and Harness Drawings

Hydraulic schematic 236/60023 Issue 10 covers the 8014/8016; 236/60025 Issue 11 covers the 8018. Hose-color tables trace control-valve, rotary-joint, ram, dipper-option, and extending-undercarriage functions.

Electrical circuits distinguish Tier 2 drawing 853/20030 Issue 3 from Tier 3 drawing 332/S1222. Harness examples include 721/11794 Issue 5 for the Tier 2 8014 cab and 8016/8018 cab or canopy, plus 332/R9120 Issue 1 for the Tier 3 8014 engine harness.

Wire-identification tables and connector-destination schedules support circuit tracing.

Travel, Structural Work, and Repair Limits

Two-speed travel is standard on the 8018, optional on the 8016, and unavailable on the 8014. Gearbox chapters provide exploded assembly views, inspection criteria, and reassembly data.

Long, extra-long, and Gravemaster dipper options have dimension, weight, and pivot-wear data. Idler/recoil procedures distinguish the 8014 from the 8016/8018 design; damaged non-serviced recoil components require assembly replacement.

The control bar is dismantled for inspection only; a worn or damaged unit is replaced.

Engine Maintenance and Attachments

Engine coverage includes general specifications and torque settings for the HL 403C-11 Tier 2 and GJ 403D-11 Tier 3 engines. Internal engine repair requires separate engine manuals 9806/2190 and 9806/3090, which are not included.

Fuel-filter replacement and bleeding instructions distinguish the Tier 2 hand-primer system from the Tier 3 electric-pump system, including the Tier 3 prefilter.

Attachment instructions cover flat-face quick couplings, standard and Quickhitch bucket changes, bucket-tooth replacement, Hammermaster 100 operation, Quickhitch rockbreaker changes, and hand-held hydraulic tools.

Service Tools, Torque References, and Repair Cautions

The 38 illustrated service-tool references identify equipment such as pressure-test kit 892/00253, auxiliary relief-valve test block 331/31069, pump-drive alignment tool 331/22966, ram seal fitting tool 892/00334, piston-seal assembly tool 892/01027, and slide-hammer kit 993/68100.

Torque tables cover UNF Grade S, metric grades 8.8/10.9/12.9, rivet-nut and internal-hex fasteners, BSP and SAE adapters, hoses, and JCB Torque Stop connections. Component wear limits, ram specifications, and electrical test values accompany the procedures.

The repair notes flag two damage risks: a misaligned slew-gearbox dowel can be driven through the slew frame against the slew ring, while an incorrect track-guide setup during steel/rubber conversion can damage the track.

Review the manual's precautions for stored hydraulic pressure, raised-machine and suspended-component support, cab-tilt locking, and recoil-spring energy before service.

Pump-Flow and Cylinder-Size Preview

At neutral circuit pressure and 2,450 rev/min, pump sections P1 and P2 are each rated at 13.5 L/min on the 8014/8016 and 15.7 L/min on the 8018.

The dipper-cylinder bore is 50 mm on the 8014/8016 and 55 mm on the 8018. The ram tables distinguish these dimensions alongside rod diameter, stroke, and operating-time data.
