Suzuki LT300E / LT-F300 1987–1989 ATV Service & Repair Manual (P/N 99500-42082-01E)

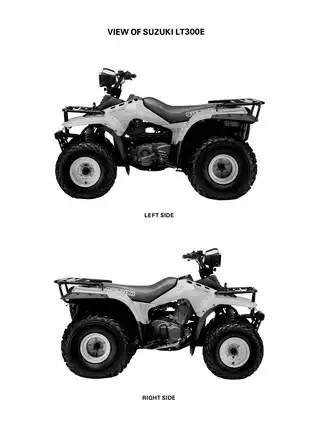

Suzuki’s factory service manual covers the 1987–1989 LT300E and LT-F300, with dedicated service-data sections for the LT300EJ, LT-F300J, LT300EK, and LT-F300K. Publication P/N 99500-42082-01E combines the base repair procedures with the model-specific information needed to use them.

PDF Search, Bookmarks and Page Coverage

Search and diagram detail: An embedded OCR text layer supports searches across the main chapters and model updates, although some headings and drawing labels are not reliably searchable. PDF bookmarks link to the main sections and updates. Small wiring labels require zooming for comfortable reading.

One printable English-language PDF contains 283 pages: 224 pages of base-manual material, including the cover and opening pages, plus a 23-page LT-F300 section and four 9-page model updates. All 59 pages of supplementary model material are included in the total.

Engine Rebuilding, Fuel Delivery and Electrical Fault Finding

These selected coverage highlights show the main workshop topics rather than the complete contents. Other material includes tire replacement and battery servicing.

• Engine repair: Step-by-step engine removal, disassembly and reassembly, with cylinder-head work, valve-guide and seat servicing, piston inspection, and camshaft timing.

• Clutch and transmission: Centrifugal-clutch engagement and lock-up checks, plate inspection, gearshift-fork measurements, reverse mechanism service, and transmission reassembly.

• Fuel and lubrication: Carburetor disassembly and float adjustment, vacuum fuel-pump inspection, fuel-cock cleaning, oil-pressure testing, and oil-filter service.

• Electrical diagnosis: Ignition and charging-system tests, starter-motor overhaul, starter and neutral relay checks, switch continuity charts, and wiring diagrams.

• Brakes and chassis: Front hydraulic drum-brake and master-cylinder service, rear mechanical brake repair, steering alignment, wheel bearings, rear axle, and swingarm work.

• Model updates: LT-F300-specific wiring and routing information, followed by separate service-data sections for the J and K models.

This manual is suited to mechanics and experienced owners who can use precision measuring equipment and the specified workshop tools for internal engine and electrical work.

Engine Inspection and Reassembly References

The manual provides the inspection data needed for engine and chassis maintenance, including cylinder-bore and piston measurements, crankshaft runout limits, and component-specific tightening torques. Its compression and oil-pressure checks connect abnormal readings with possible causes, supporting diagnosis before disassembly.

A separate reference identifies components that can be removed with the engine still in the frame. Valve-timing diagrams, the transmission cross-sectional view, and balancer-gear illustrations support the more detailed assembly procedures.

The clutch section distinguishes plate and one-way-clutch inspection from the clutch shoe assembly, which is not intended for disassembly. Oil-pump coverage likewise specifies replacement of the complete unit rather than an internal overhaul.

Carburetor Circuits and Starting-System Tests

The fuel section explains the vacuum pump’s diaphragm and check-valve operation. Carburetor diagrams show the slow, main, starter-with-limiter, and float circuits alongside inspection and adjustment procedures.

The electrical chapter separates ignition faults from charging and electric-start problems. CDI and regulator/rectifier resistance tables specify the Suzuki pocket tester, 09900-25002, and warn that readings differ with other meters.

Mechanical recoil-starter service is covered separately from the electric-start circuit. The recoil-starter procedure excludes the U.S. model.

Chassis Service and Model Differences

Front double-wishbone suspension and rear swingarm coverage includes removal, inspection, bearings, seals, and reassembly information. Brake procedures distinguish hydraulic front drums from the mechanically operated rear drum.

The LT-F300 section supplies differences to be used with the base chapters. Its wiring diagrams distinguish Sweden from other markets, while the later model sections provide their own carburetor and service specifications.

Assembly cautions: Incorrect oil-filter installation can cause serious engine damage. The crankshaft section also warns that hammering the shaft into the crankcase can disturb its alignment.

Follow the manual’s safety precautions and use appropriate workshop equipment when servicing brakes or supporting the ATV for wheel and suspension work.

Selected Valve, Fastener and Oil Specifications

The valve-clearance section specifies 0.03–0.08 mm intake and 0.08–0.13 mm exhaust with the engine cold. Its cylinder-head tightening reference lists 35–40 N·m for the 10 mm nuts; the chassis tables specify 160–200 N·m for the rear axle inner and outer lock nuts.

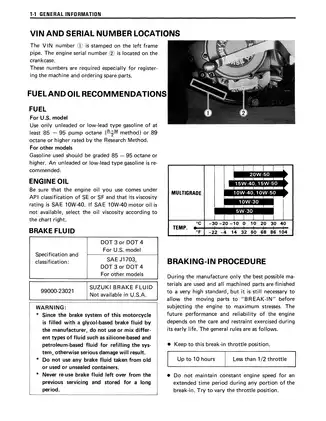

For an engine oil and filter change, the manual lists 1.8 liters and specifies SAE 10W-40 oil meeting API SE or SF. These are selected references from the maintenance and assembly sections, which include the associated conditions and procedures.
