2003 Suzuki DF60/DF70 Four-Stroke Outboard Motor Service Manual (P/N 99500-99E10-01E)

This Suzuki Motor Corporation service manual covers the 2003 DF60 and DF70 four-stroke outboards, including remote-control DF60T/DF70T/DF70WT models and the tiller-handle DF70WTH. It is publication P/N 99500-99E10-01E, first edition September 2002, with long- and ultra-long-shaft specifications.

• Engine control: EFI and ignition diagnosis, sensor and switch tests, ECM circuit voltage/resistance tables, self-diagnostic charts, and by-pass air adjustment in IAC fixed mode.

• Powerhead repair: Power unit removal and installation, cylinder-head service, piston and crankshaft inspection, bearing selection, and timing belt replacement.

• Fuel system: Pressure and leakage testing, vapor separator disassembly, high-pressure fuel pump removal and installation, and low-pressure diaphragm pump service.

• Electrical systems: Charging-system diagnosis, starter-motor overhaul, monitor-tachometer testing, and separate wiring diagrams for remote-control and tiller-handle models.

• Lower unit and cooling: Gearcase disassembly, gear shimming, tooth-contact assessment, shaft thrust-play checks, and water pump impeller inspection and replacement.

• Mid unit and steering: Tiller handle service, throttle/shift cable adjustment, driveshaft housing and oil pan removal, and swivel, steering, and clamp bracket inspection.

• Power Trim and Tilt: Unit removal and seal service, motor overhaul, relay and switch testing, hydraulic circuit operation, and air bleeding.

Written for technicians who already have the basic knowledge and skills to service Suzuki outboards and access to the required tools.

Engine Control and Electrical Diagnosis

The 44-pin connector test cord (09930-89950) and ECM connector/terminal layouts support voltage and resistance checks at identified circuits. Combined with the self-diagnostic charts, they help distinguish sensor or wiring faults from ECM faults before parts are replaced.

Troubleshooting covers coded faults, cranking without starting, and unstable idling/trolling. Ignition and fuel-injection timing charts explain CKP/CMP signal relationships; electrical service adds brush and commutator inspection limits and relay/switch continuity checks.

Fuel-System Testing and O2 Feedback

Fuel-system procedures include running and residual pressure checks, regulator testing, vapor-separator float adjustment, and injector/delivery-pipe removal and installation. Fuel-hose routing views show connections between the separator, filters, pumps, and delivery pipe.

The O2-feedback section covers engine-side setup for Suzuki Diagnostic System testing using program version 4.00 and database version 4.10. Software-operation instructions are in a separate SDS Operation Manual.

Follow the factory safety precautions for marine electronics and pressurized fuel systems.

Powerhead Maintenance and Cooling

Internal engine work extends to valve-guide replacement, valve-seat service, piston/ring inspection, and crankshaft reassembly. Camshaft inspection distinguishes the ungrooved DF60 part from the grooved DF70 version and lists separate cam-height specifications.

Timing belt instructions identify alignment errors that can bend valves. Routine service covers cold valve-clearance adjustment, oil-change reminder resets, and lubrication requirements, including SAE #90 hypoid gear oil for the lower unit.

The Cooling System Schematic, Engine Oil Lubrication Chart, and water-hose routing views document flow paths. Related inspections cover the thermostat, water pressure valve, and cooling passages.

Lower Unit, Mid Unit, and PTT Service

Gearcase repair includes pinion-bearing replacement, forward/pinion/reverse gear shimming, and seal leakage testing. Gear-tooth contact pattern views identify incorrect contact that can chip the forward and pinion gears.

The mid-unit section adds oil-pump, mount, and bracket inspection. PTT coverage extends to motor brushes and commutator checks, pump-case and seal inspection, and explanations of the shock-absorber, manual-release, and thermal-valve circuits.

A Preview of Compression and Ignition Test Data

These are a few examples of the diagnostic specifications in the manual.

For a warm engine cranked at full throttle, cylinder compression is given as 1300–1600 kPa (185–228 psi), a guideline rather than an absolute service limit.

Ignition-coil primary resistance is 1.9–2.5 ohms at 20°C. The secondary specification for cylinders 1 and 4 is 16–28 kΩ at 20°C, including high-tension leads and spark plug caps.

PDF Search, Chapter Bookmarks, and Diagram Detail

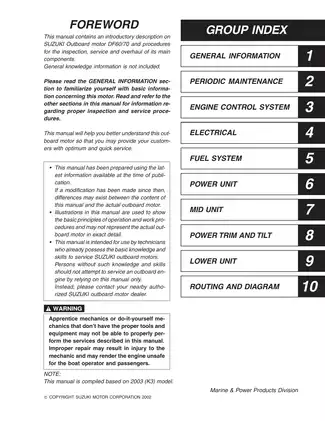

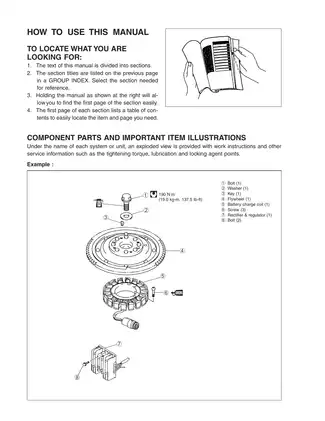

Text and drawing access: Service text is searchable, with embedded bookmarks for all ten main chapters. Some diagram labels are graphics rather than searchable text; small wiring labels require zooming.

One printable English-language PDF contains 283 pages: 277 technical chapter pages, four front-matter pages, and two closing publication/cover pages. All preliminary and closing pages are already included in the total.
