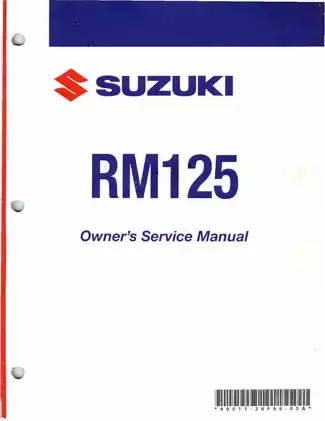

2001 Suzuki RM125 Owner's Service Manual (P/N 99011-36F50-01A)

Suzuki's Owner's Service Manual for the 2001 RM125, P/N 99011-36F50-01A, covers operating instructions, race maintenance, machine tuning, and mechanical repair.

• Engine repair: Engine removal and installation, cylinder and piston inspection, exhaust-valve and governor service, crankcase separation, and crankshaft installation.

• Clutch and transmission: Clutch-plate and primary-driven-gear inspection, kick starter service, gearshift linkage repair, and transmission disassembly and reassembly.

• Fuel and cooling systems: Mikuni carburetor service and tuning, reed-valve inspection, radiator-cap testing, water-pump repair, and mechanical-seal replacement.

• Suspension and steering: Front-fork seal and bushing replacement, rear-shock servicing, damping adjustment, steering-stem bearings, and swingarm pivot and linkage work.

• Wheels and brakes: Wheel-bearing replacement, disc inspection, caliper and master-cylinder service, brake-fluid replacement, and bleeding.

• Electrical diagnosis: Peak-voltage tests, ignition-coil and stator measurements, CDI terminal checks, magneto rotor service, and wiring diagrams.

This manual suits mechanically experienced owners and technicians equipped for engine measurements and suspension service, including nitrogen charging for rear-shock work.

Race Maintenance and Carburetor Tuning

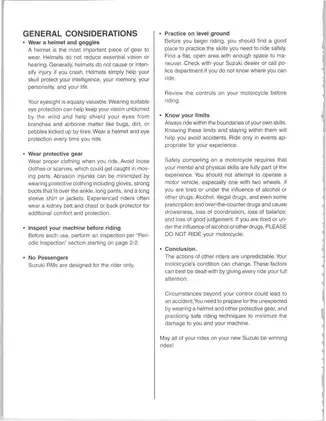

General instructions cover fuel/oil premixing, break-in, and cold, warm, and post-fall starts. The maintenance chapter separates pre-practice checks, pre-race inspections, and scheduled service for the air cleaner, spark plug, transmission oil, coolant, and drive chain.

Mikuni TMX38S tuning explains how the slow, intermediate, and main systems overlap across throttle openings. Jet-needle choices, mixture symptoms, and temperature/altitude charts support setup changes; suspension tuning adds compression/rebound baselines, spring options, and balance checks.

Engine Internals and Drivetrain Repair

Exploded views show the engine, clutch, and kick starter assemblies. Inspection procedures distinguish normal clearances from wear limits for the crankshaft, transmission, and clutch, alongside component-specific torque data.

The cylinder section identifies the plated bore as unsuitable for boring or honing. Its piston-ring cautions explain how incorrect alignment at the locating pin can damage the ring during cylinder installation.

Specified workshop tools include crankcase separator 09920-13120 and clutch sleeve hub holder 09920-53740.

Cooling and Ignition Fault Finding

Cooling coverage includes radiator removal, coolant replacement, and water-pump bearing and impeller inspection. The coolant-density chart accompanies mixture guidance, while troubleshooting tables address coolant loss and overheating.

The Electrical Circuit schematic and Wiring Diagram identify ignition components and wire colors; routing drawings show cable and hose paths. Peak-voltage checks and the CDI connector test matrix help narrow a no-spark fault before replacing ignition parts.

Fork, Shock, and Chassis Service

The fork instructions cover oil servicing and replaceable seals and bushings, but specifically prohibit internal disassembly of the damper-rod assembly and compression-damper unit.

Rear-shock work extends to damper-rod removal, seal inspection, oil replacement, nitrogen depressurization, and recharging. Swingarm and linkage instructions include bearing installation; incorrect linkage-bolt orientation can restrict movement and damage the linkage.

Front and rear caliper and master-cylinder sections cover disassembly, inspection, cleaning, and reassembly. Wheel service includes axle and rim runout checks, bearing installation, and disc and sprocket replacement.

Pressurized suspension, hot fluids, and brake-system work require the precautions and equipment specified in the manual.

A Preview of Top-End Checks and Fork Oil Data

These examples show a small part of the manual's inspection and filling specifications.

Top-end inspection lists a standard piston ring-to-groove clearance of 0.020–0.060 mm and a cylinder-head distortion service limit of 0.05 mm.

For fork reassembly with the standard spring, the outer tube takes 390 ml per leg; the damper-rod chamber is listed separately at 180 ml. Oil-change and spring-change procedures specify different outer-tube quantities.

Searchable Text, Chapter Bookmarks, and PDF Contents

Search and diagram detail: OCR text search is available across the service chapters, with recognition errors in some headings and diagram labels. Bookmarks open the contents and all 18 chapters. Small wiring labels are clearest when enlarged.

One printable 214-page PDF in English. The total already includes two cover pages, two blank pages, and eleven memo pages.
