Hyster S25XL S30XL S35XL Forklift 2010–2015 Factory Service Manual (P/N SEBR0541-03)

• Coverage is centered on serial code B10 for S1.25XL, S1.50XL, and S1.75XL trucks (S25XL, S30XL, and S35XL), with C1 coverage for the corresponding H25XL, H30XL, and H35XL models.
• Engine and fuel-system material covers Mazda M4-121G removal, internal inspection and repair, timing work, carburetor service, LPG tank/vaporizer/carburetor repair, governor adjustment, and fuel-system troubleshooting.
• Powershift documentation distinguishes the early transmission with a side-mounted oil filter from the later T41 unit, then covers clutch packs, pump and control-valve repair, differential setup, pressure checks, linkage adjustment, stall testing, and fault isolation.
• Hydraulic and chassis sections address gear-pump disassembly and testing, main-control-valve repair and relief adjustment, brake bleeding and pedal setup, steering axle and control-unit service, plus lift- and tilt-cylinder repair.

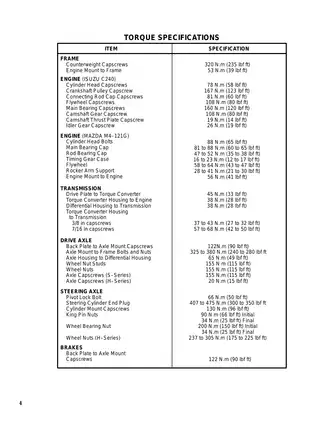

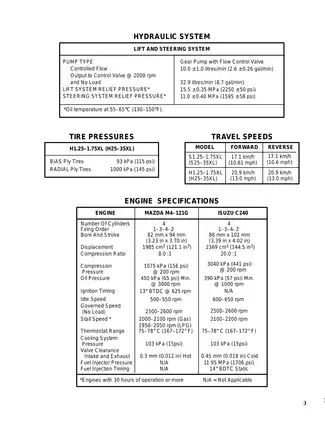

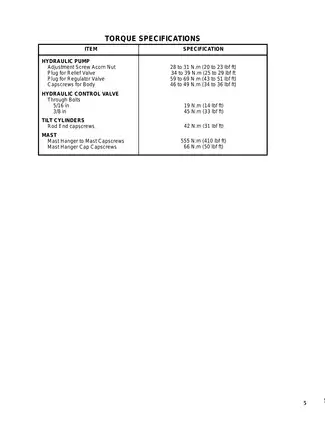

• The set provides hydraulic and transmission schematics, gasoline/LPG and diesel wiring diagrams, section views, troubleshooting charts, torque tables, capacities, wear limits, pressure-test data, and electrical test specifications.

This is a collection of Hyster service sections rather than a single bound book. Its repair depth and repeated requirements for lifting equipment, pressure gauges, measuring tools, and trained personnel make it best suited to trained technicians and properly equipped repair shops.

Model, Engine, and Fuel-System Coverage

The B10 serial code identifies the S1.25-1.75XL family; C1 identifies the equivalent H-series trucks. Shared maintenance and transmission sections also discuss A/B/C177 and A/B/C187 machines in the S/H40-60XL range, but those references do not make this a complete service set for the larger trucks.

Mazda M4-121G coverage extends well beyond tune-up data. The engine section documents removal and installation, cylinder-head and valve work, timing-chain and gear-case service, camshaft and crankshaft inspection, pistons, connecting rods, cylinder liners, oil pump, governor, coolant pump, and flywheel work. Factory tool references identify valve-guide tool Hyster P/N 327686 and cylinder-liner remover components P/N 327688 and 327689. The electrical chapter adds starter, distributor, alternator, regulator, charging, ignition, and resistance tests. It distinguishes contact-point distributors used before April 1990 from later HEI-equipped builds.

Diesel coverage is narrower. The set supplies Isuzu C240 specifications, maintenance procedures, VE-versus-PE4A injection-pump identification and idle adjustment, fuel-system bleeding information, and diesel wiring diagrams. It does not contain a stand-alone C240 teardown or overhaul section.

Transmission, Hydraulics, Brakes, and Steering

Both single-speed Powershift designs are represented. The early unit is identified by its oil filter on the left side of the case; the later T41 transmission used on S/H25-35XL trucks places the filter above the control valve. Repair sections address engine/transmission removal, torque converter handling, front cover and oil pump service, forward and reverse clutch disassembly and inspection, control-valve work, differential bearing and ring-and-pinion setup, MONOTROL and direction-linkage adjustment, neutral-start-switch testing, pressure diagnosis, and troubleshooting. The torque converter itself is replacement-only rather than internally repairable.

The hydraulic material explains early and late gear-pump/flow-control arrangements, pump wear checks, main-control-valve and auxiliary-solenoid repair, control linkage, and relief-valve testing. Brake coverage reaches the master cylinder, wheel brake assemblies, parking brake, inching/brake pedal adjustment, neutral-start switch, bleeding, and fault diagnosis. Separate steering sections cover axle removal, steering-cylinder service, hubs and spindles, steering-column types, steering-control-unit overhaul, bleeding, checks, and troubleshooting.

Vista mast information describes two-stage, free-lift, three-stage, and four-stage layouts, carriage and side-shift arrangements, lift-cylinder designs, lowering-control valves, and cylinder sealing work. The dedicated Vista mast repair chapter 4000 SRM 223 is referenced but is not included, so this set should not be purchased as a complete mast-overhaul manual.

Schematics, Specifications, and Service Cautions

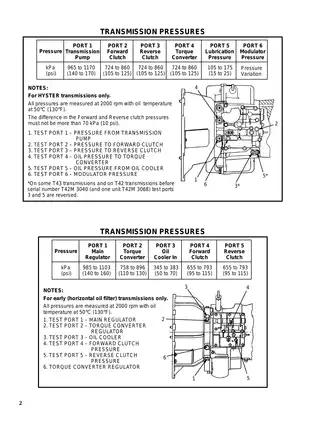

The 18-page diagrams file contains 11 numbered drawings. Useful examples include the T41/T42/T43 transmission schematic, the hydraulic-system schematic, gasoline/LPG safety wiring, diesel safety wiring, and the instrument-panel electrical diagram. Other sections add early- and late-production Mazda charging circuits, a transmission section view, and ring-and-pinion tooth-contact patterns.

Manual-specific cautions matter during major repair work. The transmission instructions warn that incorrect torque-converter hub engagement can damage the oil pump. The Mazda section cautions that rotating the camshaft with the crankshaft gear removed while the valve mechanism remains installed can damage the valve train. Mast components must be fully lowered or mechanically restrained before work, and hydraulic pressure and battery power must be isolated as directed in the applicable section.

PDF Set Size and Publication Identification

The archive contains 24 PDF files totaling 474 file pages. Two 43-page files—“Periodic Maintenance” and “Metric and Inch (SAE) Fasteners”—are exact duplicates, leaving 431 unique pages: 89 pages of reference, diagrams, instruments, and maintenance; 99 pages for engine, fuel, cooling, and electrical systems; 144 pages for transmission, axle, brakes, and frame; and 99 pages for hydraulics, steering, mast, and cylinders. No separate fastener chapter is present in the supplied set.

Publication identifiers visible in the PDFs include Hyster P/N 897934 / 700 SRM 626 for the cooling-system section and Hyster P/N 910102 / 2100 SRM 103 for the tilt-cylinder section.
