Hyster S6.00-7.00XL Forklift Service Manual Set, 1990–2005 (P/N 897395)

852 Pages • ZIP Download: 25 Printable PDFs • 27.40 MB

4.7starstarstarstarstar_half(3)
$22.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Hyster Models Covered & Key Technical Specifications

Models: H3.50-5.50XM, H6.00-7.00XL, S3.50-5.50XM, S6.00-7.00XL, S135-155XL2, S155XLS

Models & Model Codes:

H3.50-5.50XM — K005, L005 (H70-120XM, shared sections)

H6.00-7.00XL — F006, G006 (H135-155XL, H135-155XL2, shared sections)

S3.50-5.50XM — E004, F004 (S70-120XM, shared sections)

S6.00-7.00XL — B024, C024

S135-155XL2 — B024, C024

S155XLS — B024, C024

Sub-models / Variants: H135-155XL, H135-155XL2, S135-155XL, S135-155XL2

Engine coverage: GM 4.3L V-6 (B024/C024, F006/G006, K005/L005, E004/F004). The shared Perkins 1004-42 (AR), 1006-60 (YG), and 1006-60T (YH) engine repair publication lists B024, F006, and K005 among its applications. Perkins 1104C-44 (RE) coverage for C024 includes wiring and truck-level service.

Transmission variants: Hyster T-40 two-speed powershift (B024/C024 and F006/G006), three-speed manual (B024 within the S6.00-7.00XL range)

Model Years: 1990–2005 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)


  • Lift speed with two-stage mast, no load (S6.00XL and S7.00XL): 25.6 m/min

  • Alternator output (GM V-6 and Perkins): 62 amps at 2500 rpm (hot)

  • Oil temperature for hydraulic relief-pressure checks: 49 °C at 2500 rpm

  • S7.00XL lift truck weight as equipped in the manual: 9590 kg with a gasoline engine, 4570 mm Vista two-stage mast, overhead guard, 1220 mm carriage and forks, load backrest extension, and 90 kg operator

  • Drive tire specification (S6.00XL and S7.00XL): 28 x 12 x 22

  • Brake booster relief pressure: 2.275 MPa

Hyster Manual Features & Selected Content Preview

Publication Pages

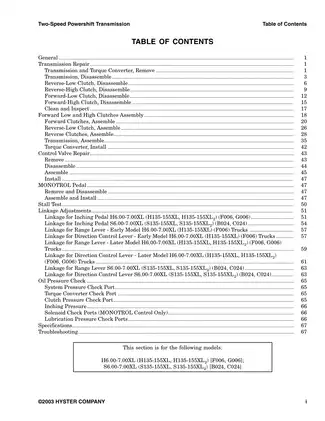

Two-Speed Powershift Transmission — Description and Operation (P/N 897106, 1300 SRM 324) — B024/C024 and F006/G006 27

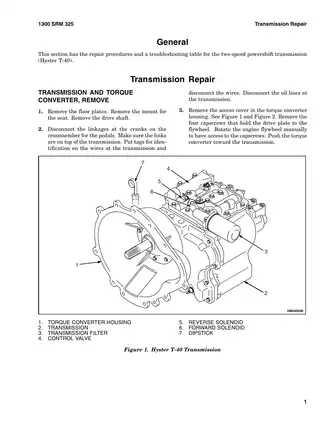

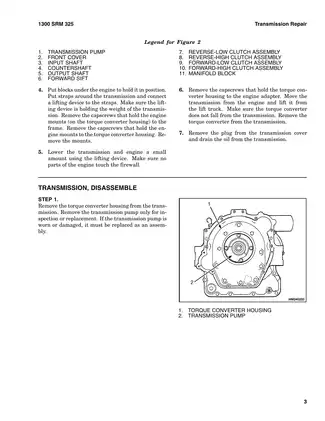

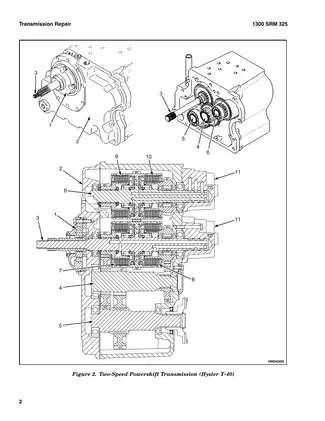

Two-Speed Powershift Transmission — Troubleshooting and Repairs (P/N 897107, 1300 SRM 325) — B024/C024 and F006/G006 75
Three-Speed Manual Transmission (P/N 897117, 1300 SRM 335) — S6.00-7.00XL B024 and H3.50-5.00XL 35
Differential (P/N 910072, 1400 SRM 46) — shared, including B024/C024 and F006/G006 40
Drive Axle (P/N 897391, 1400 SRM 450) — B024/C024 9
GM Engines, 4.3 Liter V-6 (P/N 897800, 600 SRM 590) — shared, including B024/C024, F006/G006, K005/L005, and E004/F004 46
Perkins Diesel Engines, 1004-42 (AR), 1006-60 (YG), and 1006-60T (YH) (P/N 1455747, 600 SRM 705) — shared, including B024, F006, and K005 130
Microprocessor Spark Timing System (MSTS) (P/N 1473385, 2200 SRM 765) — late-model GM 3.0L and 4.3L LPG engines 46
Alternator With Regulator (P/N 899784, 2200 SRM 2) — Delco, Motorola, and Leece-Neville 23
Cooling System (P/N 897934, 700 SRM 626) — internal-combustion trucks 9
Hydraulic System (P/N 897394, 1900 SRM 453) — B024/C024 15
Hydraulic Gear Pumps (P/N 910091, 1900 SRM 97) — shared, including B024/C024 and E004/F004 19
Main Control Valve (P/N 899783, 2000 SRM 90) — shared, including B024/C024 and F006/G006 17
Steering Control Unit (P/N 910076, 1600 SRM 54) — shared, including B024/C024 and F006/G006 23
Steering Axle (P/N 897392, 1600 SRM 451) — B024/C024 11
Brake System (P/N 897393, 1800 SRM 452) — B024/C024 17
Masts — Description and Repair (P/N 897111, 4000 SRM 329) — B024/C024 and F006/G006 27
Lift Cylinders (P/N 910119, 4000 SRM 135) — older mast designs, subject to model exclusions 33
Tilt Cylinders (P/N 910102, 2100 SRM 103) — shared, subject to model exclusions 19
Frame (P/N 897390, 100 SRM 449) — B024/C024 21
Instrument Panel Indicators and Senders (P/N 910110, 2200 SRM 143) — shared, including B024/C024 38
Diagrams (P/N 897501, 8000 SRM 519) — B024/C024 and F006/G006 85
Periodic Maintenance (P/N 897304, 8000 SRM 393) — B024/C024 and S3.50-5.50XL D004 59
Capacities and Specifications (P/N 897395, 8000 SRM 454) — S6.00-7.00XL B024/C024, including S135-155XL, S155XLS, and S135-155XL2 9
Metric and Inch (SAE) Fasteners (P/N 910442, 8000 SRM 231) — general reference 19

Use the wiring and hydraulic drawings to identify the circuit fitted to the truck, then use the matching service publication for the test or repair. The frame, brake, hydraulic, steering-axle, and specifications publications focus on B024/C024 trucks. H6.00-7.00XL, H3.50-5.50XM, and S3.50-5.50XM coverage is limited to shared publications.

Configuration limits. Within the S6.00-7.00XL range, the three-speed manual transmission and the included Perkins 1000-series engine repair publication list B024. For C024 trucks with the Perkins 1104C-44 (RE), the set covers wiring, maintenance, fuses and relays, and throttle adjustment. Internal engine repair and fuel-system bleeding for that engine are covered in the separate 600 SRM 1070 publication.

Oil-clutch coverage here consists of maintenance and a schematic. Oil-clutch overhaul is covered in the separate 1200 SRM 334 publication. The MSTS publication covers ignition timing and diagnostics. For LPG fuel-system repair or electronic LPG/gasoline fuel-control procedures, the truck sections refer to separate publications 900 SRM 348 and 900 SRM 1088.

Search, Bookmarks, and Diagram Detail

Finding service information: The service text is searchable across the PDFs. Many schematic labels are embedded in the drawings and require zooming to read. In the Diagrams PDF, the bookmarks lead to the cover. Use its linked contents page to jump to individual drawings. The other PDFs have section bookmarks.

The ZIP download contains 25 printable English-language PDFs, one per publication, totaling 852 pages. That total includes 25 original covers and 25 blank end pages.


Drivetrain, Mast, and Electrical Service

These selected service topics show the range of work covered. Other examples include radiator pressure-cap testing and hydraulic valve-lifter service.

  • Powershift and manual transmissions: T-40 removal, clutch-pack disassembly and assembly, control-valve repair, torque-converter installation, and MONOTROL pedal service. The B024 manual-transmission section covers selector rails, forks, and gearsets.
  • GM and Perkins engine repair: Cylinder heads, valves, pistons, crankshafts, camshafts, timing components, and lubrication and cooling systems. Perkins procedures include injection-pump timing and YH turbocharger service.
  • Hydraulics and steering: Main and steering pump operation, gear-pump rebuilding and output checks, main control-valve relief adjustment, steering-column and control-unit repair, air removal, and steering-axle service.
  • Service and parking brakes: Brake shoes, master cylinder, booster overhaul and relief checks, brake bleeding, and pedal and parking-brake adjustment.
  • Mast, carriage, and cylinders: Two- and three-stage mast removal and repair, sideshift-carriage service, lift-chain and carriage adjustment, lift and tilt leak checks, older-mast lift cylinders, and tilt-cylinder resealing.
  • Ignition, charging, and instruments: MSTS trouble codes and MAP, ECT, and EST checks, plus alternator, gauge, sender, seat-sensor, and Operator Presence System diagnosis.
  • Maintenance and repair references: Service intervals, fluid capacities, fastener and torque tables, electrical test values, wear limits, troubleshooting tables, and exploded and section views.

The set is suited to lift-truck technicians equipped for work such as hydraulic pressure testing and heavy component removal.

Transmission Checks and Truck Repairs

The T-40 repair publication pairs stall tests and pressure-port diagnosis with model-specific linkage adjustments. The three-speed manual publication includes shift linkage and clutch-pedal procedures, with separate differential and drive-axle repair publications for the associated assemblies.

The frame publication covers counterweight and overhead-guard work, operator restraints, tank and radiator repairs, exhaust components, and engine removal and installation. The GM engine publication distinguishes early and later valve-clearance procedures. The Perkins publication identifies special tools for valve guides and seats, cylinder liners, crankshaft seals, timing cases, and pistons. It specifies timing pin PD.246 for the Lucas injection pump.

Wiring and Hydraulic Diagrams by Build

The Diagrams publication contains 28 numbered drawings: 22 electrical and lighting schematics, three hydraulic schematics, and three transmission and oil-clutch drawings. Diesel wiring is split before and after 1995, with a separate 1104C-44 drawing and a Diesel Engine Wiring Schematic for US Models B024, F006.

GM gasoline fuel-injection drawings distinguish early production, 1992–1998, and 1999 and later builds. LPG/MSTS drawings distinguish 1993–1997 and 1998 and later builds. For C024 and G006 trucks, November 2005 separates engine and lighting configurations. Examples include the GM V-6 Gas and LPG Engine Electrical Schematic (C024, G006), Before November 2005 and the Schematic for Lights Option (U.S.) for B024 Trucks.

B024 hydraulic drawings distinguish early trucks, later trucks, and a 1999–2003 B024 arrangement shared with C024. The Hydraulic System Schematic for B024 US/EUR (Early Model Trucks) shows the early circuit. The Powershift Transmission Diagram and Oil Clutch Schematic show their respective oil circuits.

The MSTS publication specifies the CodeMate Tester (Hyster P/N 3071579). Alternator tests address brushes, diodes and diode bridges, rotor fields, stator windings, and regulators. The instrument publication includes Operator Presence System module troubleshooting for applicable C024 trucks.

Service Precautions

Incorrect torque-converter hub engagement can damage the transmission oil pump. Incorrect steering control-unit hose connections can cause unexpected steering action. Follow the factory blocking, pressure-release, lifting, and battery-isolation precautions for raised-mast work, pressurized hydraulics, brake repair, heavy drivetrain components, and live electrical testing.

Sample T-40 Pressure Checks

For the S6.00-7.00XL B024/C024 powershift, the specifications chart identifies 1,179–1,427 kPa (171–207 psi) at system pressure port 1 and 765–903 kPa (111–131 psi) at torque-converter pressure port 2. Both ranges apply at 2,000 rpm with transmission oil at least 82 °C (180 °F). The port illustration helps match each reading to the circuit being checked.
