Kubota KX series KX36-2, KX41-2 S, KX41-2 V, KX61-2, KX71-2, KX91-2, KX121-2, KX161-2 Excavator Operator´s Manual (P/N 100A0198, RG 008-8135-3)

This two-file PDF set pairs the multi-model Kubota KX-2 Operator’s Manual with an illustrated KX41-2 Parts Book. The 134-page operator volume covers the KX36-2, KX41-2 S, KX41-2 V, KX61-2, KX71-2, KX91-2, KX121-2, and KX161-2. The 284-page parts catalog is specific to the KX41-2. Operating, maintenance, transport, and lifting information spans all eight listed model designations, while exploded parts and serial-break data apply to the KX41-2.

What’s Inside the Set

• Model and engine identification: Technical-data tables separate the covered machines and match them to the D1105-BH-8, D1105-BH-7, D1105-BH-6, V1505-BH-8, V1505-BH-5, V2203-BH-1, and V2203-BH-2 engine builds. Machine dimensions, operating limits, attachment compatibility, fluid specifications, and capacity categories are organized by model.
• Controls and operating configurations: Control layouts distinguish the KX36-2 from the KX41-2 S/V through KX161-2. Coverage includes instrument-panel indicators, travel and dozer controls, boom/arm/bucket operation, swing and swivel functions, auxiliary pressure connections, and the KX41-2 V variable track-frame/dozer selector.
• Maintenance and basic diagnosis: The operator volume covers daily inspections, scheduled service, engine and hydraulic-fluid care, cooling and fuel systems, drive-unit oil, air cleaner, battery, crawler adjustment, fuel-system purging, bucket-tooth replacement, fuse circuits, slow-blow fuse locations, and troubleshooting for common engine, travel, hydraulic, swing, and overheating complaints.
• KX41-2 parts identification: Paired exploded views and parts lists cover the D1105 engine, injection equipment, starter and alternator, hydraulic and gear pumps, drive and swivel motors, rotary joint, control valve and spool sections, pilot and change valves, cylinders, oil piping, track frame, front attachment, swivel frame, electrical components, platform, and accessories.
• Serial-break and interchangeability data: The catalog separates the Multi Valve configuration through machine S/N A 11363 from the TPSS Valve configuration beginning at S/N A 11364. It also identifies a rubber-crawler part change at S/N 11415 and uses interchangeability, country-code, and remarks fields to reduce incorrect parts selection.

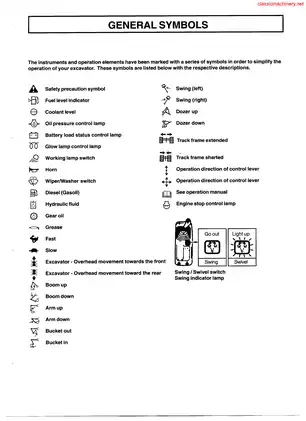

• Useful charts and illustrations: Reference material includes instrument and control layouts, KX41-2 V track extension/contraction diagrams, the swing-stopper mounting chart, maintenance-interval charts, fuse-box and slow-blow-fuse location drawings, exploded assembly views, and model/configuration-specific lifting-capacity charts.

KX41-2 S and V Coverage

The operator manual does not treat the KX41-2 S and KX41-2 V as interchangeable labels. Attachment tables, operating controls, and lifting charts distinguish the two versions. The KX41-2 V sections address the variable-width track frame and provide separate lifting data for shortened and extended track configurations. The KX41-2 S is shown with its own crawler and attachment references. These distinctions help confirm the correct configuration before using capacity data or ordering related components.

Repair Planning and Scope

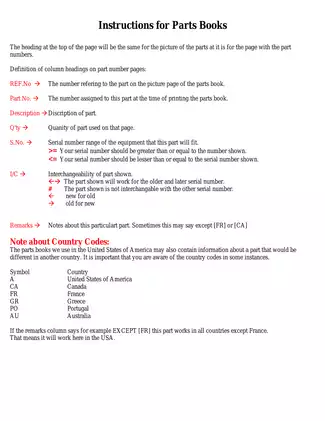

For repair planning, the KX41-2 Parts Book is strongest as a component-identification and ordering reference. Each illustrated section is paired with columns for reference number, part number, description, quantity, applicable serial number, interchangeability, and remarks. That layout helps trace assemblies and recognize supersessions or production changes before a repair begins.

This package is not a factory workshop repair manual. It does not provide complete component removal and installation procedures, internal overhaul instructions, hydraulic pressure-testing sequences, calibration procedures, or a full electrical wiring-schematic package. Use it for operator-level service, troubleshooting, configuration checks, lifting data, and KX41-2 parts identification; major repair or overhaul work still requires the appropriate Kubota workshop publication.

Two model-specific cautions are especially useful. On machines equipped with the swing stopper, the manual shows that stopper orientation depends on installed bucket width; an incorrect position can allow the bucket to contact the machine frame. For the KX41-2 V, the variable track frame is intended to be used at its fully extended or fully contracted end position—the intermediate position is not a secured working setting.

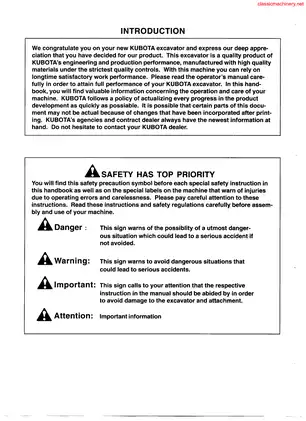

Before lifting, transporting, or working around raised equipment, follow the manual’s machine-support, hydraulic-pressure, and lifting-capacity precautions for the exact model and configuration.

Technical Specs

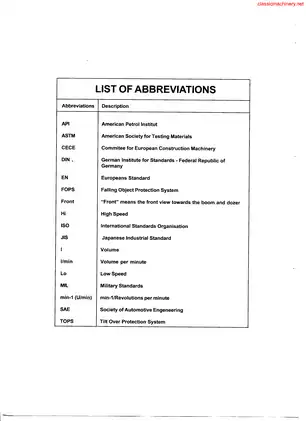

Document Structure

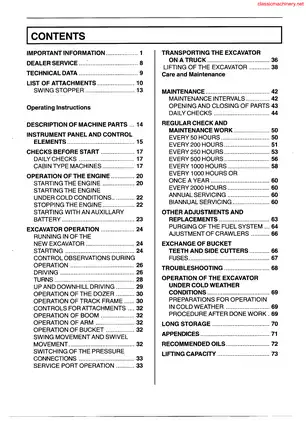

The first PDF runs from machine identification and controls through operation, truck transport, lifting, maintenance, adjustments, fuses, troubleshooting, storage, oils, and lifting charts. The second is an illustrated KX41-2 catalog built around exploded-view pages and matching parts lists. Together they support operator-level work across the listed KX-2 models and detailed KX41-2 parts lookup by assembly and serial applicability.
