1980–1988 Kawasaki KZ 700, KZ 750, Z 750, ZX 750 Repair Service Manual OEM

• A 385-page PDF combines the core Kawasaki factory Service Manual for the 1980 KZ/Z750-E1 and KZ/Z750-H1 with supplements covering 1981-1985 and 1988.
• 1980-1982 coverage: KZ/Z750-E1, KZ/Z750-H1, KZ750-E2, KZ/Z750-H2, Z750-L1, KZ750-E3, KZ/Z750-H3, Z750-L2, and KZ/Z750-R1.
• 1983-1985 and 1988 coverage: KZ750-H4, KZ/Z750-L3, ZX750-A1, KZ700-A1, KZ/Z750-L4, ZX750-A2, ZX750-A3, and ZX750-A5. The Model Application chart supplies beginning frame numbers and VIN patterns.
• Engine repair runs from valve-clearance inspection and top-end overhaul to engine removal, crankcase splitting, and crankshaft/connecting-rod assembly. Drivetrain work includes the clutch hub, primary chain, external shift mechanism, transmission shafts and gears, oil pump, and starter clutch.
• Fuel-system procedures cover fuel-tank removal, Keihin CV34 and Mikuni BS34 carburetors, service fuel-level checks, and synchronization. Electrical repair and diagnosis include alternator stator and rotor service, transistorized ignition, charging and regulator/rectifier tests, starter-motor testing, pickup coils, IC igniters, lighting, gauges, and warning circuits.
• Chassis procedures include wheel and bearing service, tubeless-tire work, caliper and master-cylinder overhaul, brake bleeding, steering-stem bearings, front-fork disassembly and seal replacement, swing-arm service, plus ZX750-A anti-dive and Uni-Trak systems.

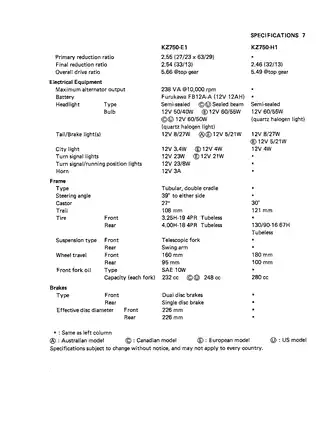

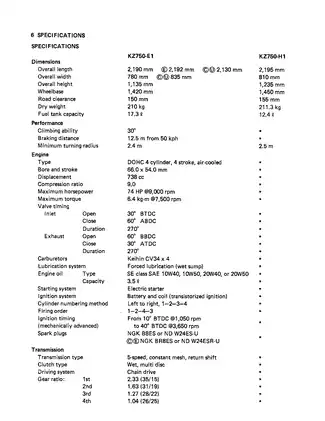

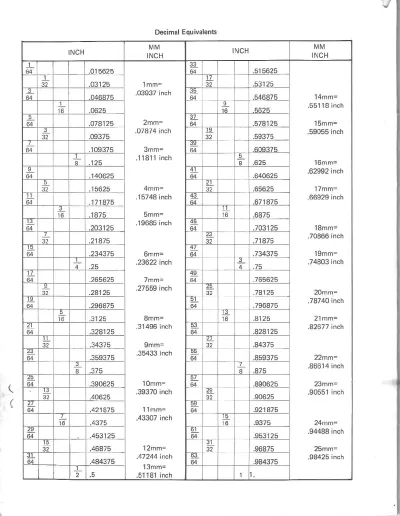

• Factory reference data includes periodic maintenance charts, model-specific service data, torque and locking-agent tables, fluid capacities, wear limits, clearances, pressure checks, electrical test values, special-tool listings, flow charts, exploded views, and model-specific wiring diagrams.

Match the Manual to the Motorcycle

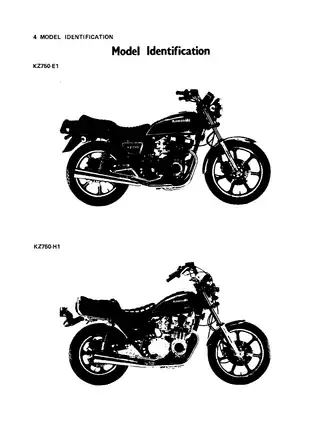

Coverage is determined by the exact model code and beginning frame number, not by the KZ750 badge alone. The application table contains no 1986 or 1987 entry, and this chain-drive DOHC four-cylinder publication does not cover KZ750 twins or unlisted shaft-drive models. The manual states that successful work requires basic mechanical knowledge; its overhaul depth and dependence on Kawasaki special tools and precision measuring equipment make it best suited to experienced owners and motorcycle technicians.

Later machines must be serviced with the core manual, the applicable year section, and the preceding supplements because each annual addition documents only what changed. The final 1985/1988 section, for example, adds identification and specification changes for the ZX750-A3/A5 and refers their remaining repair work back to the 1984 ZX750-A2 material.

E/H, L/R, and ZX System Differences

The base E/H chapters use Keihin CV34 carburetors, while the later L3/L4, R1, ZX750-A, and KZ700 applications introduce Mikuni BS34 assemblies and their separate service information. The 1981 supplement covers the E2/L1 low-fuel warning system and the H2 automatic turn-signal canceling system. KZ/Z750-R1 material adds its oil cooler, electric tachometer, tacho/voltmeter, and LCD fuel-gauge and warning-unit diagnosis.

ZX750-A coverage brings in the anti-dive fork, Uni-Trak rear suspension and links, junction box, electronically advanced ignition, and model-specific starter and headlight circuits. The 1984 supplement adds KZ700-A1 and KZ/Z750-L4 service data, along with inspection and testing for the California-model ZX750-A evaporative-emission system.

Wiring, Test Charts, and Special Tools

Mechanical aids include the installed-engine and engine-removed disassembly flow charts and the Engine Lubrication System oil-flow chart. Electrical references include the Ignition System Troubleshooting Guide, separate KZ750-E and KZ750-H headlight circuits, the ZX750-A Junction Box Internal Wiring Diagram, and the Gauge and Warning System wiring diagram. Fault-finding sections cover starting and running complaints, overheating, clutch and shifting faults, abnormal engine and chassis noise, weak brakes, oil-pressure warnings, and battery charging problems.

The special-tool appendix identifies factory tools by part number, including Vacuum Gauge Set 57001-127, Rotor Holder 57001-308, Transmission Circlip Driver 57001-380, and Engine Stand 57001-900. That information matters when planning carburetor balancing, rotor removal, gearbox assembly, or a major engine teardown.
