Isuzu 4HK1 / 6HK1 Diesel Engine Factory Workshop Manual (P/N 9806/3010)

• Coverage: A 908-page PDF combining the 315-page Isuzu 4HK1/6HK1 workshop portion with a 593-page common-rail troubleshooting portion. The latter includes engine-control information developed specifically for JCB applications.

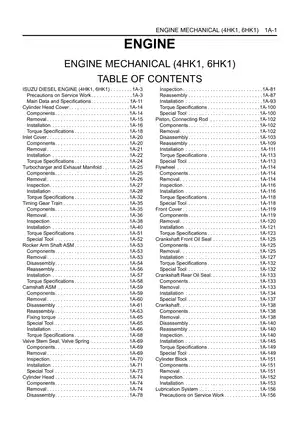

• Internal engine repair: Covers removal, disassembly, inspection, reassembly, installation, and adjustment for the cylinder head, timing gear train, camshaft, rocker-arm shaft, pistons and connecting rods, crankshaft, cylinder block, flywheel, and crankshaft oil seals.
• Common-rail fuel work: Details fuel filter, injector, supply-pump, and common-rail service, including injector QR/Q-key data handling and ECM registration after injector replacement.
• Electronic fault diagnosis: Includes Tech2 and TIS 2000 routines, DTC retrieval and clearing, scan-data checks, breaker-box testing, injector-checker and flush-tool coverage, circuit flowcharts, and post-repair confirmation.

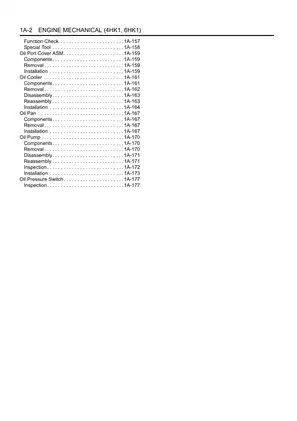

• Supporting systems: Documents separate 4HK1/6HK1 water-pump service, thermostat and drive-belt checks, oil cooler, oil pan, and oil pump repair, starter and generator testing, preheating, EGR valve and cooler work, and turbocharger inspection and reassembly.
• Diagrams and test references: Provides ECM wiring, harness and connector views, waveforms, diagnostic charts, cooling and fuel-system layouts, exploded assemblies, and JCB-specific DTC and wiring information.

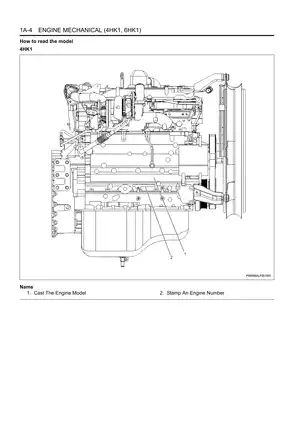

Engine Mechanical and Rebuild Coverage

Published by Isuzu Motors Limited, the mechanical chapters follow actual shop operations from component removal through inspection, reassembly, installation, and final adjustment. Cylinder-head repair includes the valves, guides, seats, springs, rocker-arm assembly, camshaft, and head-surface inspection. The timing section addresses gear identification and alignment, backlash checks, scissors-gear handling, and installation of the camshaft and rocker gear. Bottom-end coverage extends to pistons and connecting rods, crankshaft and bearings, cylinder-block inspection, flywheel service, and front and rear seal replacement.

Related reference data includes compression checks, standard dimensions, service limits, operating clearances, valve-seat contact specifications, timing-gear backlash, lubrication data, and component-specific torque and angle-tightening tables. Special-tool listings identify equipment such as compression gauge 5-8840-2675-0 (J-26999-12), crankshaft stopper 5-8840-2230-0 (EN-47680), and fuel-injector remover 5-8840-2826-0 (EN-46720). Model-specific adapters and seal installers are called out where required.

Fuel, Electrical, and Emissions Systems

Fuel-system coverage takes injector, common-rail, and supply-pump repair beyond simple removal and replacement. The manual addresses contamination control, component-specific removal and installation, common-rail disassembly and reassembly, and injector flow-rate code recording. Its coding material covers Q-key correction data and ECM registration through Tech2 and TIS 2000, an important part of injector replacement on these electronically controlled engines.

Electrical chapters document the 4HK1 and 6HK1 starting and charging systems, internal starter and generator inspection, bench testing, and glow-plug and preheat diagnosis. Exhaust-system material covers EGR valve and EGR cooler service, fault checks for exhaust-related symptoms, and turbocharger disassembly, inspection, assembly, and measurement-tool requirements.

Common-Rail Troubleshooting and JCB Information

The 10D troubleshooting section is the largest part of the PDF. It explains ECM inputs and outputs, engine-harness locations, connector lists, wiring color codes, diagnostic-lamp operation, scan-tool communication, and the factory diagnostic sequence from initial checks through repair confirmation.

Circuit-specific DTC charts cover fuel-rail pressure, injector drive circuits, crankshaft and camshaft position signals, boost and temperature sensors, EGR operation, glow circuits, ECM faults, and CAN communication. Separate symptom charts address no-start, stalling, hunting or rough idle, low output, white or black smoke, abnormal noise, and excessive fuel or oil use.

Particularly useful illustrations include the 4HK1/6HK1 cooling-system layouts, common-rail fuel-system diagram, turbocharger section view, 6HK1 starter section view, ECM connector and harness maps, and the final JCB engine-control schematics. The JCB appendix cross-references machine codes to Isuzu DTCs and includes machine-monitor indications.

This is an engine-focused publication with JCB engine-control information. Machine-model or serial-specific hydraulic, drivetrain, chassis, and non-engine electrical repair still requires the applicable JCB machine manual.

Shop Notes

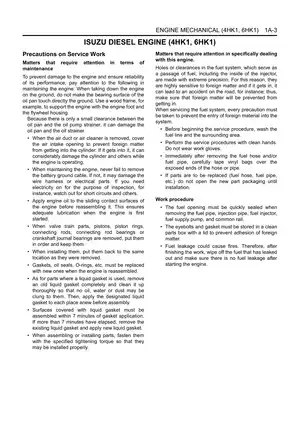

The manual specifically warns against resting the engine on the oil pan because the oil-pump strainer and pan can be damaged. Common-rail repair also depends on strict contamination control, and an injector replacement is not complete at the mechanical installation stage because its correction data must be registered to the ECM.

Work involving high-pressure fuel, rotating assemblies, a pressurized cooling system, electrical power, or suspended engine components requires suitable isolation, lifting equipment, and standard heavy-equipment shop procedures.
