MerCruiser GM V-8 Engine Service Manual (454 CID / 502 CID) 1985–1989 OEM (P/N 90-823224--2 796)

• Covers 1985–1989 MerCruiser GM V-8 marine engines, including 454 CID (7.4L) and 502 CID (8.2L) configurations for Stern Drive, Inboard, and Tournament Ski.
• Official Mercury Marine publication (P/N 90-823224--2 796, 1996 edition).
• Features 47 exploded-view diagrams and 39 troubleshooting flow charts for mechanical and electrical systems.

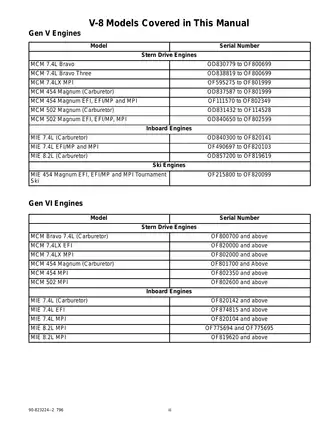

• Includes specific identification guides for Gen V and Gen VI engine series via serial number ranges.
• Explains Weber carburetors, Multi-Port Injection, Throttle Body Injection, Vapor Separator Tanks, and Cool Fuel systems.
• Outlines procedures for engine alignment, shift cables, seawater pumps, and power steering.

Shop Utility and Daily Workshop Application

Mechanics and DIYers need precise documentation to avoid costly mistakes and successfully fix complex issues. This 930-page PDF reference breaks down complete removal, installation, and alignment procedures for Bravo and Blackhawk drives, as well as Hurth and Velvet Drive transmissions. Instead of relying on expensive shop labor, technicians can follow the step-by-step instructions for tasks like intricate shift cable adjustments, precise engine-to-drive alignment, multi-port injector balance testing, and EFI fuel pressure relief protocols. You get direct access to fuel system specifications and specialized marine cooling setups, ranging from standard seawater to closed-cooling configurations. The manual dictates strictly defined maintenance intervals, covering everything from the critical 20-hour break-in to annual winterization and long-term layup protocols. Before turning any wrenches or digging into these heavy-duty marine power plants, always verify your workspace meets marine ventilation standards and ensure battery systems are properly isolated to prevent accidental sparking.

Technical Specifications and Data

Centralizing exact factory tolerances directly at your workbench prevents stripped threads on aluminum intake components, eliminating the need to cross-reference multiple sources while a block is on the hoist. The data sections deliver exact benchmarks, such as the required 150 PSI compression pressure and standard 8.0:1 or 8.6:1 compression ratios. You will find exact cylinder head bolt torque sequences and fastener load limits needed to execute a reliable repair. Working on an EFI model? The manual clearly outlines the required 37 PSI (255 kPa) fuel rail pressure. It also details electrical demands, listing battery ratings between 450 CCA and 650 CCA depending on your specific block. Fluid capacities are explicitly mapped out, noting that certain closed-cooling setups require up to 28 quarts of coolant. To trace electrical faults quickly, rely on the included wiring schematics and dedicated diagnostic tables for Thunderbolt IV and V ignition systems. Furthermore, it provides extensive visual references, specifically featuring the Starter Motor Exploded View, IAC Valve Air Flow Diagram, Cool Fuel System Exploded View, Cooling System Water Flow Diagrams, and the Ignition System Wiring Diagram.

When servicing these marine powerplants, technicians must navigate specific mechanical pitfalls. For example, using strong methyl ethyl ketone (MEK) solvents to clean the Idle Air Control (IAC) valve, or exerting excessive force on the pintle, will severely damage the internal worm drive. Additionally, failing to correctly install the manifold separator gasket on closed-cooling exhaust systems will result in catastrophic water ingestion and severe internal engine damage.
