Kawasaki Models Covered & Key Technical Specifications

Models: TERYX 750 FI 4x4, TERYX 750 FI 4x4 LE, TERYX 750 FI 4x4 SPORT

Models & Model Codes:

TERYX 750 FI 4x4 — KRF750N: KRF750NA, KRF750NB, KRF750NC, KRF750ND; KRF750T: KRF750TA

TERYX 750 FI 4x4 LE — KRF750P: KRF750PA, KRF750PB, KRF750PC, KRF750PD; KRF750R: KRF750RA, KRF750RB, KRF750RC, KRF750RD; KRF750V: KRF750VB, KRF750VC

TERYX 750 FI 4x4 SPORT — KRF750S: KRF750SA, KRF750SB, KRF750SC, KRF750SD; specification variants: KRF750SA□A, KRF750SB□A

Model Years: 2008–2013 (2008, 2009, 2010, 2011, 2012, 2013)

Beginning Frame Numbers:

  • KRF750NA: JKARFDN1□AB500001

  • KRF750NB: JKARFDN1□BB502601

  • KRF750NC: JKARFDN1□CB503401

  • KRF750ND: JKARFDN1□DB505201

  • KRF750TA: JKARFDT1□AB500001

  • KRF750PA: JKARFDP1□AB500001

  • KRF750PB: JKARFDP1□BB501801

  • KRF750PC: JKARFDP1□CB502901

  • KRF750PD: JKARFDP1□DB504001

  • KRF750RA: JKARFDR1□AB500001

  • KRF750RB: JKARFDR1□BB501001

  • KRF750RC: JKARFDR1□CB501901

  • KRF750RD: JKARFDR1□DB502601

  • KRF750VB: JKARFDV1□BB500001

  • KRF750VC: JKARFDV1□CB500901

  • KRF750SA: JKARFDS1□AB500001

  • KRF750SB: JKARFDS1□BB501401

  • KRF750SC: JKARFDS1□CB502801

  • KRF750SD: JKARFDS1□DB503701

The □ in a frame number represents a digit that varies between individual vehicles. In the specification variants KRF750SA□A and KRF750SB□A, it represents a character that varies by model.


  • Engine: 4-stroke, SOHC, V2-cylinder, liquid-cooled

  • Displacement: 749 cm³ (45.7 cu in.)

  • Max Torque: 57 N·m (5.8 kgf·m, 42 ft·lb) @ 5 000 r/min

  • Fuel System: Digital Fuel Injection (Mikuni 34 mm x 2)

  • Compression Ratio: 8.8:1

  • Transmission: Belt drive torque converter, 4WD/2WD shaft drive

  • Bore and Stroke: 85.0 x 66.0 mm

Kawasaki Manual Features & Selected Content Preview

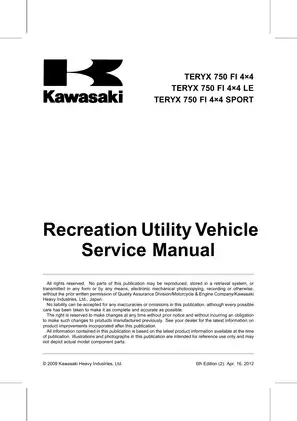

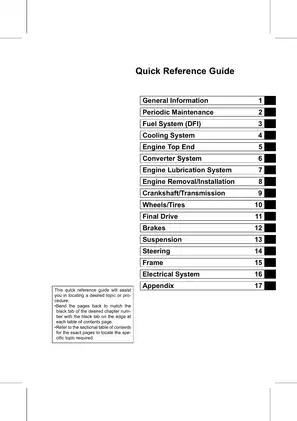

This Kawasaki factory service manual covers the Teryx 750 FI 4x4, LE, and Sport variants identified by the model codes and beginning frame numbers above. Publication P/N 99924-1434-06, 6th Edition (2), dated April 16, 2012, brings periodic maintenance, troubleshooting, and component repair together in 17 system-based chapters.

Searchable Text, Bookmarks and Wiring Detail

Search and diagram access: The main text supports PDF searches, and embedded bookmarks link to chapters and individual procedures. Some diagram labels are not searchable. Small wire codes and connector labels in the detailed wiring diagrams require zooming.

One printable 766-page PDF in English. The total includes 10 preliminary pages, nine additional blank separator pages, and the final model-application page.


DFI Troubleshooting, Engine Repair and Drivetrain Service

The following selected repair topics show the manual’s scope rather than its full contents. Other sections include cargo-bed removal and seat-belt inspection.

  • DFI and fuel delivery: Service-code diagnosis, fuel-pressure and flow tests, injector checks, engine vacuum synchronization, and idle speed control valve testing.

  • Engine repair: Step-by-step instructions for engine removal, cylinder-head service, valve-seat repair, camshaft timing, piston inspection, and crankshaft bearing selection.

  • Converter and transmission: Drive-belt deflection adjustment, drive and driven pulley disassembly, engine-brake actuator checks, and internal transmission inspection.

  • Final drive: Front and rear gear-case disassembly, limited-slip differential clutch testing, bevel-gear backlash adjustment, and tooth-contact checks.

  • Cooling and lubrication: Cooling-system pressure testing, water-pump mechanical seal replacement, thermostat inspection, oil-pressure measurement, and oil-pump service.

  • Brakes and chassis: Front caliper and master-cylinder service, brake bleeding, internal wet-brake work, suspension-arm repair, and steering-knuckle bearing replacement.

  • Electrical diagnosis: Wiring diagrams, ECU connector pinouts, charging-system tests, ignition checks, starter-motor overhaul, and 2WD/4WD solenoid-valve testing.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical work, tool use, and workshop procedures.

DFI Codes, Circuit Checks and Fuel Tests

The DFI diagnosis flow charts connect service codes with circuit checks and component tests, helping distinguish wiring faults from fuel-delivery or sensor problems. Connector pinouts support throttle-sensor and water-temperature resistance tests, along with intake-air-pressure sensor voltage checks.

Different diagnostic displays: Earlier covered variants use FI-indicator blink codes; KRF750ND/PD/RD/SD models display codes on the meter’s LCD. Current faults can be read without a dedicated scanner, while the manual specifies Kawasaki Diagnostic System (KDS Ver. 3) for clearing stored codes on the latter models.

Throttle-body limits: Engine vacuum synchronization is covered, but the factory-set throttle sensor is not a service adjustment. The manual warns against disturbing its calibration and directs replacement of the throttle-body assembly when the specified sensor checks fail.

The DFI System Wiring Diagram and ECU terminal views support electrical fault tracing. Coolant Flow Chart and Engine Oil Flow Chart illustrations show the corresponding fluid circuits, while Cable, Wire, and Hose Routing drawings document installation paths.

Internal Engine Work and KACR Diagnosis

Cylinder and piston inspection includes wear limits and separate piston-ring specifications for different covered builds. Crankshaft service extends to connecting-rod bearing selection and clearance checks; exploded views identify assembly hardware, lubrication points, and tightening requirements.

The Kawasaki Automatic Compression Release (KACR) section distinguishes failure to release compression during starting from unwanted release while running. It covers weight and spring inspection and associated exhaust rocker-arm damage.

The non-return camshaft chain tensioner has specific handling and reset precautions: incorrect handling can damage both the tensioner and camshaft chain.

Converter Setup and Final-Drive Adjustment

Variant-specific pulley setup: KRF750ND/PD/RD/SD models use a drive-pulley cover adjustment procedure with collar and shim selection, distinct from the earlier covered variants. The manual identifies the required measuring tools, including Drive Pulley Measurement Tool 57001-1498.

Primary reduction and transmission gear-ratio tables accompany the drivetrain procedures. Final-drive coverage includes differential clutch checks and shim-selection guidance for backlash and tooth contact; incorrect bevel-gear setup can damage the gears.

Handling heavy UTV drivetrains and pressurized fuel systems carries inherent physical risks. Follow the manual’s handling and safety procedures.

Wet Brakes and Sport Suspension

Rear internal wet-brake disassembly and assembly are documented with the rear final gear case, linking brake-plate work to the surrounding drivetrain assembly.

Separate KRF750S sections cover front and rear rebound damping, compression damping, and spring-preload adjustment. Other covered models have their own shock-absorber procedures, so suspension settings should be matched to the model code.

A Preview of Valve-Clearance and Fuel-Pressure Data

For the covered V-twin engines, the valve-clearance inspection specifies 0.10–0.15 mm intake and 0.20–0.25 mm exhaust with the engine cold, at room temperature.

The fuel-line test specifies 294 kPa (43 psi) with the engine idling. Its diagnostic guidance distinguishes excessive pressure from low pressure and directs further checks of the regulator, fuel-line leakage, and fuel flow.
