Suzuki DF100A/115A/140A Outboard Service Manual 2013 (P/N 99500-92J00-01E)

Suzuki's 2013 factory service manual covers the DF100A, DF115A, and DF140A four-stroke outboards, including DF100AT, DF115AT/DF115AZ, and DF140AT/DF140AZ configurations. P/N 99500-92J00-01E identifies this service manual.

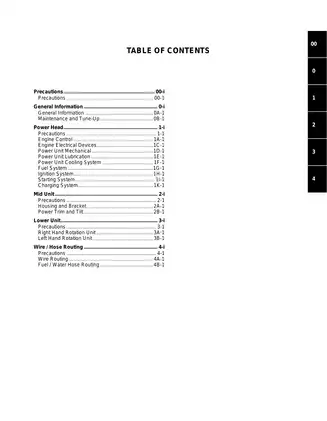

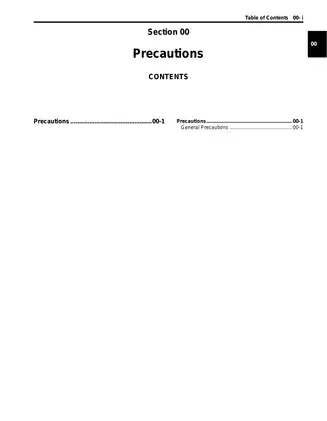

Searchable PDF and Chapter Bookmarks

Text search, navigation, and wiring detail: The manual text is searchable, and embedded PDF bookmarks link to the major service sections. Small wire-color and connector labels in the full wiring diagrams require zooming.

One printable English PDF contains 384 pages, including the front and rear covers, introductory and publication pages, and five otherwise blank section-end pages.

Powerhead, EFI, Trim and Gearcase Work

These are selected examples of the contents. Further topics include propeller selection and starting-battery requirements.

• Powerhead repair and overhaul: Step-by-step power-unit removal and installation, timing-chain and tensioner service, camshaft-sprocket work, cylinder-head disassembly and assembly, and internal-component inspection.

• ECM and EFI fault isolation: Self-diagnostic tables, code-specific troubleshooting, fail-safe logic, IAC diagnosis without a stored code, ECM circuit checks, and sensor testing.

• Fuel, cooling, and lubrication: Fuel-pressure and leak testing, vapor-separator service, injector inspection, thermostat and water-pressure-valve work, and oil-pump and strainer inspection.

• Mid unit and power trim and tilt: Engine holder, oil pan, driveshaft housing, mounts, clamp/swivel/steering brackets, and PTT removal, bleeding, limit setting, disassembly, inspection, and reassembly.

• Right- and left-hand lower units: Propeller and water-pump service, gearcase removal and overhaul, seal and bearing replacement, gear shimming, backlash, tooth-contact, and propeller-shaft thrust-play adjustment.

• Electrical and routing references: Separate DF100A and DF115A/140A wiring diagrams, wiring-harness routing, engine-oil lubrication and cooling-water circulation charts, PTT hydraulic diagrams, and fuel/water hose routing drawings.

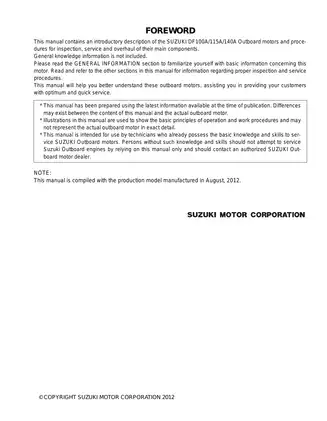

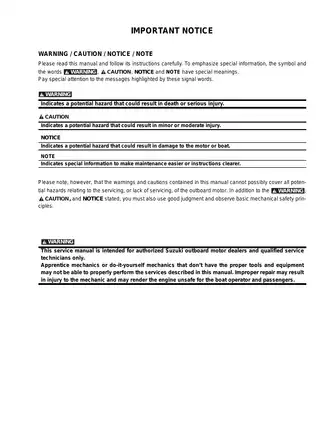

Suzuki states that this manual is intended only for authorized Suzuki outboard dealers and qualified service technicians who already have the basic knowledge, skills, tools, and equipment required for outboard repair; general service fundamentals are not included.

Scheduled Service and Internal Engine Repair

Scheduled service material covers the maintenance chart, lubrication points, engine and gear oil service, spark plug inspection, tappet-clearance adjustment, IAC duty and idle-speed checks, and ignition timing. It also addresses fuel-line and water-pump inspection, anodes, bonding wires, batteries, oil pressure, and cylinder compression.

Internal engine coverage extends to camshafts, tappets, shims, pistons, rings, connecting rods, the crankshaft, cylinders, and bearings. Main-bearing selection tables relate crankshaft and cylinder-block codes to bearing colors, with Plastigauge clearance checks supporting bearing selection.

The timing-system chapter warns that moving the camshaft or crankshaft with the timing chain removed can cause piston-to-valve interference and damage those parts.

ECM, Sensor and Electrical Diagnosis

The engine-control section explains ECM-controlled fuel injection, the caution system, self-diagnostics, fail-safe operation, operating-hour indication, the oil-change reminder, water-in-fuel alert, and troll mode.

Sixteen code-specific troubleshooting sections address MAP, temperature, CKP, CMP, air-intake, injector, TPS, charging, oil-pressure, trim, knock, and O2 circuits. Knock-sensor coverage applies to DF115A/140A.

For an unstable idle, the no-code troubleshooting chart brings IAC, fuel-pressure, sensor, injector, and ignition checks together so a technician can compare possible causes across related systems.

Related chapters add sensor removal and bench checks, ignition-coil signal testing, starter-motor disassembly, flywheel and charge-coil service, rectifier/regulator inspection, and circuit measurements through the ECM test-cord set. SDS data is used for checks such as IAC duty, but operation of the SDS tool is referred to a separate SDS operation manual.

Fuel Delivery, Cooling and Lubrication

Fuel-system repair includes fuel-pressure relief, hose-connection checks, fuel-vapor-separator disassembly, high-pressure pump and regulator inspection, injector signal tests, and injector removal.

The low-pressure fuel pump is inspected and replaced as a complete unit; the manual identifies it as nonrepairable. The throttle-body components, including the TPS, throttle valve, and stop screw, are factory adjusted and are not intended for disassembly or readjustment.

Cooling and lubrication sections combine diagnostic charts with thermostat, water-pressure-valve, water-pump, water-tube, oil-pump, and strainer procedures. The oil pump is also treated as a complete replacement unit if defective.

PTT Variants and Lower-Unit Setup

Separate procedures distinguish the one-cylinder PTT unit used on DF100A/115A from the three-cylinder unit used on DF140A. Trim-down and tilt-up limit resetting is covered for work involving ECM replacement, trim-sensor removal/reinstallation, or mid-unit overhaul.

The lower-unit chapters distinguish the shim arrangements and adjustment procedures for right- and left-hand rotation gearcases. Incorrect tooth-contact setup can damage or chip the forward and pinion gears.

Factory Specifications and Service Equipment

Reference material includes important-fastener and general-bolt torque tables, component clearances, wear limits, valve data, pressure-test specifications, electrical resistance and output checks, lubricant and fluid data, and adjustment values.

Listed tools include the 09930-89290 18-pin and 34-pin ECM test-cord set and 09912-58442 fuel-pressure gauge. PTT and gearcase work calls for tools such as the 09944-09810 and 09944-09820 PTT cap tools, 09951-09530 gear-adjusting gauge, and 09952-09310 backlash indicator tool.

Service work can involve pressurized fuel, lifting and supporting the outboard, battery-powered cranking tests, and propeller or lower-unit hazards; follow the manual's isolation and support precautions and use appropriate marine-service equipment.

A Preview of Tappet and Electrical Test Data

For the covered engines, the tappet-clearance section specifies a cold-engine intake and exhaust clearance of 0.23–0.27 mm. Tappet-shim selection charts accompany the adjustment material.

Electrical service data lists fuel-injector resistance of 10–14 Ω and CKP sensor resistance of 168–252 Ω, both at 20 °C. The related diagnostic sections provide connector references and circuit checks alongside these test specifications.
