2006 Polaris Predator 50/90, Sportsman 90 Service Manual

This 2006 Polaris Predator 50/90 and Sportsman 90 service manual covers maintenance, diagnostics, and repair procedures with detailed diagrams. Ref: 9920224

4.6starstarstarstarstar_half(5)
visibility Preview Available
Polaris 2006 Polaris Predator 50/90, Sportsman 90 Service Manual manual page preview - page 1 of 126

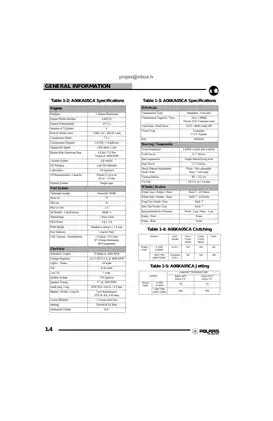

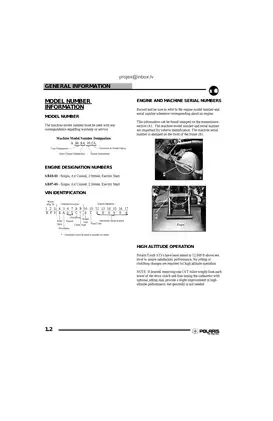

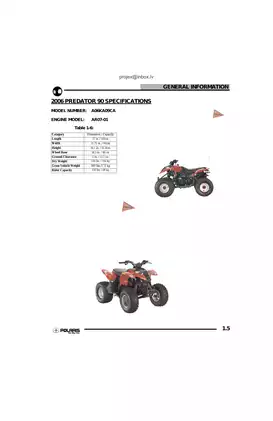

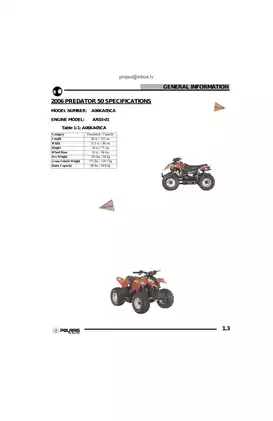

Sample pages from the 2006 Polaris Predator 50/90, Sportsman 90 Service Manual manual

Polaris 2006 Polaris Predator 50/90, Sportsman 90 Service Manual manual preview page 1 - thumbnail
Polaris 2006 Polaris Predator 50/90, Sportsman 90 Service Manual manual preview page 3 - thumbnail
Polaris 2006 Polaris Predator 50/90, Sportsman 90 Service Manual manual preview page 4 - thumbnail
Polaris 2006 Polaris Predator 50/90, Sportsman 90 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$15.95 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Polaris Models Covered & Key Technical Specifications

Models: Polaris Predator 50, Polaris Predator 90, Polaris Sportsman 90
Sub-models / Variants: A06KA05CA (Predator 50), A06KA09CA (Predator 90), A06FA09CA (Sportsman 90)
Build Years: 2006
Technical Data:

  • Engine displacement: 49.3 cc (Predator 50), 89.2 cc (Predator 90/Sportsman 90)
  • Engine configuration: 2-stroke horizontal, single-cylinder, air-cooled
  • Transmission: Automatic C.V.T. system (Predator 50: Forward-only; Predator/Sportsman 90: Forward-Neutral-Reverse)
  • Spark plug gap: 0.9 mm (0.036 in)
  • Cylinder head nut torque: 19 Nm (14 ft-lbs)
  • Engine idle speed: 1200 RPM ± 200
  • Final drive: #428 Chain
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31966 / Jessica Sanchez
File Size:
14.37 MB
File Type:
PDF
Language:
English
Pages:
126
Printable:
Yes
Category:
ATV
Last updated / verified
Feb 7, 2025

Polaris Manual Features & Content Preview

Technical Scope for the 2006 Polaris Predator 50/90 and Sportsman 90

  • Covers the 2006 Polaris Predator 50, 2006 Polaris Predator 90, and 2006 Polaris Sportsman 90, detailing engine, chassis, and fuel system configurations
  • Official OEM manufacturer publication P/N 9920229, first edition 2006
  • Contains 15 detailed specification tables, 35+ exploded-view assembly diagrams, and 12 engine torque-specification charts
  • Files are laid out for standard letter and A4 printing
  • Full-text search finds any part number in seconds
  • This 126-page reference is the primary documentation required for maintenance of the youth-model 2-stroke engine and CVT drivetrain configurations

What the Manual Documents:

The 2006 Polaris Predator 50/90 and Sportsman 90 manual provides comprehensive maintenance guidelines for the 50cc and 90cc youth ATV platforms. Technical segments span periodic maintenance intervals, including carburetor jetting requirements for high-altitude operation, and detailed lubrication schedules for the drive chain and front A-arms. Further chapters describe the disassembly of the engine and CVT housing, specifying torque values for critical fasteners like cylinder head nuts and flywheel components, alongside procedures for transmission and shift-linkage service.

Specification Highlights:

The publication provides engine performance metrics such as idle speed and cylinder compression limits. Intake manifold bolts are documented with a torque value of 12 Nm. The Predator 50 cylinder compression ranges from 110–130 psi. The transmission oil refill capacity for the 90cc models is 480 ml of Polaris AGL lubricant. Fuel system data includes float heights and jetting options for varied ambient temperatures. For those performing complex overhauls, the document includes a thorough guide on the what an OEM service publication covers to support component identification.

Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. This is an official 126-page Polaris OEM service manual covering the 2006 Predator 50/90 and Sportsman 90, documenting engine, chassis, electrical, and fuel-system specifications for these specific youth-model ATVs.

Manual FAQ, Purchase & Download Details

Which electrical system components and specification parameters are covered in the 2006 service manual? keyboard_arrow_down

Manual includes electrical specification tables for the alternator output, voltage regulator settings, battery types, ignition timing, and spark plug gap parameters for the covered Predator and Sportsman models.

Are the 2006 Polaris Predator 50, Predator 90, and Sportsman 90 all included in this document? keyboard_arrow_down

Document serves as a comprehensive service manual bundle covering the 2006 Predator 50, Predator 90, and Sportsman 90 models. It provides model-specific specification tables and general information for each of these identified machine variants.

Is there a reference for standard fastener torque specifications included in the general information section? keyboard_arrow_down

Chapter 1 contains a dedicated standard torque specifications table that lists torque values categorized by fastener thread size.

What details regarding fluid capacities and lubricant charts appear in this manual? keyboard_arrow_down

Manual contains comprehensive specification tables for each model, which list transmission lubricant capacities, recommended oil types, and fuel requirements. These tables provide the necessary technical data for identified systems, including the engine and drivetrain components. General lubricant information and product numbers for Polaris-specific maintenance items are also included in Chapter 2.
