1971–1977 Suzuki GT750 Engine Service Manual

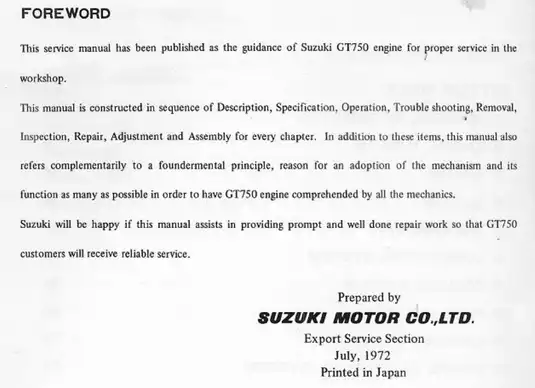

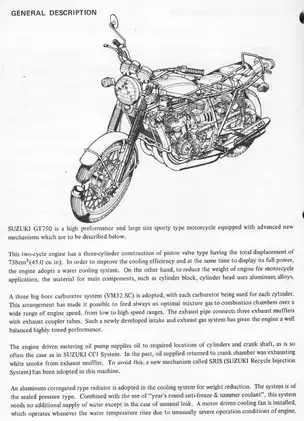

This Suzuki GT750 Engine Service Manual was prepared by Suzuki Motor Co., Ltd., Export Service Section, and printed in July 1972. It details the operation, maintenance, and repair of Suzuki's three-cylinder, two-stroke power plant and its related systems. Chassis repair is outside this engine volume.

Text search and diagram detail: PDF text search and embedded bookmarks are not available. Small labels in the charging, ignition, and electrical test diagrams require zooming.

• Engine repair: On-frame service, engine removal, crankcase disassembly, cylinder and piston inspection, crankshaft checks, and reassembly procedures.

• Clutch and transmission: Multi-plate wet clutch repair and adjustment, transmission inspection, gear shifting mechanism service, and kick starter assembly.

• CCI lubrication and SRIS: Oil-pump removal, oil-line bleeding, pump adjustment, check-valve inspection, and early and later SRIS piping arrangements.

• Cooling system: Radiator inspection and cap testing, thermostat testing, water-pump service, coolant selection, and system flushing.

• Fuel system: VM32SC carburetor disassembly, synchronization, float-level adjustment, and automatic diaphragm fuel petcock inspection.

• Engine electrical diagnosis: Starter-motor and starter-clutch checks, alternator output testing, voltage-regulator and silicon-rectifier checks, and contact-breaker timing adjustment.

Written for workshop mechanics, the manual combines repair procedures with explanations of how the GT750's systems work and identifies the special tools and test equipment involved.

Crankcase, Clutch and Transmission Repair

The engine chapters distinguish work possible with the engine in the frame from major teardown. Inspection coverage extends to the one-piece water-cooled cylinder block, piston and cylinder wear, keystone rings, connecting-rod bearings, crankshaft runout, and oil seals.

Parts matching: Assembly notes distinguish R- and L-marked pistons. A color-matching chart links crankcase markings to the first and second driven gears and kick starter drive gear, helping mechanics select compatible replacement combinations during transmission repair.

The clutch cross-section shows the release mechanism and lubrication path. Factory tables provide clearances, wear limits, tightening torques, and separate transmission-oil fill specifications for routine changes and assembly after overhaul. Listed tools include Rotor Remover 09930-33110 and Clutch Sleeve Hub Holder 09920-53110.

Follow the manual's battery-disconnection precautions before engine removal.

CCI Oil Pump and SRIS Variations

The lubrication chapter explains the CCI pump's oil supply to the cylinders and crankshaft, alongside the SRIS (Suzuki Recycle Injection System) layout. The “SRIS type 1” and “SRIS type 2” diagrams distinguish the original and revised routing, with press-fitted versus threaded crankcase check valves.

Suzuki treats the CCI pump as a non-disassembly unit and specifies assembly replacement for internal faults. Its repair notes warn that internal disassembly can reduce pump efficiency and lead to engine trouble.

Water Pump, Radiator and Thermostat

The pressure-forced cooling-system section covers radiator mounting-shim selection, thermostat operation, and water-pump seal inspection. An exploded water-pump view identifies the holder, shaft, impeller, and sealing components.

The assembly notes warn that incorrect pump-holder alignment can break the holder and cause leakage.

VM32SC Carburetors and Exhaust Couplers

The carburetor setting table identifies body marks 31010R, 31010M, and 31010L, including the center carburetor's different main and needle jets. Separate starter, slow, main, and float-system descriptions support troubleshooting of hard starting, rough idling, overflow, and poor acceleration.

The exhaust section covers muffler removal and installation, exhaust coupler tubes, and inspection of their seals, gaskets, and O-rings.

Starting, Charging and Ignition Tests

Electrical coverage goes beyond wiring layouts to starter-motor armature, field-coil, brush, and relay inspections. The “Charging system wiring” and “GT750 ignition system wiring diagram” illustrations accompany component tests and fault tables.

Ignition-coil and condenser tests are covered, along with setting ignition timing with a dial indicator. Cylinder-specific gauge readings account for the different spark-plug-hole angles. Thermo-switch and temperature-gauge service belong to the separate body electrical documentation.

English PDF and Included Reference Pages

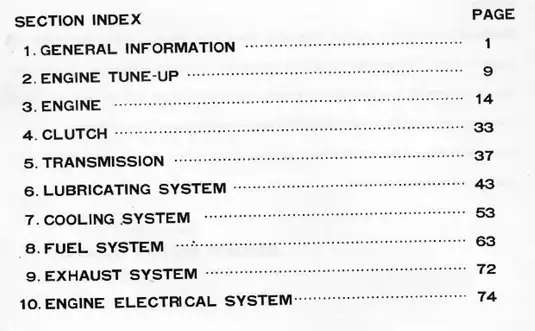

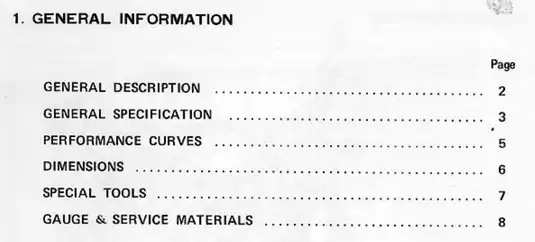

One printable English file is supplied as a 105-page PDF. That total already includes the cover, foreword, overall section index, and eight separate chapter contents pages (11 pages combined), plus 94 pages of technical content.
