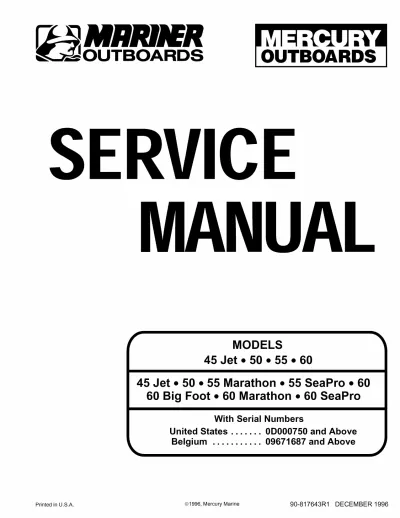

1996 Mercury 45 Jet, 50, 55 Marathon, 55 SeaPro, 60, 60 Big Foot, 60 Marathon, and 60 SeaPro Outboard Motors Service Manual (P/N 90-817643R1)

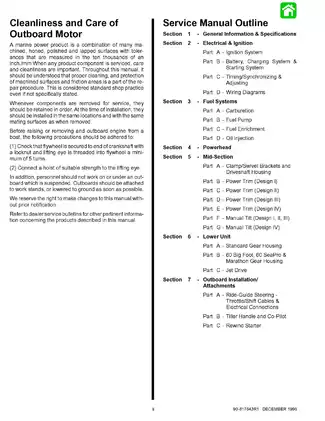

The December 1996 Mercury factory service manual, P/N 90-817643R1, covers the 45 Jet, 50, 55 Marathon, 55 SeaPro, 60, 60 Big Foot, 60 Marathon, and 60 SeaPro outboards.

• Powerhead repair: Removal and installation, crankcase disassembly, piston and connecting-rod inspection, reed-block service, reassembly, and test-run procedures.

• Electrical diagnosis: ADI ignition tests, charging-system troubleshooting, electric starter overhaul, timing adjustments, and model-specific wiring diagrams.

• Fuel and oil injection: WME carburetor rebuilding, fuel-pump testing, enrichener diagnosis, fixed- and variable-ratio oil-pump systems, bleeding, and synchronization.

• Power trim and manual tilt: Designs I–IV, hydraulic fault tracing, electrical checks, cylinder and seal service, reassembly, and bleeding procedures.

• Lower units: Standard and Big Foot/SeaPro/Marathon gear-housing overhaul, water-pump service, gear adjustment, pressure testing, and Jet Drive repair.

• Installation and controls: Clamp/swivel brackets, driveshaft housing, Ride-Guide steering, throttle/shift cables, tiller handles, Co-Pilot, and rewind starter service.

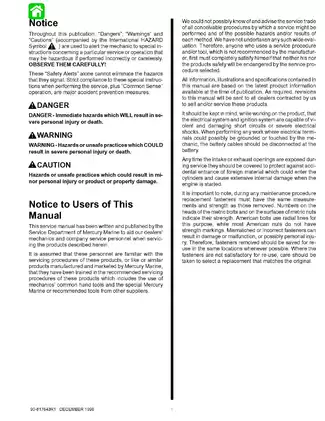

Written for Mercury Marine dealer mechanics and company service personnel, this manual assumes training in outboard servicing and familiarity with standard and special tools.

Powerhead Repair and Maintenance

The powerhead chapter goes beyond removal and installation. It covers cylinder inspection and honing, piston and ring assessment, crankshaft inspection, connecting-rod cap alignment, and crankcase assembly. Component-specific torque sequences accompany the work.

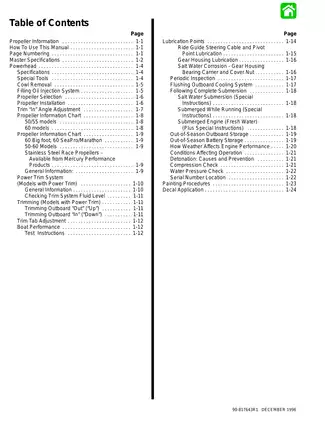

Routine maintenance includes lubrication points, periodic inspections, cooling-system flushing, submersion recovery, and out-of-season storage. The Propeller Information Chart and example Boat Test Chart support propeller selection and evaluation of boat performance.

ADI Ignition, Charging, and Starting Circuits

The Ignition System Test Chart separates stator applications by serial number and component identification. Together with the DVA tests, these distinctions help technicians select the appropriate test specifications before making stator, adapter-module, or switch-box replacement decisions. The listed diagnostic equipment includes Direct Voltage Adaptor 91-89045.

Electrical coverage includes stator resistance checks, rectifier tests, starting-circuit troubleshooting, and starter-motor inspection. Wiring diagrams distinguish regulated and unregulated configurations, manual and electric starting, and COMMANDER remote controls.

The RED-stator section explains why its adapter module matters: without it, stator output exceeds the switch box’s voltage capability and risks damage.

WME Carburetors and Oil Injection

The carburetion chapters feature exploded views, removal and rebuilding procedures, and troubleshooting for flooding, rough idle, surging, and restricted fuel delivery. WME-series tables identify main and bowl-vent jets, with separate high-altitude jetting information.

Oil-injection coverage distinguishes fixed- and variable-ratio pumps. It includes carburetor/oil-pump synchronization, bleeding, reservoir service, and warning-system diagnosis, alongside the specified Quicksilver TC-W II or TC-W3 oil recommendations. The bleeding section warns that trapped air in either oil-pump hose can damage the engine.

Power Trim and Manual Tilt

Power Trim Flow Diagrams and Hydraulic System Troubleshooting Flow Charts explain the circuits behind loss of trim movement, leak-down, and failure to hold position. The procedures distinguish hydraulic faults from electrical problems and cover the different trim and manual-tilt designs.

Repair scope depends on the component. The Design I trim oil pump is not rebuildable, the Design IV trim motor is replaced as an assembly, and the manual-tilt accumulators are not serviceable. These limits sit alongside the documented cylinder, seal, valve, and bleeding procedures.

Gear Housings, Jet Drive, and Steering

Separate gear-housing chapters cover the standard lower unit and the 60 Big Foot/SeaPro/Marathon assembly. They detail bearing and seal replacement, pinion positioning, forward-gear backlash, water-pump impeller service, and gearcase pressure testing.

Gear-lubricant inspection distinguishes yellowish aerated oil from water contamination. The Big Foot/SeaPro/Marathon section also explains that assembly lubricants can produce a creamy-white appearance, so color alone does not establish water intrusion.

The Jet Drive chapter adds impeller-clearance adjustment, liner replacement, bearing-carrier repair, and reverse-gate cable adjustment. Installation sections address single- and dual-outboard Ride-Guide arrangements, tiller controls, Co-Pilot installation, and rewind-starter interlock adjustment.

Working on marine powerheads carries inherent mechanical risks. Follow the factory warnings for rotating components, ignition voltage, and pressurized trim/tilt systems.

A Preview of Powerhead Dimensions and Timing Data

The powerhead specifications list a stroke of 2.520 in. (64.008 mm). Reed inspection specifies a maximum opening of 0.020 in. (0.50 mm) between the reed and reed block.

Maximum ignition advance at cranking speed is listed as 24° BTDC for 50/60 models and 18° BTDC for 55/60 SeaPro/Marathon models. These figures are presented separately from the running-speed timing specifications.

PDF Search, Bookmarks, and Included Pages

Text navigation and wiring detail: The service chapters contain searchable text and embedded section bookmarks. The cover, two introductory pages, and some diagram lettering are not searchable. Dense wiring diagrams require enlargement to read small wire-color codes and connector numbers comfortably.

Supplied as one printable, English-language 565-page PDF, including the original cover, two introductory pages, and five notes pages.
