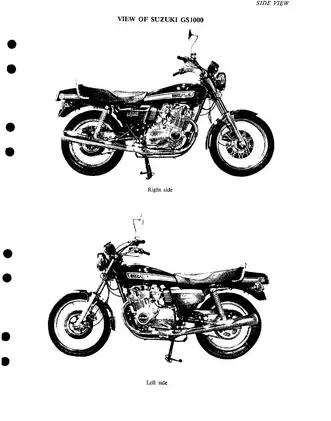

Suzuki GS1000 / GS1000G 1977–1980 Service Manual Set (P/N 99000-85850-4E3)

The supplements describe model-specific changes and refer back to the base manual for unchanged systems. Together, they distinguish the earlier chain-drive configurations from the revised ET/ST models and the shaft-drive G/L versions.

PDF Access and Diagram Detail

Search, navigation and wiring labels: PDF text search is not available, and there are no embedded bookmarks. Small wiring-diagram labels require zooming; the checked component labels and wire-color codes remain readable when enlarged.

One printable English PDF totals 477 pages, including the publications above and one blank final page. All covers, 15 blank pages, four ruled notes pages and two duplicated table pages are already included in that total.

Engine, Electrical and Shaft-Drive Service

These selected contents show the main repair areas rather than reproduce the complete table of contents. Further topics include battery activation and headlamp aiming.

• Engine repair: Step-by-step engine removal and remounting, cylinder-head and cam-chain service, valve-seat work, piston inspection, crankcase separation and crankshaft checks.

• Clutch and transmission: Clutch disassembly, plate and spring inspection, gearshaft assembly, shift-fork checks and model-specific transmission installation details.

• Fuel and emission systems: VM26SS and BS34SS carburetor operation, disassembly, float and fuel-level checks, synchronization and vacuum-operated fuel-cock service.

• Electrical diagnosis: Breaker-point and transistorized ignition tests, charging-system checks, starter diagnosis, instrument testing and self-canceling turn-signal troubleshooting.

• Brakes and chassis: Master-cylinder and caliper repair, brake bleeding, pad replacement, wheel and tire service, pneumatic front forks, steering bearings and swingarm service.

• Shaft-drive overhaul: Secondary and final bevel-gear disassembly, bearing-preload adjustment, shim selection, backlash measurement, tooth-contact checks and propeller-shaft installation.

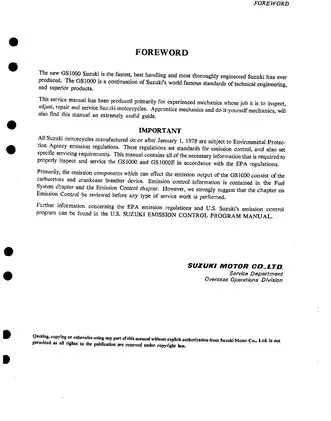

Suzuki wrote this material primarily for experienced mechanics and also identifies apprentice and do-it-yourself mechanics as potential users; internal engine, brake and bevel-gear work requires suitable workshop skills, precision measuring equipment and dedicated service tools.

Engine Inspection and Repair Detail

Compression checks, piston-to-cylinder tolerances, camshaft measurements and valve-and-seat inspection criteria support decisions about worn components during a major repair. The engine chapters connect those measurements with removal, inspection and reassembly procedures.

The lubrication section includes oil-pump inspection and pressure testing. Transmission instructions distinguish gear orientation, bearing locations, retaining rings and oil-passage alignment rather than relying solely on exploded assembly drawings.

Carburetor and Ignition Differences

The ET/ST supplement compares the earlier GS1000C/GS1000N configurations with the revised models. It documents the change from slide carburetors and breaker-point ignition to BS-series constant-velocity carburetors, transistorized ignition and a revised charging system.

Carburetor troubleshooting connects starting, idle, high-speed and overflow symptoms with likely faults. Circuit descriptions and fuel-level checks help separate mixture problems from compression or ignition faults before carburetor adjustments are considered.

The emission-control sections explain the special mixture-control components. Factory-set air and pilot screws are identified separately from routine synchronization and idle-speed adjustments.

Model-Specific Chassis and Instruments

The S and L sections add their distinct instruments, cables and body hardware, including S-model cowling and oil-temperature-meter information and L-model gear-position-indicator diagnosis. Fork, wheel and brake specifications remain tied to the relevant configuration.

The front fork contains compressed air, and the manual calls for bleeding it before removal. Brake-fluid procedures also warn that spills attack painted, plastic and rubber surfaces, so fork and hydraulic-brake repair should be performed with the motorcycle securely supported and surrounding finishes protected.

Bevel Gears and Final-Drive Assembly

The G/L material covers the shaft-drive transmission layout, revised lubrication paths, rear-wheel removal and swingarm-bearing work. Its GX update supplies revised specifications, charging-system checks, cable routing and a separate wiring diagram.

Secondary and final bevel gears are treated as matched drive/driven sets. Mixing gears or losing the original shim locations can compromise gear loading; the manual coordinates preload, backlash and tooth-contact checks with housing orientation and final assembly.

Diagnostic Drawings and Service Tools

Illustrations include the engine lubrication-flow schematic, self-canceling turn-signal circuit and fault chart, transistorized-ignition diagram, charging-system diagrams, bevel-gear tooth-contact patterns and final-gear-case breather circuit. Separate model-group wiring diagrams and cable-routing sheets support electrical fault tracing.

The four-page base tool catalog contains 62 numbered entries. References include carburetor balancer 09913-13121, compression gauge 09915-64510, oil-pressure gauge 09915-74510, pocket tester 09900-25002 and front-fork air gauge 09940-44110. Shaft-drive procedures add application-specific tools such as backlash measuring tool 09924-34510.

Valve-Clearance and Bevel-Gear Specification Examples

The base GS1000 maintenance section specifies intake and exhaust tappet clearance of 0.03–0.08 mm with the engine cold. Its shim-selection chart accompanies the clearance-checking and adjustment procedures.

For the GS1000GT/GLT shaft-drive material, secondary driven-gear backlash is specified at 0.08–0.13 mm. The associated housing-shim tables and tooth-contact illustrations show how the manual supports assessment of the assembled gearset.
