2002 Mercury 150/175/200 EFI Outboard Service Manual (P/N 90-883728)

This Mercury Marine service manual, 90-883728 (July 2001), covers the 2002 Mercury 150 EFI, 175 EFI, and 200 EFI outboards. Long- and extra-long-shaft configurations starting at serial number 0T409000 are covered, including the V-6 powerhead and electronic fuel management system.

Text search, bookmarks, and wiring detail: Service text is searchable, with embedded bookmarks for sections, procedures, and diagrams. Some wiring labels are part of the graphics and cannot be searched. Large wiring sheets require zooming to read small wire codes and connector pin numbers.

• EFI diagnosis: Fuel injection diagnostic flow charts, pressure testing, Vapor Separator Tank (VST) service, injector load tests, and fuel rail leakage checks.

• Ignition and starting: Digital inductive ignition testing, alternator diagnosis, and overhaul procedures for centrifugal Bendix and solenoid-driven Bendix starters.

• Powerhead repair: Removal, disassembly, cylinder and piston inspection, crankshaft service, reed-block inspection, reassembly, and installation.

• Cooling and oil injection: Thermostat testing, water-pump inspection, cooling-pressure diagnosis, oil-pump priming, reservoir air purging, and oil-warning troubleshooting.

• Gearcase overhaul: Separate Right Hand Non-Ratcheting and Left Hand Non-Ratcheting sections, with pinion-depth shimming and rotation-specific backlash procedures.

• Power trim and mounting: Hydraulic repair, up/down pressure checks, trim-motor and relay testing, and clamp/swivel bracket and driveshaft housing service.

• SmartCraft instruments: System Monitor and tachometer/speedometer calibration, warning displays, gauge test specifications, and Engine Guardian Protection System information.

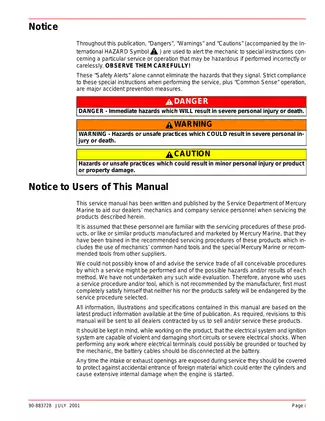

Mercury wrote this manual for its dealers' mechanics and company service personnel, assuming training in outboard service procedures and familiarity with common shop tools and the specified special tools.

EFI Testing and Oil Injection

The low- and high-pressure fuel-route flow charts and Fuel Rail Electrical/Fuel Determination chart separate fuel-supply problems from electrical or mechanical faults. Digital Diagnostic Terminal (DDT) readings, sensor voltage specifications, and output load tests help narrow the cause before replacing an Electronic Control Module (ECM) or injector.

VST disassembly, pressure-regulator service, and Throttle Position Sensor (TPS) and MAP sensor testing are covered. Detonation-control testing applies to the 200 EFI only. Ignition timing and idle speed are ECM-controlled; the TPS is not adjustable.

Oil-injection coverage distinguishes priming after oil-system repair from priming that also resets engine break-in. The manual warns that running the fuel pump dry during the oil-priming process can damage it.

Diagnostic equipment includes DDT 91-823686A2 and adapter harness 84-822560A5. Full DDT operating procedures are cross-referenced to the separate DDT Reference Manual.

Electrical Diagnosis and SmartCraft Setup

The Ignition Troubleshooting and Fault Chart addresses no-start, rough-running, and reduced-power complaints. Starter Circuit Troubleshooting Flow Charts distinguish early centrifugal Bendix starters from the later solenoid-driven type.

SmartCraft coverage extends to CAL1/CAL2 settings, tank and trim calibration, and warning-horn signals. Wiring diagrams cover instrument connections and single- and dual-outboard installations; the Color Diagrams section adds connector views, an Oil & Fuel Flow Diagram, and a Water Flow Diagram.

Powerhead Inspection and Cooling

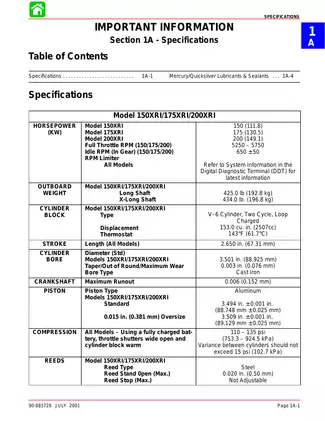

Internal engine repair data includes cylinder-bore honing and inspection, piston-ring combinations, crankshaft bearings, and reed opening limits. The cylinder block and crankcase cover form a matched, line-bored assembly. Component torque tables, compression specifications, piston wear limits, and Mercury/Quicksilver lubricant and sealant part references support rebuild work.

Cooling diagnosis links water-pressure symptoms to thermostats, the poppet valve, water-pump output, and restricted passages. Routine maintenance schedules and storage preparation are also included.

Standard- and Counter-Rotation Gearcases

Lower-unit teardown covers bearing carriers, propeller shafts, shift components, and water pumps. The manual distinguishes 2.00:1 and 1.87:1 gear ratios and their backlash specifications. Reverse backlash is checked but not adjustable in the right-hand gearcase; the left-hand section specifies shim adjustment.

An installation caution explains how trapped lubricant at the driveshaft tip can prevent full engagement and damage the powerhead or gear housing when mounting nuts are tightened.

Power Trim, Mid-Section, and Steering

Exploded views identify mid-section, gear housing, and power trim/tilt components. Hydraulic and electrical troubleshooting are separated, and checks with Power Trim Test Gauge Kit 91-52915A6 verify operating pressures after repair. Trim-rod seals, tilt-ram overhaul, motor testing, and system priming are covered.

Ride Guide steering coverage addresses single- and dual-outboard arrangements, with cable, link-rod, and mounting-kit installation details.

Servicing pressurized EFI and digital ignition systems involves fuel and electrical hazards. Review the manual's safety precautions and factory torque sequences before teardown or diagnostic work.

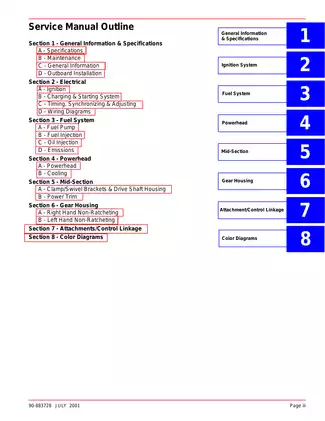

English PDF and Included Pages

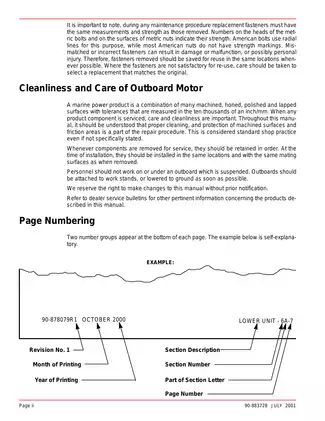

Supplied as one printable, English-language 631-page PDF: 1 cover page, 3 introductory pages, 607 pages across Sections 1–7, and 20 pages in Section 8, Color Diagrams. The 10 Notes pages and all diagram title and legend sheets are already included in that total.
