MERCURY MARINE MCM/MIE V8 (1993-1997) Service Manual

Comprehensive workshop manual with repair, diagnostic, and troubleshooting data for Mercury Marine MCM/MIE V8 engines (1993-1997). Includes diagrams and specifications for 5.0L, 5.7L, and 350 Magnum models.

5.0starstarstarstarstar(1)
visibility Preview Available

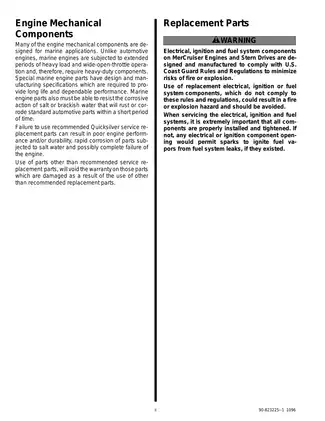

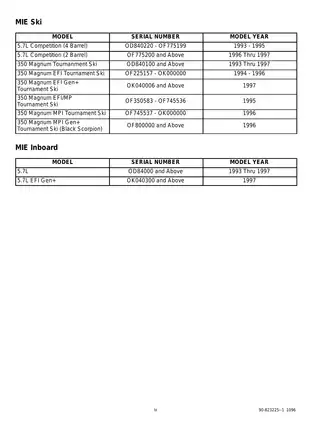

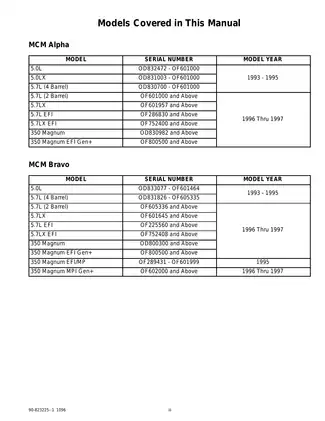

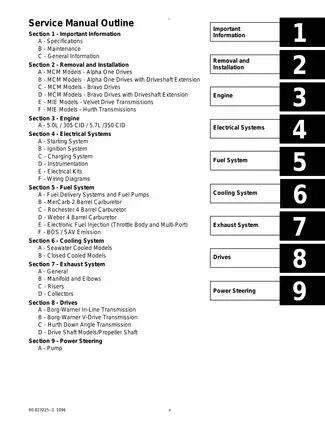

Mercury MERCURY MARINE MCM/MIE V8 (1993-1997) Service Manual manual page preview - page 1 of 966

Sample pages from the MERCURY MARINE MCM/MIE V8 (1993-1997) Service Manual manual

Mercury MERCURY MARINE MCM/MIE V8 (1993-1997) Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$13.29 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Mercury Models Covered & Key Technical Specifications

Models: 5.0L, 5.0LX, 5.7L (4 Barrel), 5.7L (2 Barrel), 5.7LX, 5.7L EFI, 5.7LX EFI, 350 Magnum, 350 Magnum EFI Gen+, 350 Magnum EFI/MP, 350 Magnum MPI Gen+, 5.7L Competition (4 Barrel), 5.7L Competition (2 Barrel), 350 Magnum Tournament Ski, 350 Magnum EFI Tournament Ski, 350 Magnum EFI Gen+ Tournament Ski, 350 Magnum EFI/MP Tournament Ski, 350 Magnum MPI Tournament Ski, 350 Magnum MPI Gen+ Tournament Ski (Black Scorpion), 5.7L, 5.7L EFI Gen+
Sub-models / Variants: Alpha, Bravo, MIE Ski, MIE Inboard, 2 Barrel, 4 Barrel, EFI, MPI, Tournament Ski
Build Years: 1993–1997
Serial Numbers: OD832472–OF601000, OD831003–OF601000, OD830700–OF601000, OF601000 and Above, OF601957 and Above, OF286830 and Above, OF752400 and Above, OD830982 and Above, OF800500 and Above, OD833077–OF601464, OD831826–OF605335, OF605336 and Above, OF601645 and Above, OF225560 and Above, OF752408 and Above, OD800300 and Above, OF289431–OF601999, OF602000 and Above, OD840220–OF775199, OF775200 and Above, OD840100 and Above, OF225157–OK000000, OK040006 and Above, OF350583–OF745536, OF745537–OK000000, OF800000 and Above, OD84000 and Above, OK040300 and Above
Technical Data:

  • Number of cylinders: V-8
  • Displacement: 305 CID (5.0L) or 350 CID (5.7L)
  • Electrical system: 12V Negative Ground
  • Compression ratio: 9.1:1 to 9.4:1
  • Idle RPM: 600–700 RPM
  • Max RPM (W.O.T.): 4200–5000 RPM
  • Oil pressure (2000 RPM): 30–60 PSI (207–414 kPa)
  • Spark plug gap: .035–.045 in. (0.9–1.1 mm)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27441 / Elizabeth Morgan
File Size:
19.08 MB
File Type:
PDF
Language:
English
Pages:
966
Printable:
Yes
Category:
Inboard-Engines-Sterndrives
Last updated / verified
Jan 6, 2026

Mercury Manual Features & Content Preview

1993–1997 Mercury Marine MCM/MIE V8 Service Manual

  • Covers 1993–1997 Mercury Marine MCM and MIE V8 sterndrives and inboards, including 5.0L, 5.7L, and 350 Magnum variants
  • Original OEM publication P/N 90-823225--1, 1096 edition
  • Contains 56 individual component exploded-view diagrams and 39 detailed maintenance interval tables
  • File delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Stored against your account so you can retrieve it after a hard-drive loss
  • Laid out for standard letter and A4 printing
  • This 966-page official factory manual serves as the primary technical reference for the 1993–1997 Mercury Marine MCM/MIE V8 engine product line

Technical Documentation Scope

This Mercury Marine MCM/MIE V8 service guide documents mechanical, electrical, and fuel-related maintenance for the specified 1993–1997 engine line. The text includes specific procedures for component removal and installation across various drive configurations, such as the Alpha One and Bravo series, as well as Velvet Drive and Hurth transmissions. Topics encompass engine cooling systems, exhaust manifold maintenance, ignition system troubleshooting, and fuel injection diagnostics. The manual provides reference tables for fluid capacities, torque settings, and spark plug requirements to support routine servicing.

Specification Highlights

The 1993–1997 Mercury Marine MCM/MIE V8 manual contains comprehensive technical specifications for tuning and repair. Crankcase oil capacity is documented at 5.5 U.S. quarts for the majority of MCM models. Intake valve and ignition timing values are listed for both standard and fuel-injected (Gen+) engine variants. Cylinder compression pressure is specified at 150 PSI for standard configurations in the tuning table. Spark plug gap requirements vary by model, with 0.035 in. standard and 0.045 in. for certain Gen+ engines. Cooling system flushing procedures for saltwater versus freshwater applications are detailed to preserve heat exchanger integrity. Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. Refer to what an OEM service publication covers for additional details on structural organization.

An official 966-page Mercury Marine factory service manual covering the 1993–1997 MCM and MIE V8 range, documenting engine, cooling, electrical, fuel, and drive system specifications for the Alpha and Bravo unit builds.

Manual FAQ, Purchase & Download Details

Does this manual include data on fluid capacities and lubricant specifications for the covered MCM and MIE engine models? keyboard_arrow_down

Yes, the manual contains detailed fluid capacity and specification tables for all covered models. It also includes maintenance schedules that reference specific lubricant and cooling system data.

What is the format of this service manual? keyboard_arrow_down

Publication is provided as a digital PDF document that can be viewed on various electronic devices.

Which engine systems and mechanical components are detailed in the service manual sections? keyboard_arrow_down

Document covers a wide range of systems, including engine mechanical components, electrical systems, fuel delivery, cooling systems, exhaust assemblies, and power steering. It also provides exploded view diagrams for parts identification and clear references to serial number ranges for specific engines. These tables allow users to look up component information based on their model year or engine series.

Can I find wiring diagrams and electrical system references for the MCM and MIE models in this document? keyboard_arrow_down

Yes, Section 4 of the manual includes electrical system coverage, featuring wiring diagrams, instrumentation references, and details on ignition and charging systems.

Customer Reviews

Read what our customers say about this Mercury Inboard-Engines-Sterndrives manual and share your own experience.
