1994–2005 JCB 8052 & 8060 Hydraulic Excavator Service Manual (P/N 9803/9290)

The 1994–2005 JCB 8052 and 8060 hydraulic excavator service manual, 9803/9290, contains Issue 1 and Issue 2 pages covering machine maintenance, fault diagnosis, and repair.

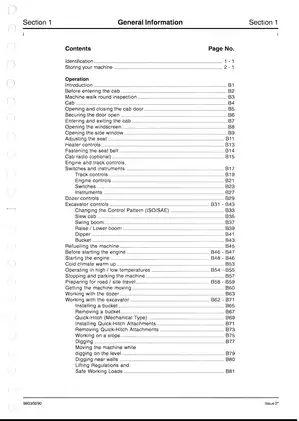

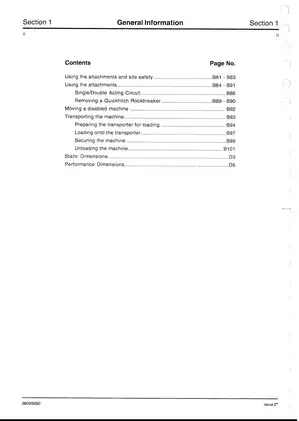

Chapter navigation and diagram detail: Embedded PDF bookmarks link to the main sections. The technical pages are not text-searchable. Small wiring codes and connector numbers require zooming.

• Hydraulic diagnosis: Load-sensing pump checks, pressure-maintenance and relief-valve testing, compensator shuttle-network diagnosis, and fault-finding charts for excavator and tracking functions.

• Hydraulic component repair: Pump, track motor, control valve, cylinder, and rotary coupling removal, inspection, and reassembly procedures, with component-specific service data.

• Drive and running gear: Track and slew gearbox service, parking-brake components, steel/rubber track conversion, roller rebuilds, and idler and recoil-unit work.

• Body and attachments: Bucket linkage, dipper, boom, kingpost, and dozer removal, slew-ring alignment, mechanical Quick-Hitch operation, and bonded cab-window replacement.

• Electrical testing: 8052 charging-system and starter tests, model-specific wiring diagrams, fuse layouts, harness connections, and battery condition checks.

• Controls and maintenance: ISO/SAE selection, servo hand-controller operation, control-cable adjustment, model-specific fuel bleeding, lubrication charts, service schedules, and fluid-capacity tables.

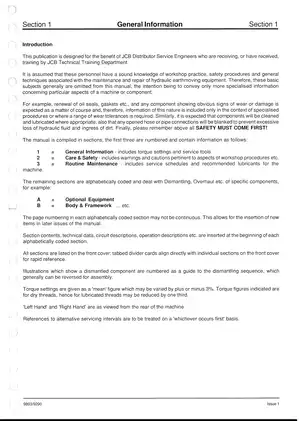

Written for JCB distributor service engineers receiving or having completed JCB technical training, this manual assumes a sound knowledge of workshop practice and hydraulic earthmoving equipment repair.

Hydraulic Fault Diagnosis and Component Service

Separate hydraulic data and circuit drawings distinguish the 8052’s nine-section valve block from the 8060’s ten-section block, which adds an auxiliary spool. Single- and double-acting attachment circuits are covered, along with the ISO–SAE hydraulic schematic and wiring harness.

The troubleshooting charts separate faults affecting all services, individual functions, servo controls, and tracking. Return-flow comparisons at the rotary coupling and track motor help locate internal leakage before a mechanic commits to dismantling either assembly.

Pump repair includes drive-coupling work, shaft-seal replacement, and bearing-preload setting. The replacement section warns that starting an unprimed pump can cause irreparable damage.

Valve service covers load-sense, servo, auxiliary relief, anti-cavitation, and flow-control cartridges. Cylinder procedures address piston-head retention, seal replacement, and reassembly; the hydraulic oil cooler has its own removal and replacement instructions.

Track Drives, Slew Gearbox, and Recoil Units

Track motor sections explain two-speed selection, counterbalance valves, and parking-brake components. Separate track gearbox exploded views and face-seal inspection guidance cover both models. Internal slew gearbox dismantling is specifically documented for the 8052.

The 8052 slew gearbox receives lubrication from the hydraulic system, while the 8060 has a separate oil fill. Track conversion information distinguishes the guide and recoil arrangements for steel and rubber tracks. The manual warns that an incorrect guide configuration can damage the tracks.

Electrical Circuits and Cab Controls

The electrical data distinguishes the 8052’s Bosch starter and A127-55 alternator from the 8060’s Mitsubishi starter and Hitachi alternator. The 8052 Main Harness drawings and tables identify wires, splices, terminals, and connection destinations.

The 8060 Circuit Diagram and Circuit Harness show its glow-plug timer, safety relay, and optional air-conditioning circuits. Cab and canopy harnesses, working-light connections, and servo-controller port identification provide further detail for wiring and control work.

Front Attachments and Cab Repairs

Pivot-pin and bushing inspection limits accompany front-end removal procedures. Short, standard, and long dippers are covered. The dozer section identifies the single-cylinder arrangement used on later 8052 machines and the 8060.

Direct-glazing procedures cover bonded-window removal, frame preparation, and adhesive installation. Slew-ring setup addresses marked race positions, pinion backlash, and tooth clearance. Static and performance dimension charts document the machine’s transport envelope and digging reach.

Mechanical Quick-Hitch instructions cover attachment installation and removal, including the rockbreaker. Rockbreaker service schedules are supplied separately with the attachment.

Engine Maintenance and Repair Scope

Engine data identifies the 8052’s KR 104-22 IDI and the 8060’s 4JG1-S. Separate fuel-bleeding procedures, the 8052 Fuel System Layout, the Engine Lubrication Chart, and coolant information support routine maintenance.

Internal engine repair procedures are assigned to separate English engine manuals 9806/2100 for the 8052 and 9806/2180 for the 8060. Neither engine manual is included in this PDF.

Service schedules extend from daily checks through major scheduled maintenance. Storage and transportation procedures are also included. Torque tables address general fasteners, hydraulic fittings, and major assemblies, while individual component sections supply inspection limits and test specifications.

Follow the manual’s precautions for raised attachments, trapped hydraulic pressure, and spring-loaded recoil units.

English PDF and Included Pages

Supplied as one printable English PDF with 313 pages total: 296 manual pages, a 16-page repeat of the Gearboxes section, and one added cover page. These counts include all 36 blank pages, five of which are within the repeated section.
