Sea-Doo 1998 Sportster/1800, Challenger/1800 & Speedster 1600 Manual Set (P/N 219 100 075)
703 Pages • ZIP Download: 3 Printable PDFs • 147.05 MB
Sea-Doo Models Covered & Key Technical Specifications
Models: Sportster, Sportster 1800, Challenger, Challenger 1800, Speedster 1600
Models & Model Codes:
Sportster — 5614/5619/5634
Sportster 1800 — 5613/5618/5633
Challenger — 5612/5617/5632
Challenger 1800 — 5611/5616/5631
Speedster 1600 — 5615/5630/5635
Sub-models / Variants: Bombardier-Rotax 717 (Sportster: single engine; Sportster 1800 and Challenger: twin engines), Bombardier-Rotax 787 (Challenger 1800 and Speedster 1600: twin engines)
Model Year: 1998
Transmission: Direct drive (all models)
-
System Voltage: 12 Vdc
-
Maximum RPM (Neutral): 3500
-
Maximum RPM (717 Engine): 7000
-
Maximum RPM (787 Engine): 7200
-
Automatic Starter Cutoff RPM: 1000
-
Piston/Cylinder Wall Clearance (New): 0.09–0.11 mm
-
Fuel Sensor Resistance (Highest Listed Step): 89.8 ± 0.9 Ω (Sportster, Challenger); 89.8 ± 2.2 Ω (Sportster 1800, Challenger 1800, Speedster 1600)
Sea-Doo Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 1998 Bombardier Shop Manual, Volume 1 — P/N 219 100 075: Sportster, Sportster 1800, Challenger and Challenger 1800 | 335 |
| 1998 Bombardier Shop Manual, Volume 2 — P/N 219 100 077: Speedster 1600, including its twin-787 installation | 304 |

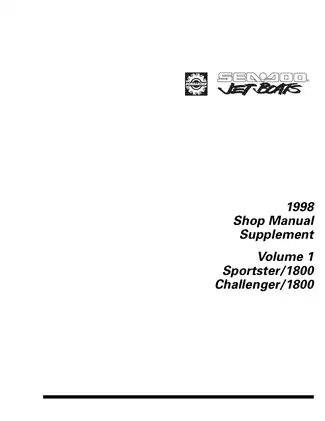

| 1998 Bombardier Shop Manual Supplement to Volume 1 — P/N 219 100 090: Sportster/1800 and Challenger/1800 | 64 |
Use the supplement alongside Volume 1. It supplies the DESS, MPEM, instruments/accessories and wiring material deferred when the main volume went to print, while the main book provides the mechanical repair chapters.
Coverage limits: The hull/deck material supports damage assessment and the specific repairs described; it does not replace a complete fiberglass and gelcoat repair manual. Operating instructions for the MPEM programmer are in its separate guide.
PDF Search, Section Bookmarks and Wiring Sheets
Search and diagram navigation: Chapter text and connector tables are searchable; cover lettering and many wiring-sheet labels are not. Embedded bookmarks open the main sections, but the “Main Menu” entries reference a separate file outside this ZIP. Small wiring labels require zooming, and the model wiring diagrams span adjacent pages.

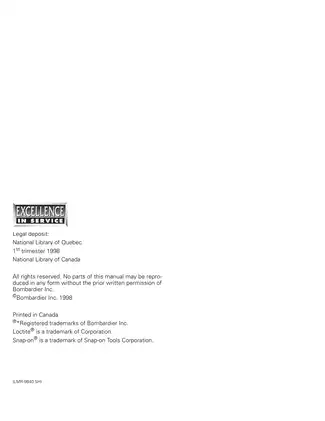

The ZIP download contains three printable PDFs with 703 pages total, including the covers, title/copyright pages and other front matter.
Engine, Jet-Pump and Electrical Service Coverage
The following selected topics outline the repair content. Further sections cover water-flooded engine recovery and winter storage.
-
Engine repair: Step-by-step procedures cover 717 and 787 leak testing, engine removal and installation, top- and bottom-end work, rotary-valve timing, and engine/jet-pump alignment.
-
Fuel and oil injection: Mikuni carburetor disassembly and synchronization, fuel-system pressure testing, and oil-injection pump adjustment, bleeding and delivery checks.
-
Electrical fault finding: MPEM basic and advanced diagnostics, DESS programming requirements, ignition testing, and charging- and starting-system troubleshooting.
-
Jet pumps and drive systems: Impeller and wear-ring inspection, bearing and seal replacement, pump pressure testing, plus drive-shaft, reverse-gate and weedless-system repair.
-
Steering and controls: Cable and helm replacement, nozzle alignment, low-speed steering controls, and throttle/shifter adjustment.
-
Diagrams and service data: Model-specific wiring diagrams, connector location charts, exploded views, torque tables, fluid capacities, wear limits and electrical test specifications.
These manuals were written primarily for manufacturer-trained jet boat technicians already familiar with Sea-Doo service and maintenance procedures.
Engine Inspection and Cooling Circuits
Internal engine coverage extends to crankshaft alignment, piston/cylinder inspection and combustion-chamber volume measurement. The 787 sections also address RAVE exhaust valves.
The Engine Leakage Diagnostic Flow Chart separates cooling-circuit, crankcase and rotary-valve lubrication-reservoir checks. This supports fault isolation before teardown. The service-tool listings identify engine leak tester P/N 295 500 352 and engine-alignment equipment.
Separate 717 and 787 cooling-system views trace water through the engine and exhaust. Differently calibrated exhaust-water fittings can cause engine damage if interchanged; the water-flow regulator’s factory spring calibration must also remain intact. Cooling-system flushing is covered in the maintenance sections.
MPEM Diagnosis and Harness Repair
The MPEM (Multi-Purpose Electronic Module) sections explain antistart operation, automatic power shut-down, neutral-start interlocks and automatic/manual bilge-pump control. Basic and advanced beep-code charts connect fault indications with possible causes and remedies.
The Charging Circuit Schematic and 787 Timing Correction Chart support charging and ignition diagnosis. AMP, Deutsch and Packard connector views identify terminal positions, while the Main Wiring Harness Connections tables relate wire colors to circuits and connector pins. Twin-engine notes explain the additional green tracer identifying starboard circuits.
Instrument testing covers fuel senders, tachometers, low-oil warnings and paddle-wheel speed sensors. The Fuel Level and Resistance tables distinguish model groups, allowing the appropriate sender chart to be selected.

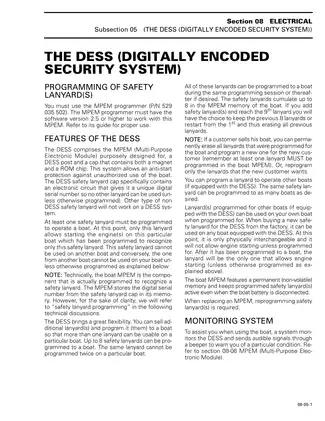

DESS (Digitally Encoded Security System) programming requires MPEM programmer P/N 529 035 502, running software version 2.5 or later. The documentation explains lanyard recognition and reprogramming requirements after MPEM replacement.
Verify circuit power states before electrical testing; sparks can ignite fuel or battery vapors in the bilge.
Propulsion Diagnosis and Hull Repairs
Propulsion troubleshooting distinguishes cavitation from ventilation and identifies potential air leaks around the pump, through-hull fitting and ride shoe. Ride-shoe removal can damage the shoe itself, making the documented checks relevant before that work is attempted.
Hull/deck sections address gelcoat damage, laminate fractures and hull-insert repair. PPG refinishing material includes color references and painting procedures.
Sample Ring, Pump and Oil-Sensor Specifications
Engine inspection: For the covered 717 and 787 engines, the ring end-gap tables list 0.25–0.40 mm for new parts and a 1.00 mm wear limit.
Pump and sensor checks: Impeller-to-wear-ring clearance is listed as 0.18–0.44 mm new, with a 1.02 mm wear limit. The low-level oil sensor should show an open circuit with its reservoir empty and a maximum of 1 Ω when filled with oil.
