2004 JCB Micro, Micro Plus & Micro 8008 Mini Excavator Service & Repair Manual (P/N 9803/9310-4)

This JCB service manual, P/N 9803/9310-4, covers 2004 Micro, Micro Plus, and Micro 8008 mini excavators, including the Micro Tier 3 and Micro Plus Tier 3 variants.

• Hydraulic diagnosis: Main and auxiliary relief-valve tests, machine cycle-time checks, and fault charts for poor hydraulic performance, tracking faults, and slew problems.

• Hydraulic repairs: Gear-pump resealing, main control valve overhaul, track motor and slew motor disassembly, and hydraulic cylinder inspection and seal replacement.

• Transmission and running gear: Track gearbox disassembly and assembly, rubber track replacement, and Micro Plus track roller, idler, and recoil unit service.

• Body and controls: Boom, dipper, kingpost, and dozer work; bucket linkage inspection; upper-structure removal; and valve control rod adjustment.

• Electrical system: Serial-specific wiring diagrams, main and canopy harness drawings, battery testing, multimeter checks, and starter and alternator replacement.

• Maintenance and attachments: Lubrication, air-filter service, fuel-system bleeding, coolant replacement, and single- and double-acting auxiliary circuits for breakers and augers.

Written for JCB distributor service engineers receiving or having completed JCB technical training, this manual assumes established workshop skills and knowledge of hydraulic earthmoving equipment.

Hydraulic Testing and Component Repair

The General Fault Diagnosis charts separate faults affecting all services from tracking-only and slew-only problems. Pump, rotary coupling, and track motor checks help narrow down the source of a travel fault before components are removed.

Pressure-testing procedures identify gauge 892/00279, with hand pump 892/00223 and test block 331/31069 specified for auxiliary relief-valve testing. Control valve spool diagrams, track motor section views, and exploded assembly drawings accompany the component procedures.

Repair limits: The hydraulic pump can be dismantled for seal replacement; internal wear or damage calls for a replacement pump. Rotary coupling work covers removal, installation, and renewal of the hose-connection O-rings.

Track motor assembly notes identify the risk of shaft splines damaging the oil seal. Separate Micro 8008 schematics show single- and double-acting auxiliary layouts; double-acting attachments require optional auxiliary piping.

Track Gearboxes, Recoil Units, and Structure

The gearbox procedures distinguish planet-carrier parts requiring assembly replacement from parts available individually. Micro Plus roller and idler/recoil-unit sections cover internal service, including press work on the recoil spring.

Track procedures distinguish the screw-adjusted Micro Plus from the grease-tensioned Micro and Micro 8008. Upper-structure work explains the different slew-ring spacer arrangements, while pivot-pin and bushing tolerances support wear assessment before replacement.

Electrical Circuits and Battery Diagnosis

Fuse tables and circuit diagrams are divided at machine numbers 1148299/1148300. Harness identification data, specific-gravity testing tables, and voltage, resistance, continuity, frequency, and diode checks support electrical fault tracing.

Starter and alternator procedures cover removal and installation; internal alternator overhaul is outside their scope.

Maintenance and Engine Specifications

Service schedules run from daily checks through 2,000-hour maintenance. Greasing illustrations locate pivot-pin, slew-ring, and undercarriage-extension lubrication points. Engine service covers oil and filter changes, coolant mixtures, drive-belt adjustment, and fuel-filter maintenance.

Tier 3 fuel guidance includes biodiesel-related service requirements. The fuel-bleeding section warns that running with air in the system can damage the injection pump.

Reference tables distinguish zinc-plated and Dacromet fasteners and cover UNF/metric hardware, hose-to-adapter joints, and bonded washers. Machine identification, safety decals, JCB Multi-Gasket, and high-strength threadlockers are also covered.

Engine scope: Section K provides KD 103-10, 403C-11, and 403C-07 technical data, with torque tables for the first two engines. Internal engine overhaul procedures are not included; the referenced engine manuals 9806/2100 and 9806/2190 are separate publications and are not supplied.

Always verify machine stability and release hydraulic pressure before initiating any routine maintenance tasks.

A Sample of Relief-Pressure and Ram-Inspection Data

These examples are a small selection of the manual's hydraulic test and inspection specifications.

For Micro and Micro Plus, the boom, dipper, and dozer main relief setting is 180 ± 5 bar at 12 L/min with oil at 50°C. The slew auxiliary relief setting is 95 ± 5 bar under the same conditions.

The typical ram inspection sets a piston-rod warp limit of 0.5 mm, measured as half the difference between the maximum and minimum dial-indicator readings.

PDF Search, Diagram Detail, and Page Count

Search and navigation: The main text is searchable, but some drawing labels are not. Twenty numerically labeled bookmarks provide basic navigation. Small wiring and hydraulic-schematic labels require zooming.

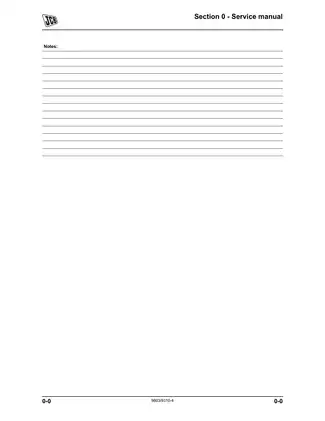

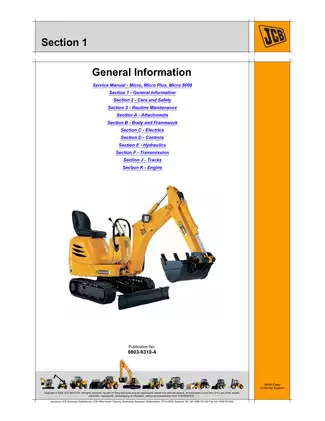

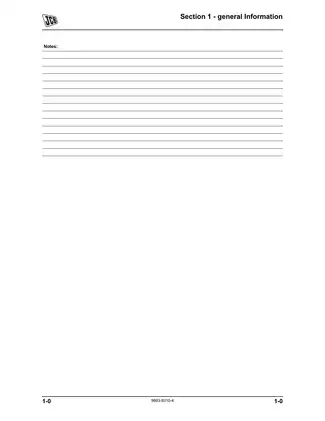

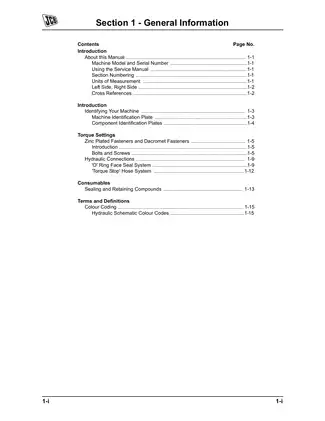

One printable, English-language 294-page PDF, including 12 cover and section-title pages, 14 contents pages, 12 notes pages, and 33 intentionally blank pages. These pages are already included in the total.
