Kubota L-175/L-185/L-225/L-225DT/L-245/L-245DT/L-285 Tractor Loader Service Manual (P/N F-1583)

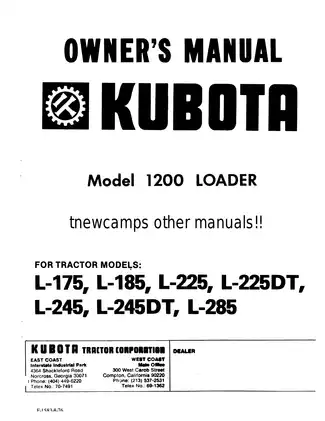

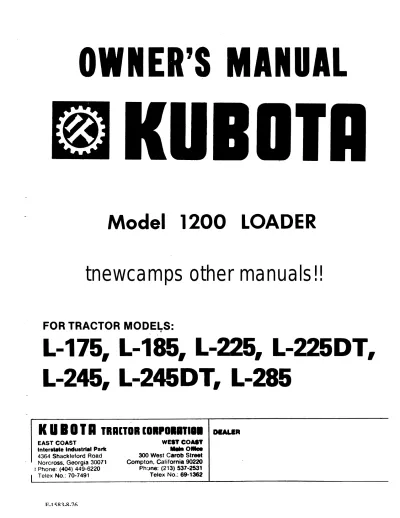

• Model and document coverage: Covers the Kubota Model 1200 Loader used with L-175, L-185, L-225, L-225DT, L-245, L-245DT, and L-285 tractors. This is the August 1976 Kubota Owner's Manual identified by document code F-1583, with 14 unique manual pages in the PDF.
• Operation and hydraulic diagnosis: Documents bucket filling, lifting, carrying, dumping, lowering, backfilling, pile loading, double-acting-cylinder precautions, and a tractor hydraulic-pump pressure check with follow-up leak isolation.
• Loader assembly: Explains side-frame placement, boom and bucket attachment, pin and locking-hardware installation, and loader oil-line and hose routing, with illustrated main-assembly and hydraulic-system parts lists.
• Bucket configurations: Identifies the manure bucket and dirt plate, material-bucket and snow-bucket arrangements, their mounting hardware, tines, and serviceable cutting edges.
• Cylinder repair: Provides disassembly, inspection, resealing, and reassembly coverage for bucket-control cylinder P/N 4361 and lift cylinder P/N 7713, including the associated seal-and-packing repair kits.

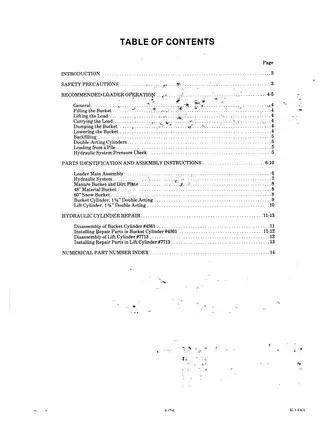

• Illustrated reference: Eight numbered figures combine loader and attachment parts views, hydraulic routing, cylinder exploded views, and three cylinder-repair details; a numerical part-number index closes the manual.

This manual combines operating guidance, loader assembly, parts identification, and hydraulic cylinder repair in a compact factory booklet. The operating material is accessible to tractor owners familiar with loader controls; the assembly and cylinder sections are better suited to experienced mechanics comfortable with hoisting, hydraulic pressure testing, and seal installation.

Loader Operation and Hydraulic Checks

The operating section explains how bucket attitude and travel height affect breakout effort, load retention, visibility, and tractor stability. It also addresses shock loading during backfilling and safe use of double-acting lift cylinders. The hydraulic check helps distinguish inadequate tractor pump pressure from loader-side leakage in oil lines, fittings, or cylinders. System pressure specifications and tractor-side adjustments must be taken from the applicable tractor instruction book.

Assembly and Attachment Coverage

Figures 1 and 2 identify the side frames, boom, bucket and lift cylinders, pivot pins, bushings, grease fittings, oil lines, hoses, clamps, and elbows. The manual describes hoisted side-frame placement and the loader's bucket-pin and locking-hardware installation. Mounting-bracket and tractor-hose details are governed by the separate instructions packed with the correct mounting kit, an important scope limit when planning a complete installation.

Figure 3 covers the manure bucket, tine set, and removable dirt plate alongside the 48-inch material bucket and 60-inch snow bucket. Its parts list identifies the attachment hardware and separate side and bottom cutting edges, including factory guidance for welded cutting-edge replacement.

Hydraulic Cylinder Repair Depth

Figures 4 and 5 provide exploded parts views for the 1-3/4-inch double-acting bucket-control cylinder, P/N 4361, and lift cylinder, P/N 7713. The bucket-cylinder repair kit is P/N 2-2857; the lift-cylinder kit is P/N 2-2859. The drawings identify the V-packings, O-rings, wiper seals, backup and reinforcement washers, snap ring, wire retaining ring, cylinder head, piston, compression nut, shaft, and tube.

The repair section covers retaining-ring removal, release of packing compression, separation of the rod, piston, and cylinder head, seal removal, cleaning, and inspection for tube scoring or rust. It then addresses packing and seal installation, lubrication, reassembly, and retaining-ring installation. Figures 6 through 8 add focused views titled Cylinder Head Retaining Ring, Piston Compression Nut, and Bucket Cylinder Assembly.

One repair trap is called out directly: pulling the bucket-cylinder piston assembly intact can damage the V-packing as it passes the retaining-ring groove. The manual also specifies packing-lip, wiper-seal, and snap-ring orientation; reversing these components can compromise the reseal.

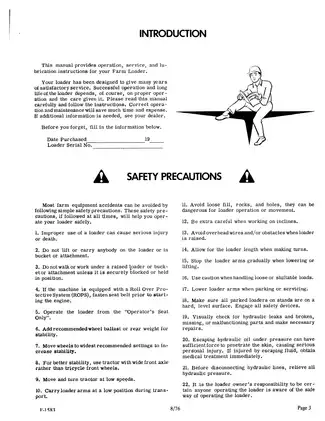

Scope and Safety

This is a loader-specific owner's and repair reference, not a general tractor engine, transmission, electrical, or hydraulic service manual. It relies on the tractor instruction book for hydraulic pressure specifications and on the appropriate mounting-kit instructions for tractor-specific bracket and hose installation.

Hydraulic oil under pressure can penetrate skin, and an unsupported raised loader or tractor front end can fall. The manual requires hydraulic pressure to be relieved before lines are disconnected and raised components to be securely blocked before service.
