Harley-Davidson Touring FLH/FLT 1999–2005 Repair Manual (P/N Clymer M430-4)

This Clymer service and repair manual (P/N M430-4) covers the 1999–2005 Harley-Davidson FLH/FLT Touring range: Electra Glide Standard, Classic and Ultra Classic; Road King, Road King Classic and Road King Custom; Road Glide; and the 2005 FLHTCSE2 Screamin’ Eagle Electra Glide 2.

Bookmarks, Wiring Detail and PDF Contents

Search, navigation and diagram detail: PDF text search is unavailable. Twenty embedded bookmarks provide chapter navigation, although Quick Reference Data opens the contents page. Printed pages 401 and 402 appear in reverse order. Small connector and pin labels on the sampled wiring diagrams are readable when enlarged.

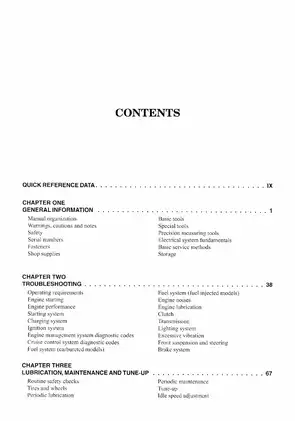

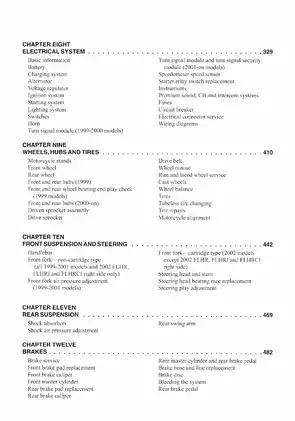

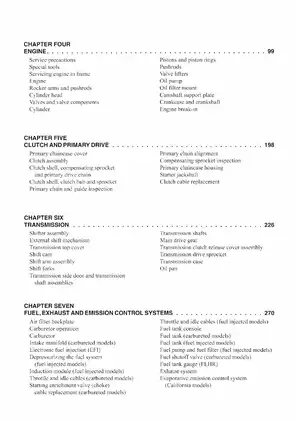

The printable, 711-page PDF contains 557 pages of main chapters, the 80-page 2003–2005 Model Service Information supplement and a 57-page wiring section, including its divider. Eight contents/quick-reference pages, seven index pages, one notes page and one maintenance-log page are also included in the total.

Twin Cam Repair and Electrical Troubleshooting

The selected topics below highlight the main service areas. Other sections cover electrical connector service and preparing the motorcycle for storage.

• Maintenance and tune-up: Routine safety checks, periodic lubrication, compression testing, throttle-cable service and clutch adjustment.

• Engine repair: Step-by-step engine removal and overhaul procedures for the Twin Cam 88 and Twin Cam 103, including cylinder-head, piston, camshaft and crankcase work.

• Clutch and transmission: Primary-chain alignment, compensating-sprocket inspection, clutch repair, transmission-shaft service and shift-mechanism inspection and adjustment.

• Fuel systems: Carburetor overhaul and float adjustment, EFI induction-module service, fuel-pump and filter replacement, exhaust work and California evaporative-emission components.

• Electrical troubleshooting: Starter, charging, ignition-coil and voltage-drop tests, engine-management code retrieval, cruise-control diagnostic codes and model-specific color wiring diagrams.

• Chassis and brakes: Wheel and hub repair, drive-belt and rear-axle alignment, fork and steering service, rear suspension, brake-component overhaul and bleeding.

• Later-model changes: The supplement addresses FLHTCSE2 hydraulic-clutch service, charging-system changes, front-fork revisions, brake updates, lighting, instruments and bodywork.

The manual explains tools and service fundamentals for readers working on these motorcycles for the first time, while identifying operations that require dealership equipment or specialist expertise.

Engine Overhaul and Cylinder-Head Details

Cylinder-head work extends to valve-seat inspection and reconditioning, valve-guide replacement and measurements for assessing reusable parts. Separate procedures address rocker arms, pushrods, pistons and rings, the camshaft support plate, oil pump and crankshaft.

Checks under Engine Mounts and Stabilizer accompany assembly illustrations such as Rocker Arm Housing Torque Sequence and Valve Seal Installation.

Pushrods and head gaskets: The manual distinguishes intake and exhaust pushrod lengths and explains how reversing used pushrods can accelerate wear in the pushrods, lifters and rocker arms. Cylinder-head instructions address gasket positioning and tightening errors that can cause distortion or leakage.

For the Twin Cam 103, the supplement adds FLHTCSE2 oil-cooler, oil-filter-mount and thermostat procedures. Its cylinder-head instructions identify the 2005 arrangement that no longer uses the earlier dowel-pin O-rings.

Clutch, Primary Drive and Transmission

Transmission shafts and shifter assemblies can be serviced with the transmission installed in the frame. Internal procedures cover the shift cam, shift forks, main drive gear and bearing inspection.

The supplement separates the 2005 clutch updates from the FLHTCSE2 hydraulic system. Hydraulic-clutch coverage extends to the release bearing and pushrod, master cylinder, slave/release cylinder, hose replacement, flushing and bleeding.

Fuel Systems and Diagnostic Limits

Carburetor procedures explain the float and accelerator-pump systems. EFI sections distinguish induction-module and fuel-pump arrangements, including the different fuel-line layouts used on earlier models.

Carbureted idle adjustment is mechanical. The manual refers EFI idle and throttle-cable adjustment to a Harley-Davidson dealer equipped with a Scanalyzer; ignition timing is non-adjustable.

Engine-management diagnosis: Fault-code retrieval is covered, but further diagnosis and code clearing require dealership test equipment. The code tables are not a complete advanced EFI diagnostic program.

Electrical Tests and Wiring References

Current-draw, alternator-output and regulator tests accompany voltage-drop diagnosis, illustrated by Voltage Drop Test (Solenoid Circuit). Battery specifications distinguish different rating periods, and charging-system ratings vary by model.

Color wiring diagrams separate FLHR circuits from FLHT/FLTR circuits by model year, with carbureted and EFI details where applicable. Cruise-control procedures cover the module, switches and cable, including Cable Lash Initialization after cable or module replacement.

Forks, Brakes and Touring Bodywork

Separate cartridge and non-cartridge fork procedures, with different oil-level references for 2002 and 2003–2005 cartridge forks, help match the repair information to the front-end configuration before disassembly.

Wheel-bearing procedures distinguish 1999 hubs from later assemblies. Drive Belt Deflection and Rear Axle Alignment Tool illustrations support final-drive checks.

Brake-fluid references separate DOT 5 applications for 1999–2004 from DOT 4 for 2005 and warn against mixing incompatible fluids.

Body procedures cover FLHR headlight nacelles, FLHT and FLTR fairings, saddlebags and Tour-Pak components. Later lighting, instrument and fairing changes appear in the supplement.

Service Tables and Special Tools

Reference tables supply component torque specifications, lubrication recommendations, fluid capacities, wear limits and electrical test values. Transmission capacities distinguish an oil change from a dry rebuild.

Specified tools include the H-D belt tension gauge P/N HD-35381, JIMS Twin Cam 88 engine stand P/N 1022, JIMS cylinder torque plates P/N 1287, and Harley-Davidson valve-guide tools HD-34740 and HD-34741.

Engine removal, hydraulic brake service and high-current electrical testing require secure motorcycle support and the electrical isolation specified in the relevant procedures.

A Preview of Coil and Charging Test Values

The main electrical chapter lists ignition-coil primary resistance of 0.5–0.7 ohm and secondary resistance of 5,500–7,500 ohms as references for its resistance tests.

For voltage-regulator testing, its specification table gives an output of 14.3–14.7 V at 3,600 rpm and 75°F (24°C).
