Sea-Doo 1995 SP, SPI, SPX, GTS, GTX & XP Shop Manual (P/N 219 100 013)
271 Pages • Printable PDF • 22.06 MB • Download
Sea-Doo Models Covered & Key Technical Specifications
Models: SP, SPI, SPX, GTS, GTX, XP
Models & Model Codes:
SP — 5873; engine: Bombardier-Rotax 587
SPI — 5875; engine: Bombardier-Rotax 587
SPX — 5874; engine: Bombardier-Rotax 657 X
GTS — 5815; engine: Bombardier-Rotax 587
GTX — 5863; engine: Bombardier-Rotax 657 X
XP — 5857; engine: Bombardier-Rotax 717
Model Year: 1995
-
Engine type: 2-stroke Rotax rotary valve
-
Engine displacement: SP, SPI, GTS: 580.7 cc; SPX, GTX: 650 cc; XP: 718 cc
-
Fuel capacity: SP, SPI, SPX, XP: 34 L (9 U.S. gal); GTS, GTX: 45 L (12 U.S. gal)
-
Oil injection reservoir: 4.5 L (1.2 U.S. gal)
-
Engine rev limiter setting: SP, SPI, GTS: 6550 ± 50 RPM; SPX, GTX, XP: 7000 ± 50 RPM
-
Dry weight (SP model): 176 kg (388 lb)
-
Cylinder head bolt torque: 24 Nm (17 lb-ft)
-
Coolant system monitoring: Beeper activates at 96–99°C (205–210°F)
-
Transmission: Direct drive (all covered models)

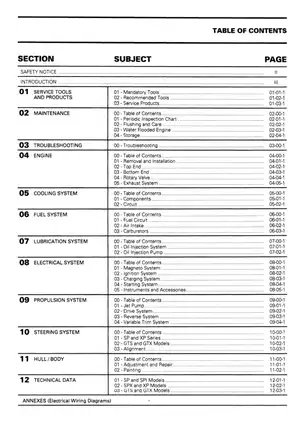

Sea-Doo Manual Features & Selected Content Preview

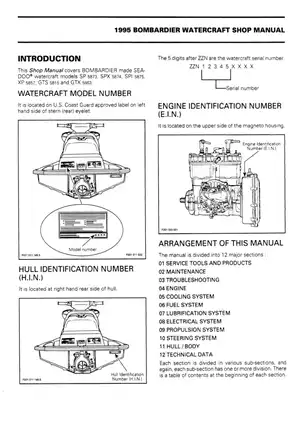

Bombardier’s 1995 Sea-Doo Shop Manual, P/N 219 100 013, covers the SP, SPI, SPX, GTS, GTX and XP.
Text Access, Wiring Detail and Page Count
Search, navigation and diagram detail: PDF text search and embedded bookmarks are unavailable. The wiring diagrams are oriented sideways; small wire-color and connector labels require zooming, and some remain soft in densely labeled areas.
The single printable English-language PDF has 271 pages, including two outer cover pages, 27 divider pages and two duplicated content pages.
Rotax Engine, Electrical and Jet-Pump Service
The following selected repair topics outline the manual’s coverage rather than reproduce its full contents. Additional subjects include battery activation and spark-plug condition analysis.
-
Engine repair: Engine removal and alignment, top-end service, bottom-end disassembly and inspection, crankshaft checks, rotary-valve timing and tuned-pipe repair.
-
Fuel and oil systems: Fuel-system pressure testing, Mikuni carburetor inspection and synchronization, plus oil-injection pump adjustment, bleeding and delivery testing.
-
Maintenance and cooling: Periodic inspections, cooling-system flushing, storage preparation, water-flooded engine recovery and engine-specific cooling-circuit illustrations.
-
Electrical diagnosis: Magneto service, CDI/MPEM ignition testing and timing, charging checks, starter overhaul, instrument tests and SPX/XP variable-trim electrical diagnosis.
-
Propulsion and controls: Aluminum and plastic jet-pump overhaul, drive-shaft and seal-carrier repair, GTS/GTX reverse service, SPX/XP VTS work and steering alignment.
-
Factory references: Mandatory and recommended tool listings, component torque tables, inspection limits, clearances, pressure-test data, capacities, electrical test values, exploded views and troubleshooting charts.

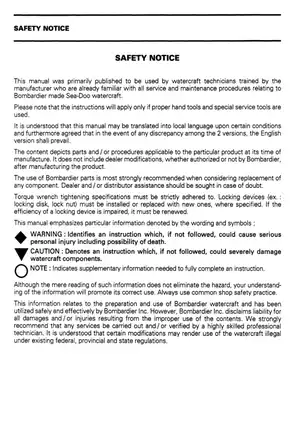

Bombardier published this manual primarily for manufacturer-trained watercraft technicians already familiar with Sea-Doo service procedures and equipped with the specified hand tools and special service tools.
Engine Families and Internal Repair
The SP, SPI and GTS use the Bombardier-Rotax 587 with a single carburetor. The SPX and GTX use the 657 X, while the XP uses the 717; both engine families have twin-carburetor installations.
Model-group tables separate engine, carburetion, cooling, electrical, propulsion, capacity, equipment and torque data. These distinctions help match service information to the installed hardware. Bombardier warns against interchanging components between the engine families.
Internal inspection: Step-by-step procedures extend to cylinder and piston inspection, ring and bore measurements, crankshaft alignment and deflection, and connecting-rod checks. The manual addresses 657 X/717 squish adjustment, rotary-valve cover clearance, shaft-gear backlash and valve identification.
Exhaust and alignment: Tuned-pipe coverage includes crack repair by TIG welding and subsequent leak testing. The engine-mount instructions explain how mixed-up shims can misalign the engine and jet pump, causing vibration or component damage.
Parts ordering is directed to separate model-specific parts catalogs.
Carburetion and Oil-Injection Testing
Fuel-system coverage extends to the tank, vent components, pressure-relief and check valves, carburetor pump and metering circuits, needle-and-seat testing and jetting data.
The XP’s twin-carburetor synchronization method differs from the SPX/GTX arrangement. Oil-system procedures include reservoir pressure testing, pump synchronization, on-watercraft operation checks and bench testing of delivery from each port.
Ignition, Starting and Instrument Faults
Electrical sections address generating and charging coils, the ignition coil with integrated CDI, MPEM timer and rev-limiter circuits, cold-engine ignition timing and Bombardier ignition-tester checks. Regulator and battery tests accompany starter disassembly and internal inspection.
The starting-system troubleshooting chart helps distinguish switch, solenoid and connection faults from internal starter wear before removal. Instrument testing covers fuel and oil sensors, the speed sensor, multifunction gauge and VTS circuits.
Pump, Trim and Steering Differences
Jet-pump inspection includes bearings and seals, shaft play, impeller and wear-ring condition, oil service and leak testing. Drive-system procedures also address the PTO flywheel, drive-shaft deflection and hull-insert repair.
Reverse-system work applies to the GTS and GTX. Separate mechanical and electrical procedures address the SPX’s cable-operated trim mechanism and the XP’s sliding-shaft VTS assembly.
Steering sections distinguish SP/XP-series hardware from GTS/GTX assemblies. GTS/GTX steering-cable replacement coverage is incomplete: the opening page is repeated and the procedure does not continue. The XP VTS assembly and installation page is also duplicated.
The SPX trim instructions warn that incorrect cable orientation or adjustment can damage the cables or venturi.
Hull, Body and Paint Work
Body procedures include seat and storage-cover adjustment, bumper and sponson replacement, GTS/GTX rear-baffle sealing and decal replacement.
Fiberglass and gelcoat coverage addresses damage assessment, estimating and common repairs, but does not replace a complete fiberglass-repair manual. PPG Concept and Delta painting procedures include model-specific color references.
Service Tools and Visual References
Factory tool references include the degree wheel P/N 295 000 007, engine/pump alignment tool P/N 295 000 089 and Bombardier ignition tester P/N 295 000 008. Pump tools include the impeller remover/installer P/N 295 000 001 and bearing/seal installer P/N 295 000 107.
Illustrations include 587/657 X/717 cooling-circuit schematics, the CDI/MPEM ignition diagram, rotary-valve timing templates, aluminum and plastic jet-pump exploded views, SPX/XP VTS views and individual wiring diagrams for all six models.
Fuel, battery, ignition and running-engine checks include specific bilge-ventilation, leak-test, electrical-isolation, cooling and rotating-component precautions.
Sample Rotary-Valve Clearances and Carburetor Test Data
Rotary-valve inspection specifies a valve-to-cover clearance of 0.30 ± 0.05 mm (0.012 ± 0.002 in) for the covered engines, with separate discussion of overheating and hard-starting symptoms outside that range.
Carburetor inlet-release testing distinguishes single-carburetor installations at 150–200 kPa (22–29 psi) from twin-carburetor installations at 110–145 kPa (16–21 psi). Separate criteria address needle-valve leakage.
