Isuzu Forward 4000 / Tiltmaster W4 1988 - 4BD1-T Engine Service Manual

This October 1988 publication from Isuzu Motors Limited is Section 6: Engine of the Medium Duty Truck Service Manual. It covers Forward (4000) / Tiltmaster (W4) trucks equipped with the 4BD1-T turbocharged direct-injection diesel.

PDF Search, Circuit Detail and Page Count

Search and circuit detail: PDF text search and embedded bookmarks are unavailable. Small wiring labels benefit from zooming; the charging and starting circuit diagram is printed sideways and is easier to follow with the view rotated.

One printable, English-language 176-page PDF, including the original cover and six blank separator/end pages.

Engine Overhaul, Injection and Electrical Coverage

The following selected highlights summarize the main workshop coverage. Additional topics include coolant-recovery components and drive-belt storage.

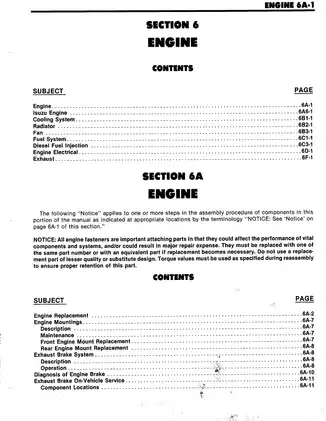

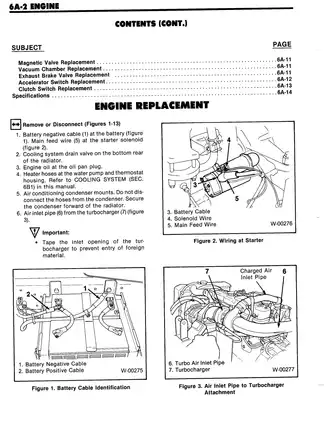

• Engine installation: Step-by-step engine removal and installation, front and rear mount replacement, transmission support, and M/T, A/T and flat-low mounting illustrations.

• Internal engine repair: Cylinder-head and valve-train service, piston/connecting-rod/liner work, oil-pump overhaul, timing gears, camshaft, crankshaft, flywheel and rear-seal replacement.

• Exhaust brake and exhaust: Fault diagnosis, control-switch and valve replacement, exhaust restriction and leak checks, pipe alignment, muffler and tailpipe replacement.

• Cooling system: Pressure-cap and system tests, thermostat and oil-cooler service, water-pump disassembly and assembly, radiator removal, fan-clutch testing and belt adjustment.

• Fuel injection: Injector nozzle tests, transfer-pump and injector replacement, injection-pump removal and installation, fuel-system bleeding, pump timing and idle adjustment.

• Engine electrical: Battery testing, charging and starting diagnosis, generator repair, starter overhaul, solenoid checks, circuit diagrams and engine-heater information.

• Factory references: Component torque tables, capacities, wear limits, clearances, grade-selection data, electrical test specifications, special-tool numbers and more than 240 numbered factory figures.

Suited to mechanics experienced in diesel-engine repair and electrical bench testing, with access to the specified measuring equipment and special tools.

Truck Installation and Coverage Limits

The truck-specific mounting and support information helps you assess the installation work before disassembly. M/T, A/T and flat-low illustrations identify differences in the mounting arrangements.

Scope: This publication contains the engine section. Full transmission and clutch repair, steering, air conditioning, and cab/chassis electrical procedures are referenced in other sections that are not included.

Engine Diagnosis and Internal Inspection

Diagnostic coverage addresses no-crank and no-start complaints, uneven idle, misfire, low power, exhaust smoke, overheating, oil-pressure problems, excessive oil consumption and engine noise. Compression testing provides a separate check of mechanical condition.

Cylinder head and rotating assembly: Inspection extends to head distortion, valves, guides, seats and springs, with guide and seat replacement, grinding, lapping and staged head-bolt tightening. Piston-ring and pin measurements, liner grades and projection, bearing selection and oil-jet service support internal repair decisions.

The crankshaft instructions rule out regrinding or straightening because of its Tufftriding treatment; undersize bearings are not available. Camshaft-bearing coverage distinguishes the front bearing and its oil-hole alignment.

On-vehicle work: Turbocharger inspection and replacement, charge-air piping, intake and exhaust manifolds, rocker gear, valve stem seals, glow plugs and the crankcase breather are covered. The Lubrication System Schematic and Gear Train Timing Marks illustrate oil routing and gear alignment.

Compression testing uses gauge J-26999-12 with adapter J-34532. Other tool references include J-34535 for valve guides, J-34543 for the rear seal, J-35691 for turbocharger pressure and J-36520/J-37365 for liners.

The mounting instructions warn that jacking beneath the oil pan can damage the pan and oil pickup. Turbocharger service cautions explain how debris entering exposed intake or charge-air openings can damage the compressor or engine.

Follow the manual’s lifting, support and battery-isolation precautions during engine work.

Exhaust-Brake Controls and Fault Finding

The Exhaust Brake Controls illustration connects the magnetic valve, vacuum chamber and brake valve with the clutch and accelerator switches. The diagnosis chart distinguishes failure to operate, slow response, weak braking and failure to release.

Cooling Diagnosis and Component Repair

Overheat flowcharts separate temperature-indication faults from boiling or coolant loss; additional charts address coolant loss and no heat. The text covers draining, cleaning, flushing and reverse flushing, plus air-suction and combustion-gas leakage tests.

Component sections add water-pump bearing and seal work, radiator mounting and shroud service, fan runout correction, belt-wear diagnosis, pulley alignment and tension checks. Engine-warm-up thermoswitch operation is also described.

Fuel Supply and Injection-Service Boundaries

Air-cleaner service, pre-fuel and main filters, accelerator linkage, hand throttle, fuel tanks and the sending unit are included. Tank illustrations distinguish the round base-model tank from the rectangular flat-low arrangement.

The Fuel Injection System schematic shows the supply and return paths. Nozzle testing covers leakage, opening pressure, spray pattern and chatter.

Pump and injector limits: The Bosch-type injection pump and governor are removed as an assembly for specialist service; internal pump overhaul is outside this section. Injectors are replaced as complete assemblies, with rebuilding discouraged.

Charging, Starting and Bench Tests

Battery coverage includes hydrometer interpretation and load testing. Generator procedures extend to rotor, stator, rectifier and regulator checks, plus inspection and repair of the attached vacuum pump.

Starter instructions cover no-load testing, armature and field checks, brush inspection, solenoid tests and reassembly. The Charging and Starting Systems Circuit Diagram also shows the glow-plug circuit, remote starter switch and transmission neutral safety switch. Engine-block and lube-oil heaters are described separately.

Compression and Liner Specification Preview

For a warm 4BD1-T engine cranking at 200 rpm, the compression-check section lists a production reading of 3043 kPa (441 psi) and a service limit of 2160 kPa (313 psi).

The liner-installation section specifies projection of 0.03–0.10 mm above the cylinder-block gasket surface, alongside grade-selection tables and measurement illustrations.
