JCB JS130W / JS150W Excavator Service Manual, 1990s–2000s (P/N 9803/6300)

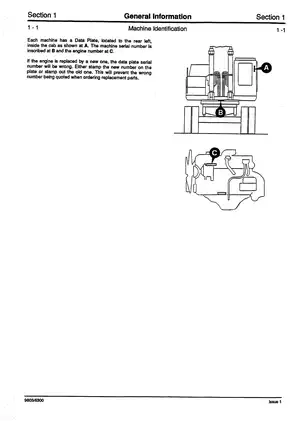

JCB service publication P/N 9803/6300 covers 1990s–2000s JS130W and JS150W wheeled excavators, including mono boom and triple articulated boom configurations.

PDF Search, Bookmarks and Schematic Detail

Text access and diagram detail: The manual’s body text is not searchable. Two embedded bookmarks provide broad part jumps rather than chapter navigation. Detailed wiring and hydraulic sheets require zooming to read their small labels.

One printable PDF contains 414 pages, including the original cover and 16 blank separator pages.

Hydraulic Diagnostics, Drivetrain Repair and Attachment Service

These selected contents highlight the main workshop coverage. Additional topics include steering-column disassembly and binnacle bulb replacement.

• Routine maintenance: Lubrication, air and fuel filtration, cooling-system care, fan-belt adjustment and fuel-system bleeding, with routine and rockbreaker-use service schedules.

• Electrical troubleshooting: Battery-condition tests, fuse-box layouts, wiring schematics, relay-box connections and controller pin assignments.

• Hydraulic diagnosis: Fault-finding charts, pressure-testing procedures and circuit descriptions for drive, braking, steering, creep speed and axle locking.

• Hydraulic component repair: Pump and regulator inspection, main control valve service, rotary coupling repair, swing motor overhaul and servo hand-control valve assembly.

• Gearboxes and axles: Drive and swing gearbox disassembly, clutch assembly, differential setup, axle hub repair and brake-pack inspection.

• Boom and attachments: Mono boom and TAB cylinder service, stabilizer/dozer ram repair and rockbreaker engine-speed control calibration.

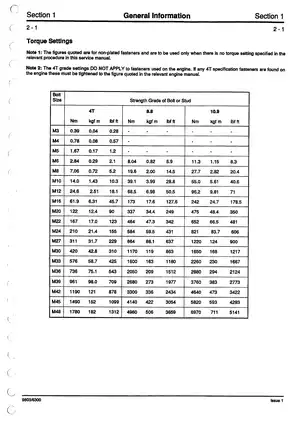

The pressure-testing, shimming and component-overhaul sections are suited to experienced heavy-equipment technicians with the specified gauges, lifting equipment and service tools.

Hydraulic Fault Finding and Repair Limits

The Fault Finding charts connect low pump output, engine overload and unwanted swing movement with possible causes and component checks. Pressure-test illustrations identify the relevant connections for servo, relief, brake, clutch and steering circuits.

Electro-hydraulic explanations link the drive isolator, park brake/gearchange priority and axle-lock controls to their hydraulic functions. Together with the component location maps, these help technicians trace a failed function between its electrical command and hydraulic supply.

Service limits: Drive motor work is limited to replacing seals, O-rings and gaskets. Steering priority valve field service covers the relief cartridge, plugs and O-rings; main-spool faults call for complete valve replacement. Pump regulator disassembly requires the specified adjustment and checking equipment.

Because working with high-pressure systems carries inherent risks, hydraulic maintenance—including line bleeding and suction-strainer cleaning—requires standard heavy-equipment safety precautions.

Gearbox, Axle and Brake Assembly

Step-by-step drive gearbox procedures extend through clutch-pack assembly, bearing preload and rear differential setup. Hydraulic leak tests check the assembled clutch and brake units, while the service-tool references identify fixtures such as clutch jig SST0020.

Separate front and rear axle instructions address hub bearings and brake packs. Front axle drivehead work includes pinion shimming, crown-wheel backlash and tooth-contact patterns. Steering-unit assembly adds cylinder shimming and wheel-alignment checks.

Electrical Diagrams and Serial-Specific Changes

The Schematic Wiring Diagram, Relay Box – Internal Connections and Controller Plug Pin Connections map circuits to connectors and PCB test points. Earlier and later relay-box arrangements follow the electrical serial breaks listed in the model box.

The Schematic Hydraulic Circuit and Component Location Diagrams provide corresponding references for valves, accumulators and solenoids around the machine.

Maintenance, Rockbreaker Setup and Engine Scope

Maintenance schedules run from daily checks through major services, with separate intervals for regular rockbreaker use. The Engine Lubrication Chart relates engine-oil selection to ambient temperature; coolant mixtures and gearbox lubricants are specified separately.

Engine coverage: Routine engine maintenance and technical specifications are included. Further engine service is referred to separate publication 9803/6910, which is not included in this download.

The engine guidance warns that prolonged unloaded idling or gentle running-in of new engines can glaze cylinder bores and increase oil consumption. The JS130W swing-gearbox grease procedure also warns of inner-seal damage if trapped air is not vented.

Selected Battery Test, Valve and Brake Data

The service-tool list specifies a 400-amp high-rate discharge tester, part 892/00121, for battery-condition testing.

Engine technical data lists 0.4 mm cold valve clearance for both inlet and exhaust valves on the covered Isuzu engines.

Axle assembly specifications distinguish the front brake-plate pack clearance of 1.9–2.3 mm from the rear brake-piston stroke of 3–4 mm.
