1989-1997 Suzuki GS500E Twin Service Repair Manual
For 1989-97 Suzuki GS500E Twin: diagnostics, service, and parts information. PN 3238-224-7W1
Manual Preview

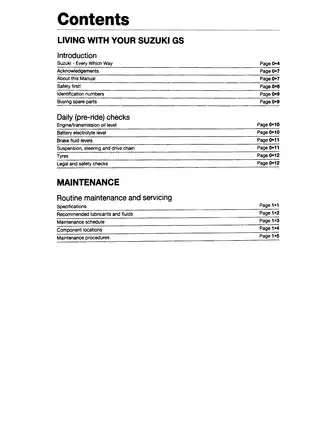

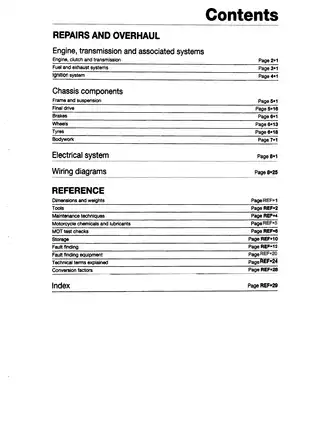

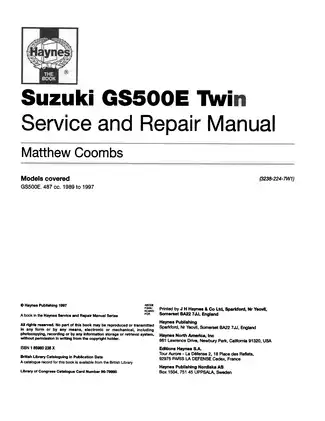

Sample pages from the 1989-1997 Suzuki GS500E Twin Service Repair Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Applied Troubleshooting Parts Manual: Bike Definitive Manual for 1989-97 Suzuki GS500E Twin, 1989-1997 Specification-Guide Suzuki GS500E Twin (3238-224-7W1) -- 1989-1997 Specification-Guide
- Engine Overview & Associated Systems: 487 cc capacity outlines the engine's core configuration Parameters.
- Technical Cooling & Lubrication: Engine oil viscosity is SAE 10W/40 establishing the standard for thermal management Framework.
- Chassis Components: Frame and suspension design incorporates a rigid structure for optimal stability Requirements.
- Electrical System Specifications: Ignition timing at idle is 5° BTDC signifying precise spark delivery Threshold.
- Brakes & Wheels: Front and rear brakes feature hydraulic disc systems ensuring reliable stopping power Mapping.
- Maintenance Schedule: Routine maintenance covers intervals up to 12 months for comprehensive upkeep Range.
Professional Workshop Service Manual & Technical Specifications
Suzuki GS500E Twin Service and Repair Manual: 1989-97 Specification-Guide
Subsystem-Focus: Engine, clutch and transmission Logic // Validation-Data: Frame, suspension and final drive Data // Subsystem-Focus: Brakes, wheels and tyres Data. OEM specifications cover routine maintenance and servicing, engine specifications, and various troubleshooting procedures. The documentation includes detailed system descriptions, assembly instructions, and comprehensive technical data.
Consistently requiring maintenance, this manual details procedures for front and rear suspension, drive chain adjustments, and engine tune-up specifications.
| Metric | Technical-Path | Validation-Data |
|---|---|---|
| Valve Clearances | 0.03 to 0.08 mm | Specification-Guide |
| Spark Plugs | NGK DPR8EA-9 or Nippondenso X24EPR-U9 | Parameters |
| Engine Idle Speed | 1200 ± 100 rpm | Framework |
| Oil Pressure (Warm Engine) | 28 to 71 psi (2.0 to 5.0 bar) at 3000 rpm | Range |
Wear limits are specified for various components to ensure proper operation and longevity. System operation descriptions cover engine components, lubrication systems, and electrical systems for optimal motorcycle performance. The documentation addresses assembly procedures, ensuring correct component installation for reliable operation.
Hydraulic schematics are included for brake systems to aid in diagnostics and repair. The core speed performance of the engine reaches optimal levels under various operating conditions.
Key Maintenance Intervals
- Every 600 miles (1000 km): Clean and lubricate drive chain.
- Every 2000 miles (3000 km): Clean air filter element.
- Every 4000 miles (6000 km) or 12 months: Check valve clearances, spark plugs, and exhaust pipe bolts.
- Every 7500 miles (12 000 km) or 2 years: Replace brake fluid and check fuel hoses.
The manual provides a thorough overview of the motorcycle's systems, including engine, clutch, transmission, brakes, wheels, tyres, frame, suspension, final drive, and electrical system. Detailed diagrams, specifications, and step-by-step instructions are provided to assist with repairs and maintenance. It also includes sections on general information, troubleshooting, and safety precautions.
