1986 Suzuki LT250E QuadRunner 250 ATV Service & Repair Manual (P/N 99500-42011-01E)

This Suzuki LT250E QuadRunner 250 factory service manual covers maintenance, diagnosis and repair, with integrated LT250EF and LT250EG/EFG supplements, including the 1986 G-model updates. Publication 99500-42011-01E is the second edition, dated October 1990.

• Engine repair: Engine removal, cylinder-head and valve servicing, camshaft inspection, crankcase disassembly, counter balancer installation and recoil starter overhaul.

• Clutch and transmission: Initial engagement and lock-up tests, clutch component inspection, gear-shifting fork checks, transmission assembly and reverse mechanism service.

• Fuel and lubrication: Mikuni VM24SS carburetor disassembly, needle-valve inspection, float-height adjustment, vacuum fuel-pump checks and oil-system servicing.

• Electrical diagnosis: PEI ignition checks, charging-system tests, starter-motor overhaul, relay and switch inspections, and model-specific wiring diagrams.

• Brakes and chassis: Hydraulic front drum brakes, master-cylinder servicing, mechanical rear brakes, double-wishbone front suspension, steering alignment and rear axle overhaul.

• Service references: Periodic maintenance and lubrication charts, symptom-based troubleshooting, exploded views, special-tool listings, torque tables and component wear limits.

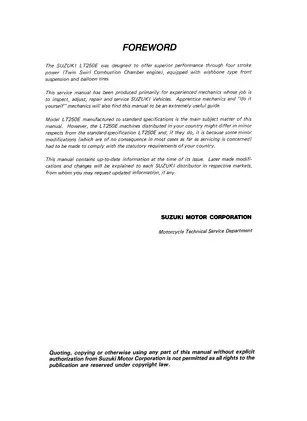

Suzuki wrote this manual primarily for experienced mechanics; apprentices and experienced DIY owners should be comfortable with precision measurements and the specified special tools.

Engine Diagnosis and Rebuild Coverage

Compression and oil-pressure tests provide checks before engine disassembly. Internal service extends to valve guides and seats, piston and ring inspection, crankshaft runout, camshaft journal clearance and crankcase bearings.

The TSCC profile views and valve timing diagram explain the engine layout, while the reassembly sections cover the cam drive chain tensioner, rocker arms and de-compression mechanism. Counter balancer punch-mark alignment is illustrated.

An oil-filter installation caution identifies a specific risk of serious engine damage if the filter is fitted incorrectly. Tool references include crankcase separating tool 09920-13120 and crankshaft installer 09910-32812 with attachment 09910-32850.

Clutch Tests, Gearbox Assembly and Model Updates

The centrifugal clutch section separates initial engagement from full lock-up testing, with inspection references for the shoes, clutch wheel and drive/driven plates. This distinction helps narrow down poor take-up or slipping before deciding which clutch components need inspection.

Transmission cross-sections show gear, washer and circlip positions. Separate instructions cover the shifting cam and forks, reverse shaft and switch; the clutch shoe nut is identified as having a left-hand thread.

The supplements document changes to clutch engagement, reduction ratios, engine-sprocket mounting and loaded toe-in checks. LT250EFG specifications also distinguish final-drive and chain configurations by market, so the supplement data matters when choosing the correct reference for the machine.

Carburetor, Fuel Pump and Oil Circuit

The VM24SS section explains the slow, main, starter-limiter and float systems before covering removal, inspection and reassembly. Fuel-system diagnosis includes the vacuum-operated pump, its diaphragm and check valves, plus tank, strainer and hose checks.

A lubrication-system flow diagram traces oil delivery through the engine and transmission. Oil-pump service covers removal and installation as a unit; the manual warns that attempting to dismantle its locked case can damage the securing screw, and replacement is by complete pump assembly.

Ignition, Charging and Starting Faults

Electrical testing covers magneto coils, ignition-coil resistance and spark performance, generator output, the regulator/rectifier and starter/neutral relays. Starter-motor service includes brushes, commutator and armature inspection.

Complete wiring diagrams and harness-routing drawings support circuit tracing. The LT250EFG diagrams distinguish Australia, Sweden and Venezuela from other markets, including the Sweden-only emergency switch.

Brake, Steering and Rear Axle Service

Chassis coverage includes front wheel cylinders, master-cylinder disassembly and hydraulic bleeding, along with rear brake shoes and camshaft service. Steering and suspension work covers tie rods, knuckles, wishbone arms, bushings and toe-in adjustment.

Rear axle instructions include bearing, seal and sprocket-flange work. Component-specific torque tables cover engine mountings, cylinder-head fasteners and axle-housing hardware. Brake and chassis work requires secure vehicle support and care around brake fluid.

A Preview of Oil Capacities, Plug Gap and Axle Torque

Engine-oil quantities distinguish the job: 1,600 ml for an oil change, 1,800 ml when the filter is changed too, and 2,100 ml after an overhaul.

The ignition service data specifies a 0.6–0.7 mm spark plug gap. For the left-hand-thread rear axle nut and lock nut, the chassis torque reference lists 160–200 N·m.

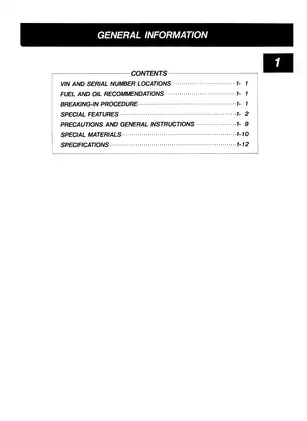

Bookmarked PDF and Wiring Detail

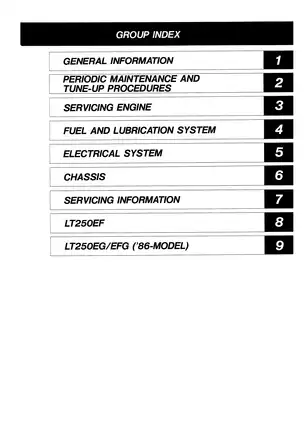

Chapter access and small labels: The manual's body text is not searchable. Embedded bookmarks link to the main chapters and both supplements; small wiring labels are readable when the sideways diagram pages are rotated and enlarged.

One printable English PDF contains 276 pages: 206 pages of base-manual material, 22 pages for the LT250EF supplement, 46 pages for the LT250EG/EFG supplement, and 2 imprint/back-cover pages. These counts include the front cover, introductory pages, section dividers and blank pages.
