Ducati Multistrada 1000DS Parts Manual Set (2003–2006) (P/N 915.1.184.2A)
638 Pages • RAR Download: 4 Printable PDFs (EN, FR, DE, ES, IT)
Ducati Models Covered & Key Technical Specifications
Ducati Motor Holding S.p.A.
Ducati Multistrada 1000DS Series 2003-2006
-
2003
- Multistrada 1000DS
-
2004
- Multistrada 1000DS
-
2005
- Multistrada 1000DS
-
2006
- Multistrada 1000DS
2005 Multistrada 1000DS oil pump and pump drive gear: up to engine number 21023 / from engine number 21024.
Ducati Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Ducati Multistrada 1000DS Parts Catalog, September 2003 (P/N 915.1.184.2A) | 161 |
| Ducati Multistrada 1000DS Parts Catalog, April 2004 (P/N 915.1.184.2B) | 163 |
| Ducati Multistrada 1000DS Parts Catalog, December 2005 (P/N 915.1.184.2C) | 161 |
| Ducati Multistrada 1000DS Parts Catalog, September 2006 (P/N 915.1.184.2D) | 153 |
Start with the catalog for your model year. Use the exploded views and parts lists to match individual components and hardware to Ducati part numbers and quantities before placing a repair parts order.
Use the applicable workshop manual for removal, assembly, overhaul, adjustments, and troubleshooting. Ducati’s catalog illustrations show where parts fit within an assembly. Torque values, valve clearances, and service tolerances belong in the workshop instructions.
PDF Search and Download

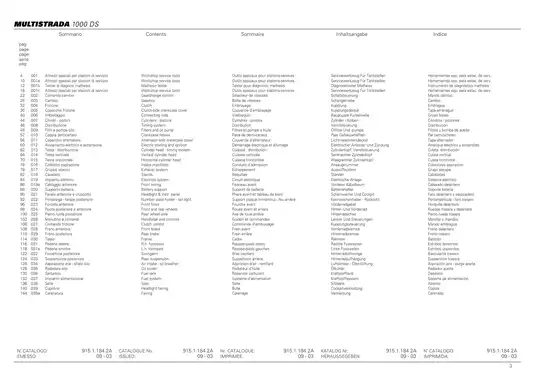

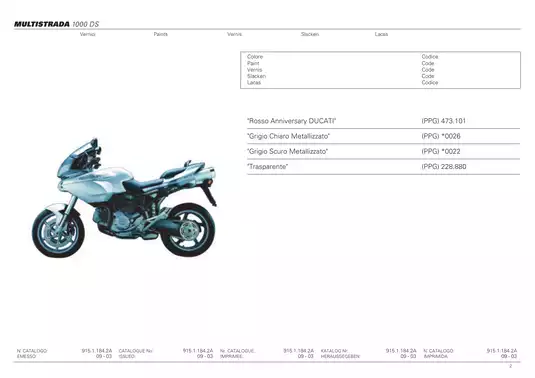

Parts lookup: Search the contents, parts lists, and numerical indexes by part number or description. Some paint names on the paint-reference pages are difficult to find through text search. Each PDF has a contents page and a parts-code index. Embedded bookmarks are absent.

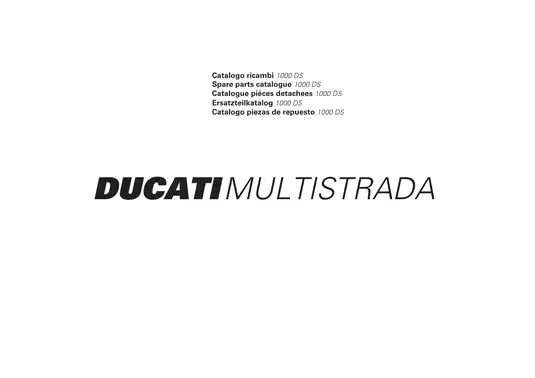

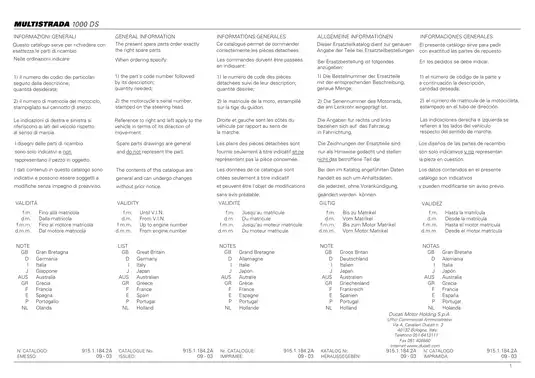

The RAR download contains four printable PDFs totaling 638 pages. Each file’s page count includes one cover, one blank page, one general information page, one paint-reference page, one contents page, and a ten-page parts-code index.
Exploded Views of the Engine, Chassis, and Electrical Parts
These selected catalog contents include major assemblies and workshop equipment. The catalogs also illustrate the rear wheel axle and the license plate holder with its tail light.
-
Engine components: Exploded views and parts lists for connecting rods, cylinders, pistons, vertical and horizontal cylinder heads, timing components, and crankcases.
-
Clutch and transmission: Gearshift controls, gearbox mainshaft and layshaft, clutch, and hydraulic clutch controls, with individual components and associated hardware.
-
Fuel, exhaust, and lubrication: Intake manifolds, injection and fuel-delivery components, exhaust assemblies, filters, oil pump, oil cooler, and breathers.
-
Chassis and bodywork: Front forks, rear suspension, swingarm, wheels, front and rear hydraulic brakes, handlebar controls, frame, seat, headlight fairing, and body panels.
-
Electrical components: Starting, ignition, charging, wiring harnesses, battery equipment, lighting, and instruments, with fuses, relays, and mounting hardware.
-
Workshop equipment: Special-tool part numbers and illustrated Mathesis and DDS diagnostic equipment lists, including cables, adapters, sensors, and accessory kits.
These catalogs are suited to mechanics and experienced owners who use exploded views to identify replacement parts and prepare repair orders.
Drawing Index and Market Fitment
Drawings run from 001 through 039a, including lettered subdivisions. Parts lists connect illustration callouts to Ducati part numbers, descriptions, quantities, and applicability notes. The numerical index lets you look up the drawing and callout from a known part number.
Check the market notes for headlights and injection control units, and match body panels by finish. Ducati asks for the motorcycle serial number stamped on the steering head when ordering parts.
Cylinder Heads, Gearbox, and Oil Pump
The cylinder-head drawings distinguish opening and closing rockers, valve shims, and standard and oversize valve seats and guides. The gearbox lists show bearings, spacers, and selectable shims for the mainshaft and layshaft. The alternator-side crankcase-cover drawing also identifies the generator.
The 2005 oil-pump listing assigns separate part numbers to the complete pump and its drive gear at the engine-number changeover. Check both entries against the engine number when ordering.
Wiring Harnesses and Diagnostic Equipment
Electrical system drawing 019 shows the harness and component locations. The 2003 and 2004 catalogs also have a separate front wiring drawing, 019a. Battery support drawing 020 identifies the battery, injection control unit, and regulator or rectifier. Circuit schematics and connector pinouts are outside the scope of these drawings.
The 2003–2005 editions list Mathesis equipment. The 2006 edition lists DDS (Ducati Diagnosis System), including the tester and manifold vacuum meter kit 97900.0215. The workshop tool lists also identify clutch drum holding wrench 88713.2133. Tester operating instructions and diagnostic routines are outside the scope of the catalogs.
Selected Valve Seat and Gauge Sizes
The vertical and horizontal cylinder-head lists identify oversize intake and exhaust valve seats marked 0.03 and 0.06, each with its own ordering code.
The workshop tool lists identify fork feeler gauges in 0.1, 0.2, and 0.3 mm sizes. These are tool sizes for ordering.
