Suzuki DT115/DT140 Outboard Service Manual (1983–1985)

This Suzuki service manual covers maintenance, troubleshooting, and repair of DT115 and DT140 two-stroke outboards, with commercial-market adjustment notes and power trim and tilt coverage. The workshop material is organized into 14 technical groups.

PDF Navigation and File Contents

Search, bookmarks, and wiring detail: OCR text supports searches across the service chapters, and embedded bookmarks link to the main sections. Small wiring labels require zooming; many labels on the additional wiring sheet are not searchable.

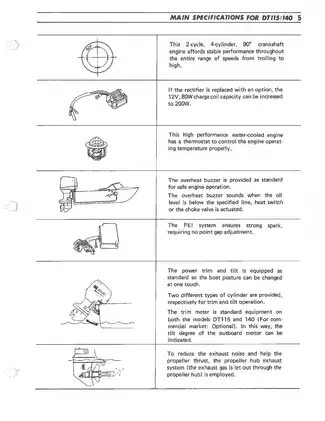

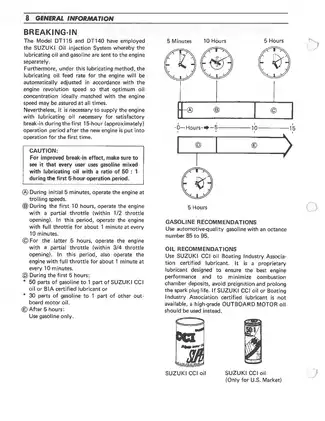

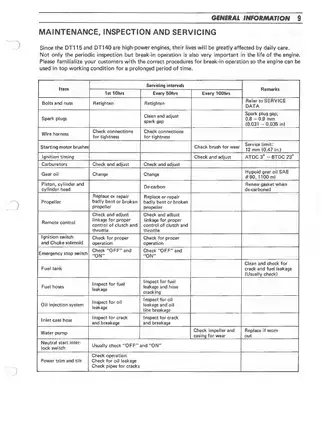

One printable, English-language 138-page PDF contains 137 pages of workshop material, including the group index, plus one additional DT115TC/DT140TC wiring diagram. The original cover and the specification pages numbered 3–4 are absent. The TC identifiers apply to the additional wiring sheet, not a separate TC repair manual.

Powerhead, Lower Unit, and Electrical Service

The following selected service topics show the manual’s repair scope rather than reproduce its full contents. Other topics include propeller selection and remote-control installation.

• Powerhead repair: Step-by-step engine removal, disassembly, and reassembly, with cylinder, piston, crankshaft, bearing, and reed-valve inspection.

• Fuel and oil injection: Carburetor inspection and synchronization, fuel-pump diaphragm checks, oil-pump installation, control adjustment, and delivery testing.

• Cooling system: Coolant circuit views, thermostat inspection, and water-pump impeller removal and installation within the gearcase procedures.

• Gearcase and clutch: Lower-unit teardown, gear shim selection, tooth-contact evaluation, shaft-clearance checks, and step-by-step clutch adjustment.

• Swivel and steering: Clamp-bracket, pilot-shaft, engine-mount, and drive-shaft-housing disassembly and reassembly.

• Power trim and tilt: Electrical installation, oil-level checks, hydraulic bleeding, oil-circulation diagrams, and power-unit pressure testing.

• Electrical diagnosis: Starter-motor inspection, PEI ignition checks, dynamic timing adjustment, CDI test charts, charging-circuit diagrams, and symptom-based troubleshooting.

The repair sections suit technicians and experienced outboard mechanics familiar with precision measurements, electrical testing, and the lifting equipment needed for powerhead removal.

Powerhead Inspection and Reassembly

The engine procedures use the DT140 as the working example and identify differences in the DT115 carburetors, silencer, and inlet case. Inspection extends to cylinder wear, piston-ring condition, crankshaft deflection, bearing condition, and reed-to-seat clearance.

Reassembly notes address bearing location, seal orientation, piston identification, and gasket replacement. The application chart of materials required identifies where lubricants, sealants, and thread-locking compounds belong.

Engine removal requires a crane or chain block and secure support for the removed powerhead.

Carburetor Balance and Oil Delivery

Separate carburetor illustrations and specifications distinguish the two models. The adjustment material connects float and needle-valve inspection with choke alignment, throttle synchronization, and trolling-speed settings.

Commercial-market notes identify different oil-delivery test specifications and a DT115 throttle-cam setting. The oil-pump check valves have different internal arrangements despite similar external appearances; the manual distinguishes their installation positions. It also warns that oil-injection leaks can cause engine seizure.

Fuel-pump inspection links diaphragm damage to symptoms such as inadequate carburetor supply or a persistently wet lower spark plug, giving a specific check to consider during fuel-system diagnosis.

Gear Shimming and Hydraulic Checks

The gearcase section explains how stamped gear deviations determine replacement shim thickness. Transmission gear tooth-contact illustrations and shaft-play checks complement the calculations, so a replacement gear can be assessed against both its markings and its installed fit.

Incorrect tooth contact can chip forward or pinion gear teeth. Reverse-gear adjustment uses the stamped-mark method rather than the contact-paste check described for the forward gear.

The trim-and-tilt section includes hydraulic circuit views and power-unit pressure checks using test tool 09915-79410. Its installation and bleeding information accompanies the separate bracket and cylinder removal work.

Ignition, Charging, and Fault Isolation

Meter wiring diagrams, the CDI unit test chart, and standard-versus-boosted battery-charging diagrams support circuit identification and testing. Starter coverage includes field-coil, armature, commutator, brush, and brush-holder checks.

The troubleshooting charts organize starting, stalling, overheating, clutch, and trim complaints by symptom and possible cause. Used with the component tests, they support a structured assessment before replacement parts are selected.

Examples of Engine Fits, Torque, and Coil Test Data

For powerhead inspection, the specified cylinder-to-piston clearance is 0.08–0.09 mm at the illustrated measuring locations. Cylinder-head bolt torque depends on bolt diameter: 8–12 N·m for 6 mm bolts and 40–60 N·m for 10 mm bolts.

The flywheel nut specification is 240–260 N·m, with a dedicated holder identified in the assembly procedure.

The electrical test chapter specifies ignition-coil primary resistance of 0.25 Ω ±20% and secondary resistance of 2.5 kΩ ±20%, measured at 20°C. These ignition-coil checks are separate from the magneto-coil tests.
