2011 Sharp AR-M350/M450 Service Manual (P/N 00ZARM350/A1E)

This 158-page May 2001 Sharp factory service manual PDF covers the AR-M350 (35 ppm) and AR-M450 (45 ppm) multifunction laser systems under Sharp document code 00ZARM350/A1E. Its primary focus is the MFP-specific scanner, controller, option integration, calibration, simulation, fault-code, and electrical information that separates these machines from the AR-P350/P450 base printer.

• Configuration and option coverage: Shows how the AR-EF1 B/W scanner module/DSPF, AR-RK1 scanner rack, and AR-M11 multi-function controller integrate with AR-D13/AR-D14 paper desks, AR-DU3/AR-DU4 duplex units, AR-FN6/AR-FN7 finishers, AR-MS1 mail-bin stacker, AR-PN1 punch unit, AR-DC1 power supply, and related network, fax, HDD, and PostScript options.
• Scanner and DSPF repair: Illustrated removal and assembly procedures cover the SPF unit, table and SPF glass, scan motor, scanner control and interface PWBs, operation panel, LCD/LVDS/inverter boards, scan lamp, CCD/lens unit, CIS unit, sensors, clutches, solenoids, rollers, and paper-feed components.
• Process, engine, and scanner calibration: Covers high-voltage output checks, LSU right-angle setup, print off-center and resist adjustments, scanner distortion and mirror-base alignment, DSPF hinge geometry, scan magnification, lead-edge and image-loss settings, original-size detection, density, shading, and width detection.
• Simulation-mode diagnostics: Provides sensor and load tests for the scanner/DSPF, paper feed, duplex, fusing, drive, fans, finishers, mail-bin, and operation panel, plus counter data, jam and trouble histories, ROM and option identification, toner-density monitoring, automatic developer initialization, process-correction checks, self-print patterns, HDD/DRAM tests, and touch-panel calibration.
• Trouble-code coverage: Details scanner, CIS/CCD shading, LSU, HDD, fusing, motor, power, PCU/ICU communication, toner/developer, desk/LCC, finisher, punch, fax, and network faults, with causes, checkpoints, linked simulations, and fatal/non-fatal operating-state tables.
• Maintenance and parts reference: Includes maintenance tables for the scanner/DSPF, printer engine, duplex and paper-feed options, finishers, mail-bin stacker, and saddle finisher, along with region-specific toner, developer, drum, PM-kit, heat-roller, cleaner, and staple part numbers and cartridge lot-number identification.

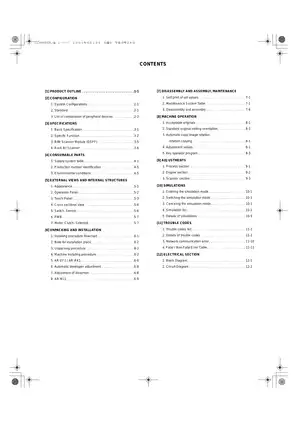

System Architecture and Installation

The AR-M350 and AR-M450 are AR-P350/P450-based machines with the multi-function controller installed as standard. The configuration section identifies required companion hardware and combinations that are not permitted. It also states that an AR-D13 or AR-D14 paper-feed desk is required for the MFP installation.

Factory installation coverage includes mounting the machine to the paper desk, fitting the AR-DC1 power supply and connecting it to the PCU PWB, assembling and aligning the AR-RK1 rack, installing the AR-EF1 scanner/DSPF, and changing to the AR-M11 controller while transferring the applicable option boards and EEPROM. Final coverage includes electrical settings, operational checks, automatic developer adjustment, and correction of scanner-rack image distortion.

Repair, Calibration, and Diagnostics

Repair detail is strongest in the scanner and DSPF chapters. The illustrated procedures reach beyond cabinet removal to the optical and feed hardware, control boards, display electronics, scan lamp, CCD/lens and CIS assemblies, motors, sensors, rollers, clutches, and solenoids. Maintenance tables extend through the drum, developer, transfer, fusing, paper-transport, duplex, desk/LCC, finisher, and mail-bin systems.

The adjustment chapter links mechanical setup to the proper simulation modes. It covers process high-voltage checks at the PCU PWB, LSU alignment, print-center and resist setup, scanner and mirror-base geometry, DSPF hinge alignment, original-size sensing, scan magnification, lead-edge and off-center correction, copy density, CIS gain, shading, and width detection. Density work references the Sharp UKOG-0162FCZZ test chart; self-print patterns 70 and 71 support magnification and squareness checks.

Representative visual references include the system-configuration and peripheral-combination charts, the scanner/DSPF cross-sectional sensor view, the option-installation flowchart, self-print patterns 70 and 71, the MFP system block diagram, and circuit sheets for the scanner, CCD, CIS, LVDS, fusing, PCU, and high-voltage sections.

The manual flags two repair traps. Forcing the AR-EF1 scanner connector without aligning its guides can damage the internal pins. The CCD/lens and CIS assemblies are factory-adjusted; disturbing the non-service screws can create a calibration condition that cannot be corrected in the field.

Scope to Know Before Buying

This is not a complete stand-alone base-engine repair manual. It includes engine maintenance schedules, process and fusing adjustments, simulations, trouble-code diagnosis, and selected engine electrical sheets, but Sharp directs base-engine disassembly procedures to the separate AR-P350/P450 service manual. Installation details for some individual option units are also handled in their own service publications.

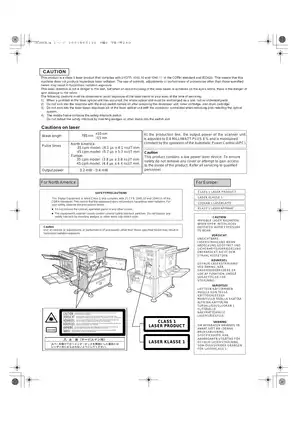

Because the manual includes laser, fuser, and live high-voltage service checks, follow its interlock and electrical-safety precautions. Energized measurements should be performed only by qualified service personnel using the specified test setup.
