Suzuki GSX-R600 1997–2000 Service & Repair Manual (P/N 99500-35062-03E)

Suzuki’s GSX-R600 service manual, P/N 99500-35062-03E, third edition (December 1998), contains the GSX-R600V base chapters and integrated GSX-R600W and GSX-R600X updates.

PDF Bookmarks and Wiring Diagram Detail

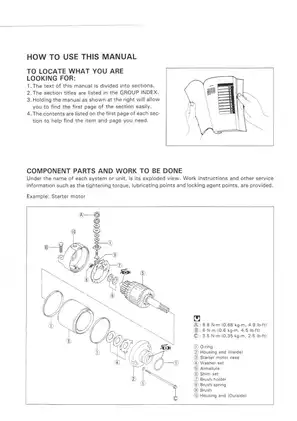

Search, navigation and diagrams: PDF text search is unavailable. Embedded bookmarks lead to the main sections and model updates. Small wire-color codes and connector labels in the wiring diagrams require zooming for comfortable reading.

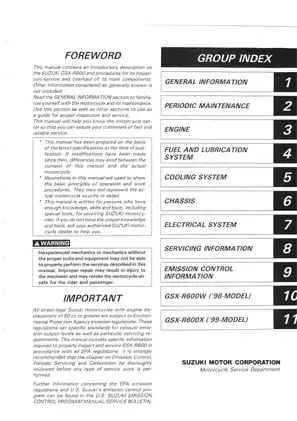

One printable English-language PDF contains 429 pages: 359 pages of base-manual material, a 50-page W update chapter, a 19-page X update chapter and one publication page. These counts include the cover, introductory material and eight blank separator pages.

Engine Overhaul, Carburetor Setup and Electrical Diagnosis

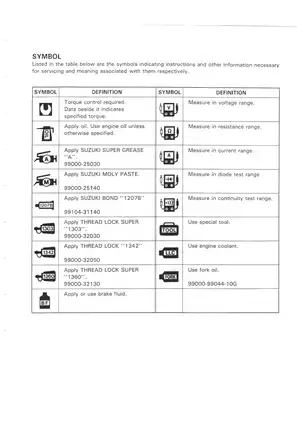

The selected service topics below preview the manual’s contents. Additional sections include speed-sensor testing and tire and wheel service.

• Maintenance and tune-up: Periodic maintenance charts, lubrication points, tappet adjustment, intake and exhaust shim-selection tables, compression testing and oil-pressure checks.

• Engine and transmission: Step-by-step engine removal, camshaft and cylinder-head disassembly, crankcase separation, crankshaft inspection, wet-clutch service and gearshift-linkage repair.

• Carburetors and fuel delivery: Mikuni BDSR36 removal, cleaning, reassembly, float-height and fuel-level adjustment, throttle-position-sensor checks and carburetor synchronization.

• Lubrication and cooling: Oil-pump inspection, oil-cooler service, radiator pressure testing, thermostat and fan checks, water-pump disassembly and seal replacement.

• Brakes and chassis: Hydraulic brake bleeding, caliper and master-cylinder overhaul, front-fork service, steering-stem bearing replacement and adjustment, and rear-suspension linkage inspection.

• Electrical and emissions: Charging, starter and ignition troubleshooting, market-specific wiring diagrams, California evaporative-emission checks and PAIR air-supply system inspection.

Suzuki wrote this manual for people with the knowledge, skills and tools, including special tools, required to service its motorcycles.

Model Updates and Changed Components

The W and X chapters refer back to earlier sections for unchanged procedures. Their revised component details and service data help mechanics choose the appropriate parts and specifications for maintenance, diagnosis and internal repairs.

The W chapter covers changed camshafts, crankshaft-bearing clearances and carburetor main-air control. It also documents the combined turn-signal/side-stand relay and its inspection connections.

The X chapter adds a revised cam-chain tension adjuster and its locking tool, 09917-62430. Revised clutch-plate combinations, oil-cooler installation details and lubrication routing are covered alongside the updated service data.

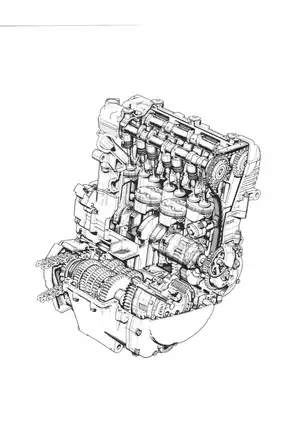

Internal Engine Inspection and Assembly

Inspection detail extends to piston-to-cylinder clearance, valve-guide and valve-seat service, transmission gear ratios and shift-fork wear. Bearing-selection tables identify crankshaft and connecting-rod bearing combinations. Clutch instructions show diaphragm-spring orientation and the sleeve-hub nut specification.

The camshaft-installation section warns that the chain can become trapped between the crankcase and drive sprocket. It also explains how uneven tightening of the special “9”-marked journal-holder bolts can damage the cylinder head or holder thrust surfaces.

Fuel Delivery and Electrical Test Equipment

Carburetor balancing includes gauge calibration using balancer 09913-13121 and attachment 09915-94511. Fuel-delivery checks cover pump output, the vacuum fuel valve and pump relay, with fuel and vacuum-hose routing drawings.

Ignition diagnosis goes beyond continuity checks: it includes coil and signal-generator peak-voltage measurements and CDI testing with digital ignitor checker 09931-94490. Charging-system fault charts distinguish generator, regulator/rectifier, battery and wiring faults.

Reference illustrations include the engine lubrication system chart, cooling-system flow diagram, side-stand/ignition interlock schematic, canister hose routing and valve-seat contact drawings.

Cooling and Chassis Service Limits

Cooling-system coverage includes radiator-cap testing, fan-switch operation and temperature-sensor resistance checks. Water-pump instructions identify bearing, mechanical-seal and oil-seal inspection and replacement requirements.

Front-fork procedures cover seals, bushings, oil-level setting and damping adjustments. The fork damper cartridge and rear shock absorber are treated as nonserviceable units; rear-suspension work covers removal, inspection, linkage bearings and adjustment.

Brake, pressurized cooling-system and suspension work require proper shop equipment. Consult a qualified technician if you are unsure of a procedure.

A Preview of Valve, Plug and Fastener Specifications

Valve-service data specifies cold intake-valve clearance of 0.10–0.20 mm, with separate intake and exhaust tappet-shim selection tables. Spark-plug service lists a standard gap of 0.7–0.8 mm.

For assembly reference, M10 cylinder-head bolts have initial and final torque specifications of 25 N·m and 43 N·m, together with an illustrated tightening order. Oil-pan bolts are specified at 14 N·m.
