Sharp SF-2040 / SF-D23 / SF-DM11 Copier Service Manual (P/N 00ZSF2040FM/E)
345 Pages • 17.28 MB • Instant, Printable PDF
Sharp Models Covered & Key Technical Specifications
Models: SF-2040, SF-D23, SF-S15, SF-S53, SF-DM11, SF-A55, SF-IC11
Sub-models / Variants: SF-CM11, SF-EA11, SF-EA12, SF-EA13, SF-71A, SF-71B, SF-DS15
Model Years: 1996–2000 (1996, 1997, 1998, 1999, 2000)
-
Copy Speed: 40 copies per minute
-
Paper Capacity: 500 sheets (standard cassette) + 50 sheets (manual feed)
-
Copy Volume: 12,000–15,000 copies per month
-
Warmup Time: Approximately 100 seconds
-
Weight: 71.2 kg (main body)
-
Dimensions: 633 × 650 × 607 mm

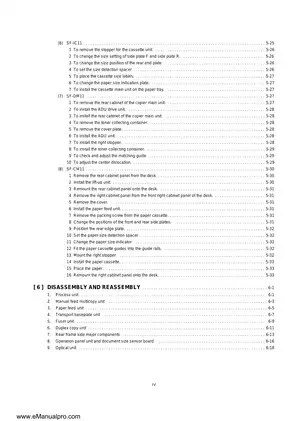

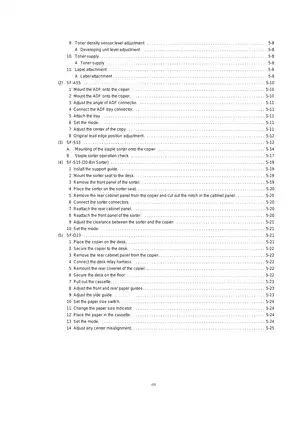

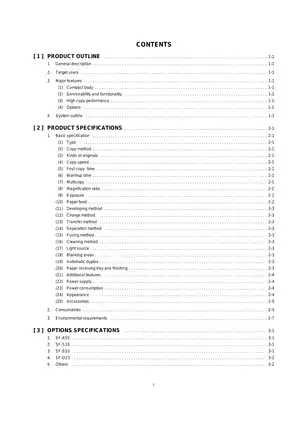

Sharp Manual Features & Content Preview
This 345-page PDF is a factory-service compilation built around the Sharp SF-2040 desktop copier, including the SF-D23 stand/3,000-sheet paper drawer and SF-DM11 automatic duplex module. It also contains change-only material for the SF-2540 platform and a separate partial SF-2050 excerpt. Because the material relies on service simulations, high-voltage measurement fixtures, board-level circuit analysis, and optical calibration, it is best suited to experienced copier-service technicians with the correct electrical test equipment.
- Sharp document set: Service Manual No.1, code 00ZSF2040FM/E; Service Manual No.2, code 00ZSF2040TM/E; the SF-2540 minor-change Service Manual No.1, code 00ZSF2540FM/E; and Circuit Diagram code 00ZSF2040C/CE.
- Mechanical repair coverage includes the process unit, manual-feed multicopy unit, cassette paper-feed system, transport baseplate, fuser, duplex copy unit, rear-frame components, operation panel, and optical unit, with illustrated disassembly and reassembly sequences.
- Factory adjustments address developing-doctor-blade clearance, magnet-roller main-pole position, developing bias, charger-current balance, grid voltage, separation output, lens and No. 4/5 mirror reference positions, magnification, focus, distortion, copy centering, exposure, density, and process control.
- Simulation and diagnostic tables provide sensor-state checks and individual-load tests for the optical system, RADF, sorters, desk, and duplex system, together with motor, solenoid, clutch, lamp, fan, high-voltage, jam-memory, trouble-memory, and maintenance-counter functions.
- Peripheral installation and setup procedures cover the SF-A55 reversing automatic document feeder, SF-S53 1-bin staple sorter, SF-S15 20-bin sorter, SF-D23 drawer/stand, SF-IC11 cassette, SF-DM11 duplex unit, and SF-CM11 replacement cassette, including option-mode setup and alignment checks.
- The separate circuit booklet indexes 17 system-block, PWB, timing-chart, and wiring-diagram sections. Representative references include the main PWB system block diagram, process-density sense PWB, auto-exposure sense PWB, SF-D23 desk main PWB, SF-DM11 duplex-tray diode PWB, and actual wiring diagram.
Process, Fuser, and Optical Service
Service Manual No.1 moves from installation and component identification into hands-on repair work. The process-unit section covers drum-area components, charging and cleaning hardware, and sensor access. Fuser material addresses removal, heat-roller and cleaning-roller service, separation parts, thermistor-related components, and reassembly. The optical section includes mirror-base wire routing and tension, copy-lamp positioning, lens travel correction, and the final image-geometry checks needed after optical work.
The adjustment chapter identifies the dedicated UKOGM0075CSZZ feeler gauge for the developing doctor blade and the UKOG-0110FCZZ electrode sheet with DHAI-0304FCZZ harness for charger-current measurement. It also documents the required meter categories, test points, simulation outputs, adjustment data, and acceptance criteria. Each value is tied to the applicable assembly and test condition.
Circuit Theory, Maintenance, and Model Differences
Service Manual No.2 explains how the copier works at system level: OPC image formation and process control, two-component magnetic-brush development, paper feed, transport and heat-roller fusing, corona high-voltage generation, the moving optical system, and the main electronic controls. Its electrical section follows the CPU, I/O, memory, start/stop control, heater-lamp control, solenoid and magnetic-clutch drivers, stepping-motor circuits, auto-exposure sensing, toner-motor drive, LCD/operation circuitry, DC power supply, desk control, and optional PPC communication interface.
The December 24, 1998 SF-2540 supplement is explicitly a minor-change manual and directs the reader back to the SF-2040 books for common information. It records the SF-A55-to-SF-A58, SF-S53-to-SF-S56, and SF-D23-to-SF-D24 option changes, along with revised clutch and spring arrangements, process-mark sensing, fuser scraper/cleaning-roller differences, copy-lamp positioning, developing-unit geometry, and process-control sensor adjustments. The 51-page SF-2050 portion begins in the middle of its adjustment chapter and continues through simulations, trouble codes, maintenance, and key-operator data; it is not a complete SF-2050 service manual.
Maintenance tables cover the drum, developer, cleaner blade and seals, charging plate, screen grid, heat rollers and separation pawls, ozone filter, feed and transport parts, lubrication points, and option counters. During doctor-blade clearance checks, careless feeler-gauge insertion can damage the developing doctor blade or magnet roller. The SF-D23 installation instructions also warn against resting the copier's weight on the desk's paper guide or other vulnerable parts.
Disconnect the copier from power and follow Sharp's safety procedures before cabinet, fuser, corona, or high-voltage service. Safety-marked electrical parts must be replaced with the specified components to preserve the machine's protection and performance.
