Hyster F108, E45XM, E50XM, E55XM, E60XM, E65XM Forklift DC Motor Maintenance Manual (P/N 897636, 897596, 1463744)

• Primary application: Hyster F108-family E45XM, E50XM, E55XM, E60XM, and E65XM electric lift trucks. Shared OEM sections also identify related XM/XM2, XMS, J-series, N30XMH, XL, and all-model applications, so match each procedure to the truck nameplate and installed equipment.
• Supplied as 29 separate OEM PDF sections totaling 873 pages, rather than one condensed motor booklet.
• Covers EV-100ZX SCR, EV-T100, EV-T100E, SR (SEM), and SP motor controllers, with parameter registers, status-code diagnosis, hand-set and PC procedures, bench checks, component repair, and operating theory.
• Mechanical repair coverage includes the drive axle, differential, speed reducer, service and parking brakes, optional seat brake, frame, counterweight, traction motor, steering axle, and power-steering assemblies.
• Hydraulic and lifting sections address the tank, pumps, filters, main control valve and linkages, relief checks, lift and tilt cylinders, side-shift carriage, and two-, three-, and four-stage mast arrangements.
• Electrical-system material covers ZX and SEM display panels, battery-discharge and hourmeter functions, contactors, fuses, switches, sensors, wire harnesses, power cables, controller connectors, instrument circuits, and lighting.
• Maintenance and specification references include scheduled inspection and lubrication, industrial battery care, capacities, battery and counterweight data, mast-speed configurations, tire and wheel information, fastener identification, and torque tables.

Coverage and Manual-Set Organization

This is a multi-section Hyster service set centered on the F108 electric lift truck family, not a single 2003 publication. It combines model-specific F108 material with shared Hyster sections used across several electric-truck families. The Electrical System cover specifically lists E45-65XM, E45-50XM2, and short-chassis F108 applications; other sections may also cover J-series, XMS, N30XMH, XL, or all-model configurations.

Nine publications display a clear Hyster part number: 897076, 897820, 897636, 897596, 897640, 910119, 910442, 910102, and 1463744. Other supplied PDFs begin directly on numbered service-section pages and are identified by title or SRM reference rather than an inferred publication number.

Controller, Wiring, and DC Motor Repair

EV-100ZX coverage includes adjustment procedures, register settings, status-code charts, fault isolation, SCR and diode checks, contactor and control-card repair, circuit protection, and theory of operation. EV-T100, EV-T100E, and SR (SEM)/SP sections add controller parameter maps, personality settings, hand-set routines, computer-based adjustments, stored fault review, factory-default restoration, and live diagnostic displays.

The computer material is period-correct. It describes serial-port connections, model-specific adapters, HYTECH and GE Sentry software, and legacy PC hardware. Examples named for that work include Hyster hand set P/N 1358471, HYTECH software P/N 897702, and adapter/cable kit P/N 1361412; the equipment and software are not supplied with the PDFs.

The 33-page Diagram and Schematic section contains 22 bookmarked figures, while the separate 46-page Electrical Diagrams publication adds power-distribution, harness, connector, and controller sheets. Named examples include Power Distribution Schematic, Power Cables and Battery Connector, EV-T100 Control Card Connections, Truck Management Module (TMM1), Hydraulic Schematic, and Wiring Diagram for Lights.

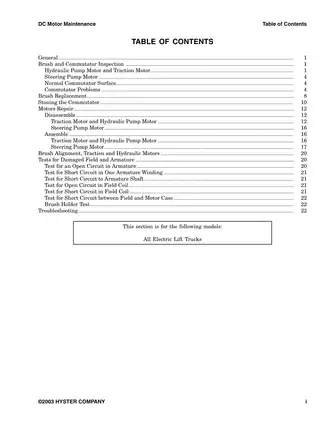

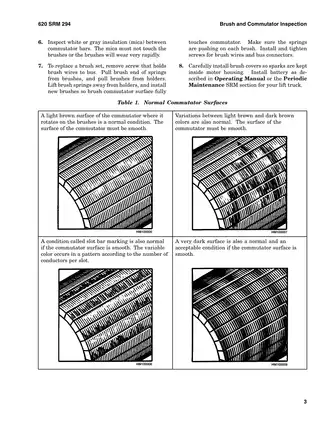

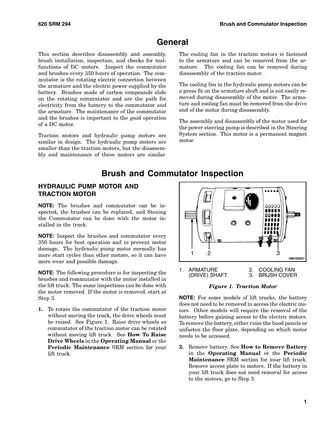

P/N 897076 (2003), the 27-page DC Motor Maintenance section, covers traction, hydraulic-pump, and brush-type steering motors. Procedures include brush and commutator inspection, surface-pattern diagnosis, brush replacement, spring-pressure checks, commutator stoning, disassembly and assembly, armature and field tests, and troubleshooting. It contains 17 numbered figures, including six exploded motor assemblies, plus the Normal Commutator Surfaces, Commutator Problems, and Brush Wear Replacement Guide tables. An Ideal 23-007M brush-seater stone or equivalent is specified.

A critical repair detail is the indexed brush-holder plate. Reinstalling it out of position changes electrical timing and can leave the motor with low output; the manual reserves timing correction for properly equipped motor-repair specialists.

Chassis, Hydraulic, Mast, and Steering Procedures

The drive-axle section covers differential and speed-reducer teardown, wheel bearings, gear-contact inspection, shim selection, reassembly, and installation. Brake procedures include master-cylinder and service-brake repair, parking- and optional seat-brake work, adjustment, bleeding, warning-circuit checks, and troubleshooting. Frame pages cover the battery restraint, counterweight, traction-motor removal, hydraulic tank, overhead guard, paint locations, and labels.

Hydraulic coverage follows oil flow through the tank, gear pump, main control valve, lift and tilt circuits, steering pump, steering control unit, and steering cylinder. Factory procedures include pump-seal replacement, filter service, valve disassembly, linkage setup, relief-pressure checks, rotary-actuator service, and leak diagnosis.

Mast material distinguishes two-stage limited free-lift, two-stage full free-lift, three-stage full free-lift, and four-stage full free-lift assemblies, along with standard and side-shift carriages. Repair sections cover fork and carriage removal, mast channels and rollers, wear strips and shims, chains and sheaves, cylinder installation, mast synchronization, chain adjustment, tilt checks, and troubleshooting. Separate lift- and tilt-cylinder manuals provide seal, piston-rod, lowering-control-valve, leak-check, stroke, and mast-angle procedures.

Steering documentation covers conventional power steering, on-demand power steering, and hydraulic steering-motor arrangements. It includes steering-column work, pump and motor removal, seal repair, steering-control-unit overhaul, steering-axle and cylinder repair, system bleeding, pressure checks, and optional encoder/activator diagnosis.

Maintenance, Specifications, and Scope Limits

The maintenance section consolidates safety checks, towing and blocking, daily and periodic service points, lubrication, brake and steering checks, battery inspection, motor-controller checks, mast and chain inspection, and fluid and sealant references. The specifications book adds model-dependent counterweight, battery, hydraulic, capacity, tire, mast-speed, and torque information, helping separate truck, voltage, pump, motor, and regional configurations before repair work begins.

Industrial battery guidance covers selection, counterweight requirements, specific gravity, cleaning, watering, hydrometer use, temperature correction, charging, connectors, charging-area equipment, and maintenance records.

This is service and repair documentation, not a parts catalog or complete operating manual. Not every section applies to every F108 truck, and controller, mast, steering, voltage, and production variations must be identified before using a procedure or parameter table. The electrical manuals require battery isolation and controller-capacitor discharge; shorting controller terminals is specifically prohibited. Mast, cylinder, battery, counterweight, and raised-truck work should be performed only with the lifting, blocking, protective equipment, and training specified by Hyster.
