2013 Arctic Cat 400 TRV ATV Service Manual
Complete Arctic Cat 400 TRV (2013) service, maintenance, and troubleshooting. Includes diagnostics, removal sequences, and exploded diagrams for engine, transmission, and chassis components. BCD789

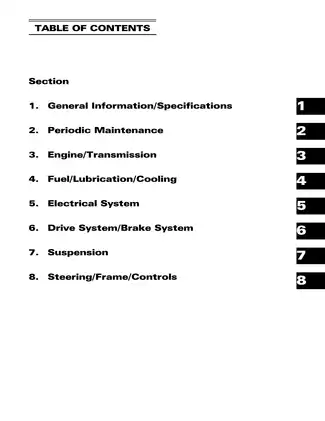

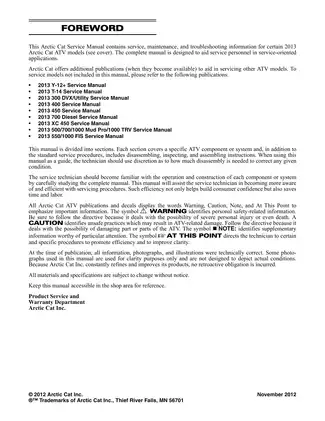

Manual Preview
Sample pages from the 2013 Arctic Cat 400 TRV ATV Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Arctic Cat 400 TRV (0486-464) - 2013 Essential Field Calibration Manual: Arctic Cat 400 TRV (2013) - Service, Repair & Troubleshooting Manual Hydraulic-Guide | Series Bundle.
- Certified Spark Plug Gap: 0.7-0.8 mm
- Designated Gas Tank Capacity: 20.1 L
- Design Front Differential Capacity: 275 ml
- Engineered Engine Oil Capacity: 2.8 L
- Primary Brake Fluid: DOT 4
- Baseline Taillight/Brakelight: 12V/8W/27W
Professional Workshop Service Manual & Technical Specifications
Essential Field Calibration Manual: Arctic Cat 400 TRV (2013) - Service, Repair & Troubleshooting Manual Hydraulic-Guide
Asset-ID: 0486-464 // Performance-Values: Engine Specifications / Fuel System Logic // Asset-ID: ATV
Introduction This manual covers the Arctic Cat 400 TRV ATV, providing essential procedures for its upkeep and repair. It details a wide range of systems and components.
Special Tools A number of special tools must be available to the technician when performing service procedures in this section. Refer to the current Special Tools Catalog for the appropriate tool description. Special tools are available from the Arctic Cat Service Department.
Specifications
- Documented Cycle Rate: 1250-1350 RPM establishes the engine's recommended idle speed baseline.
- Technical Installation Footprint: 20.1 L sets the fuel tank capacity requirements.
- Universal Threaded Fastener Data: 0.7-0.8 mm defines the spark plug gap settings.
- Core Alignment Specs: 2.5 L signifies the engine oil capacity for a standard oil change parameters.
- Rated Rotation Data: 25 x 10R12 represents the rear tire size configuration.
- Principal Output Performance: 7 psi is the specified tire inflation pressure mapping.
Front Differential/Rear Drive Lubricant The recommended lubricant is Arctic Cat Gear Lube or an equivalent gear lube which is SAE approved 80W-90 hypoid. This lubricant meets all of the lubrication requirements of the Arctic Cat ATV front differentials and rear drives.
Gasoline - Oil - Lubricant The recommended gasoline to use is 87 minimum octane regular unleaded. Arctic Cat ACX All Weather synthetic engine oil is recommended for engine lubrication.
Preparation For Storage Arctic Cat recommends the following procedure to prepare the ATV for storage. This includes cleaning the ATV thoroughly, adding fuel stabilizer, and protecting components from deterioration.
Preparation After Storage Taking the ATV out of storage and correctly preparing it will assure many miles and hours of trouble-free riding. This includes cleaning the ATV, checking controls, and changing fluids.
Troubleshooting This manual offers systematic troubleshooting for common issues, aiding technicians in diagnosing and resolving problems efficiently. The troubleshooting section covers various problem categories such as starting issues, engine performance, battery problems, and steering issues.
Torque Statement This manual documents torque specifications for various components to ensure proper assembly and structural misalignment prevention.
