JCB 8080 Hydraulic Excavator Service & Repair Manual (P/N 9803/9330)

This JCB service manual (Publication No. 9803/9330, Issue 3) covers the 8080 Midi Excavator, from routine maintenance to electrical diagnosis and hydraulic component repair. Machine-identification guidance covers the data plate, engine number and EMS serial-number display.

• Hydraulic repair: Pump disassembly and reassembly, control-valve removal, joystick servicing, JCB ram resealing, rotary coupling repair and slew motor overhaul.

• Electrical diagnosis: ECU-MIDI input/output tests, EMS error codes, engine throttle calibration, wiring diagrams, harness repairs and starting/charging tests.

• Travel and undercarriage: Traction-motor fault finding, removal and bleeding; track gearbox servicing; track replacement; recoil unit, idler wheel and roller repair.

• Body and attachments: Upper structure, boom, dipper, kingpost and dozer removal and replacement, mechanical quickhitch instructions and direct glazing procedures.

• Engine maintenance: 4JG1 diesel servicing, cooling-system maintenance, air-filter replacement, fuel filter/water separator service and diesel fuel-system bleeding.

• Air conditioning: R-134a system operation, pressure-based diagnosis, sight-glass fault charts, leak testing and compressor belt adjustment.

• Service data: Lubrication tables, standard and rockbreaker maintenance schedules, grade 8.8 fastener specifications, hydraulic fitting torques, fuse ratings and component wear limits.

Written for JCB distributor service engineers receiving or having completed JCB training, this manual assumes sound knowledge of workshop practice, safety and hydraulic earthmoving equipment repair.

ECU-MIDI and EMS Diagnostics

The AMS (Advanced Management System) section explains communication between the ECU-MIDI, EMS panel and facia switch panel. Diagnostic menu charts and error-code tables distinguish open circuits, short circuits and system faults.

ECU output-test notes explain voltage readings caused by internal pull-up resistors, helping avoid mistaking normal circuit behavior for a failed controller. Throttle calibration is covered after controller, sensor or linkage changes.

The Throttle Control circuit diagram and Main Cab Harness Connector Locations support fault tracing. Separate circuit descriptions cover servo isolation, slew braking, auxiliary flow and the redundancy system.

Hydraulic Pump, Valves and Rams

The variable-displacement axial-piston pump procedures extend to internal inspection and reassembly. Control-valve hose maps identify the optional tenth section and ISO/SAE changeover connections.

Color-coded pressure diagrams explain single-spool and two-spool multifunction operation. Pump exploded drawings and slew motor sectional views accompany component inspection and assembly procedures; rotary coupling coverage includes port identification and seal replacement.

The JCB Ram Sealing Procedure distinguishes later metric-threaded ram seals and identifies seal-fitting tools 892/00334 and 892/01027. Its precautions address rod-seal damage from exposed piston-rod threads.

Revised rockbreaker schedules adjust return-filter and suction-strainer maintenance to attachment usage.

Track Drive and Running Gear

Transmission coverage concentrates on traction motor/reduction gear diagnosis, unit removal and refitting, and motor bleeding. Steel-to-rubber track conversion instructions account for track guides and recoil-unit configuration.

Idler wheel and top/bottom roller chapters cover disassembly, seal replacement and leak testing after assembly. Recoil-unit work requires equipment that safely contains the spring load.

Body, Glazing and Air Conditioning

Boom and kingpost procedures include pivot-pin and bushing inspection, while upper-structure instructions address slew-ring positioning. Direct glazing removal and replacement includes frame preparation, glass-spacing details and sealant cross-sections. The glazing notes explain how contact with the frame can chip and eventually break replacement glass.

Air-conditioning diagnosis relates gauge readings and sight-glass indications to specific faults. Refrigerant charging and discharging procedures are excluded and require appropriately trained personnel with specialist equipment.

Engine Coverage and Workshop Precautions

Engine coverage identifies the 4JG1 Tier II diesel and is limited to technical data and routine maintenance. For further engine work, the publication refers to the separate engine service manual, P/N 9806/2180, which is not included in this PDF.

Review the manual's workshop precautions, particularly those covering stored hydraulic pressure, suspended assemblies and recoil springs.

Hydraulic Pressure and Sensor Specification Preview

These examples are a small selection from the manual's pressure-test and electrical sensor data.

The main-relief test specifies 300 bar at port Pg1 with the dipper on relief and hydraulic oil at 45-55°C. The engine-coolant temperature table lists 850 ohms at 80°C, relating sensor resistance to the EMS temperature display.

PDF Navigation, Diagram Detail and Page Count

Search, bookmarks and diagrams: Text search works only in parts of the PDF; most body text has character encoding that prevents reliable word searches. The 21 numbered bookmarks jump at 20-page intervals. Small schematic labels require zooming, and some sheets require rotation.

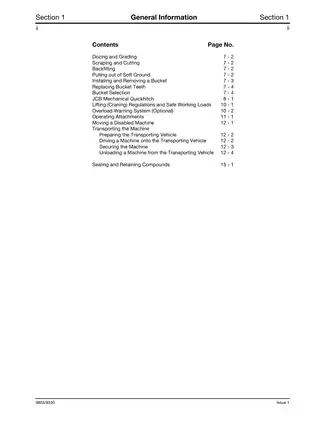

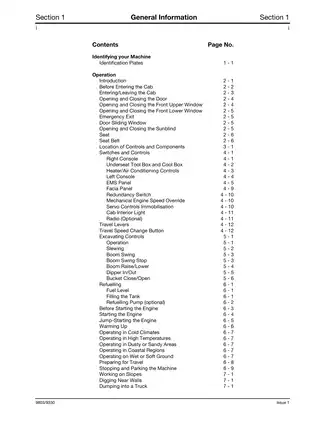

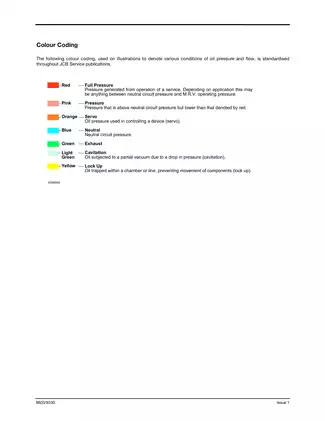

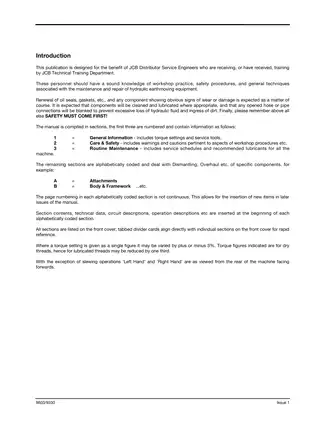

Supplied as one printable, 401-page PDF in English. The total includes the original cover, introduction and hydraulic color-code guide; these three opening pages are already included in the page count.
