Cub Cadet & White Outdoor Z-Series 1997–2000 Mower Service Manual (P/N 769-00436)
106 Pages • 1 Printable PDF (English) • Download
Cub Cadet Models Covered & Key Technical Specifications
Models: Z-42, Z-48, Z48L, Z-54, Z-54L, Z-16, Z-180, Z-180L, Z-200, Z-220, 364, 365, 365L, ZT-1850, ZT-2150, ZT-2250
Models & Model Codes:
Z-42 — Cub Cadet: 53AC305G100, 53BA1B2G100; engine: Kohler Command CV15S (Spec 41535).
Z-48 — Cub Cadet: 53AC355M100, 53BA1B5M100; engine: Kohler Command CV18S (Spec 61542).
Z48L — Cub Cadet: 53AC385K100, 53BA1D5M100; engine: Kawasaki FD50V (Spec AS06).
Z-54 — Cub Cadet: 53AC365M100, 53AC385K100, 53BA1B6K100; engine: Kohler Command CV20S (Spec 65540).
Z-54L — Cub Cadet: 53AC365K100, 53BA1D5K100; engine: Kawasaki FD50V (Spec AS06).
Z-16 — White Outdoor: 53AC225G190, 53BA1A3G190; engine: Briggs & Stratton 311777 (Spec 0139).
Z-180 — White Outdoor: 53AC235M190; engine: Briggs & Stratton 350777 (Spec 1135).
Z-180L — White Outdoor: 53AC265K190; engine: Kawasaki FD50V (Spec AS06).
Z-200 — White Outdoor: 53AC275K190, 53BA1A6M190; engines: Briggs & Stratton 351777 (Spec 1124) and 407777 (Spec 0128).
Z-220 — White Outdoor: 53BA1A7K190; engine: Briggs & Stratton 407777 (Spec 0128).
364 — Cub Cadet: 53AA1A5L100; engine: Briggs & Stratton 407777 (Spec 128).
365 — Cub Cadet: 53CA1B6K100; engine: Kohler Command CV20S (Spec 65558).
365L — Cub Cadet: 53CA1D5K100; engine: Kawasaki FD50V (Spec AS06).
ZT-1850 — White Outdoor: 53AA1A5L190; engine: Briggs & Stratton 407777 (Spec 0128).
ZT-2150 — White Outdoor: 53CA1A6M190; engine: Briggs & Stratton 407777 (Spec 0128).
ZT-2250 — White Outdoor: 53CA1A7K190; engine: Briggs & Stratton 407777 (Spec 0128).
Sub-models / Variants: 42-inch deck, 44-inch deck, 48-inch deck, 54-inch deck, Liquid Cooled
Serial number ranges: Cub Cadet Z-42, Z-48, Z-54 and Z-54L: I017G9-H318G9 and K018G9-F309G9; Cub Cadet Z48L: I017G9-H318G9.
Model Years: 1997–2000 (1997, 1998, 1999, 2000)
-
Engine power: 15 HP to 22 HP
-
Fuel capacity: 5.5 gallons
-
Electrical system: 12V Negative Ground
-
Wheelbase: 44 inches
-
Blade bolt torque: 90–115 ft. lbs.
-
Maximum engine speed (no load): 3500 R.P.M. (Z48L, Z-54L, Z-180L, 365L); 3600 R.P.M. (all other listed models)
-
Transmission: Twin hydrostatic transaxles
Cub Cadet Manual Features & Selected Content Preview
This Cub Cadet and White Outdoor Z-Series service manual, Form No. 769-00436 (81602), covers Cub Cadet Z-42, Z-48, Z-48L, Z-54, Z-54L, 364, 365, and 365L, plus White Outdoor Z-16, Z-180, Z-180L, Z-200, Z-220, ZT-1850, ZT-2150, and ZT-2250. The closing factory reference lists contain 1997-2002 model-year entries.
PDF Search, Navigation, and Page Count
Text search and diagram viewing: Text search is limited to cover model names and navigation labels; the service text is not searchable. Index links and page-navigation buttons provide navigation, but there are no embedded PDF bookmarks. Small wire-color labels and connector numbers require enlargement, and the sideways schematic pages need rotation for upright viewing.

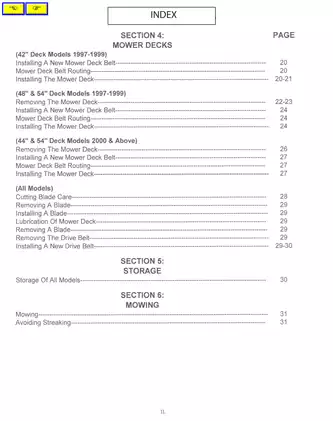

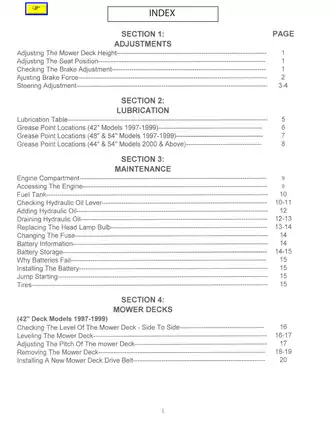

One printable English PDF contains 106 pages: 98 numbered pages plus front and back covers, one intentional blank page, the technician notice, and a four-page index. Two notes pages are already included in the numbered section.
Deck Service, Steering Setup, and ZTT Repair
These selected service topics outline the manual’s coverage. Additional sections address seasonal storage and mowing patterns for avoiding streaking.
-
Mower decks: Deck removal and installation, belt replacement and routing, blade service, spindle lubrication, and separate procedures for early and later deck configurations.
-
Steering and neutral: Control-tower alignment, control-rod and hydrostatic-rod adjustment, rear-wheel no-motion testing, and the final creep check after transaxle installation.
-
ZTT drivetrain repair: Step-by-step procedures for paired-transaxle removal, gearbox disassembly, internal inspection, axle and bearing work, sealing, reassembly, and installation.
-
Engine maintenance: Oil and filter changes, air-cleaner service, spark-plug checks, liquid-cooled engine maintenance, and model-specific tune-up specifications.
-
Electrical reference: Sixteen main/tractor and engine wiring schematics, connector pin layouts, key- and PTO-switch contact tables, and PTO clutch specifications with production-break notes.
-
Chassis and lubrication: Brake-force checks, hydraulic oil inspection and service, battery maintenance, and grease-point maps for the different deck generations.
This material was prepared for trained technicians experienced in servicing and repairing this type of equipment; untrained or inexperienced users are directed to an authorized service technician or dealer.
Deck Generations and Chassis Maintenance
Deck procedures distinguish the 1997-1999 configurations from the 2000-and-later designs. Side-to-side leveling and front-to-rear pitch checks accompany the retaining-arm and front-lift-rod arrangements, tension-bar release, and clutch-pulley belt routing. Those distinctions help identify the correct procedure before parts are removed from an early or later deck assembly.
Maintenance pages address seat position, fuel-tank access, the hydraulic filter and both axle drains, headlamp and fuse replacement, and battery electrolyte testing and storage. The tire section explains how unequal rear-tire diameter affects straight-line tracking.
Inside the ZTT Gearbox
The photo-illustrated repair section covers hydraulic-line and control-linkage handling, pump separation, brake-shaft and shoe inspection, reduction and planetary gears, axle seals, and housing-clearance measurement with parallels and a depth micrometer. Internal repair procedures concern the gearbox; the hydrostatic pump is removed and refitted as an assembly.
Pressing the axle out damages its bearing, and supporting the housing on its mounting ears during pressing can break the casting. Excess case sealer can impair transmission operation, while the otherwise matching left- and right-side units require different pump orientations.
Safety coverage includes secure support of the raised mower during neutral and transaxle work and the hazard of checking hydraulic leaks by hand.
Wiring Schematics and PTO Clutch Selection
The schematic section separates main and engine harnesses. Examples include the Z-42/Z-16, Z-48/Z-180/Z-200, Z-54/Z-200/Z-220, 364/ZT-1850, and 365/ZT-2150/ZT-2250 main-harness drawings, plus the 365L engine harness.
These drawings identify starting, charging, lighting, PTO, and safety-interlock connections for the respective configurations. The PTO clutch table distinguishes three Z-42 configurations using first-production and dated production-break notes, with corresponding clutch and deck-pulley part numbers.
Engine Builds and Troubleshooting Limits
Specification sheets distinguish Kohler Command CV15S, CV18S, and CV20S engines, Kawasaki FD50V liquid-cooled installations, and Briggs & Stratton 311777, 350777, 351777, and 407777 builds. They provide valve and ignition data, capacities, hydrostatic-drive information, dimensions, and engine- and chassis-related torque references.
The Z-200 sheets separate the 1997-1998 Briggs & Stratton 351777 build from the 1999 407777 build, helping keep their specifications distinct. The troubleshooting chart addresses starting and running problems, overheating, vibration, mulching performance, and uneven cutting.
Engine coverage is limited to maintenance, tune-up specifications, liquid-cooling service, and fault diagnosis; this is not an internal engine overhaul manual. The closing Cub Cadet and White Outdoor lists cross-reference factory model numbers, serial-number entries, and related operator, parts, and engine literature. Those literature references are not additional included manuals.
A Preview of Clutch Test Data and Gearbox Clearance
For the 364’s PTO clutch, part number 717-3467, the specification table lists 4.89 amps of current draw and 2.45 ohms resistance, with a ±5% resistance tolerance.
The ZTT gearbox reassembly section specifies an axle-shimming clearance of 0.005–0.020 inch. Housing measurements and hardened shims are covered as part of establishing clearance without binding.
