Hyster F005 XL Forklift Service Manual Set (H70XL–H110XL)

733 Pages • ZIP Download: 35 Printable PDFs • 25.74 MB

4.5starstarstarstarstar_half(2)
$26.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Hyster Models Covered & Key Technical Specifications

Models: H3.50XL, H4.00XL-5, H4.00XL-6, H4.50XL, H5.00XL

Sub-models / Variants: H70XL, H80XL, H90XL, H100XL, H110XL, H4.00XLS-6 (H90XLS, counterweight data in the frame section)

Serial breaks: H3.50–5.00XL (H70–110XL) powershift throttle linkage changes from F5D–1501 or F5A–7172, according to serial prefix. The T46M powershift omits the cold-oil relief valve after transmission serial number T46M6999.


  • Engine: GM V-6 4.3 liter, Perkins 4.2482 (LG), Perkins 1004-4 (AA)

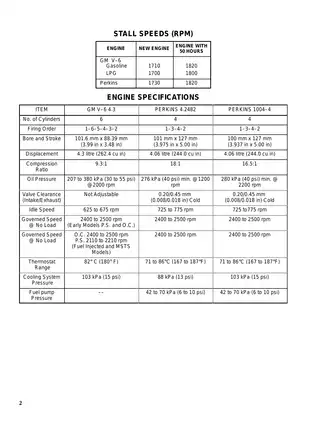

  • Transmission variants: Three-speed manual with oil clutch, single-speed powershift with direction lever or Monotrol pedal. The shared powershift repair section includes stall-speed data for T46M and T54M transmissions.

  • Cooling system pressure: 103 kPa (15 psi) for GM V-6 4.3 liter and Perkins 1004-4, 88 kPa (13 psi) for Perkins 4.2482

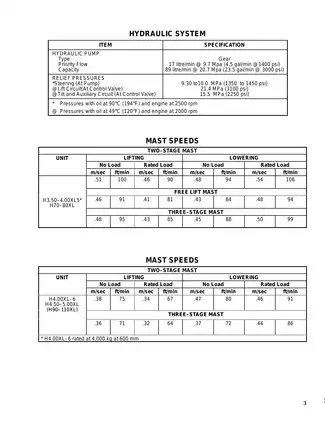

  • Hydraulic tank capacity: 36.0 liters

  • Fuel tank capacity: 60.0 liters

  • Transmission fluid capacity: 17.0 liters (Powershift)

  • Alternator output (GM V-6): 38 amps @ 650 RPM / 62 amps @ 2200 RPM (hot)

Hyster Manual Features & Selected Content Preview

Publication Pages
Capacities and Specifications — H3.50XL (H70XL), H4.00XL-5 (H80XL), H4.00XL-6 (H90XL), H4.50XL (H100XL), H5.00XL (H110XL) 8
Periodic Maintenance — H3.50–5.00XL (H70–110XL) and related models 44
The Frame — includes H4.00XLS-6 (H90XLS) counterweight data 13
GM 4.3L V-6 Engine 35
Perkins 4.236 and 4.2482 Diesel Engines 32
Perkins Series 1000 Diesel Engines 91
Weber Carburetor and Governor — GM 4.3L V-6 and 5.7L V-8 11
LPG Fuel System — GM V-6 19
Cooling System 6
Electronic Engine Control — Description and Operation 16
Electronic Engine Control — Troubleshooting and Repair 81
Microprocessor Spark Timing System (MSTS) 31
High Energy Ignition (HEI) 19
Alternator 15
Starter, Solenoid, and Solenoid Switch 8
Gauges, Meters, and Senders 13
Electrical Schematic — Electrical, Hydraulic, and Powershift Diagrams 14
Wire Schematic — Engine, Instrument Panel, and Optional Lighting 14
Three-Speed Manual Transmission and Differential 25
Oil Clutch System 9
Single-Speed Powershift Transmission — Description and Operation 16
Powershift Transmission Assembly — Repair and Testing 33
Speed Reducer and Differential 13
Drive Axle Assembly 7
Gear Pumps 12
Hydraulic Pump Chain Drive 5
Hydraulic System 8
Main Control Valve 15
Hydraulic Brake System 17
Steering Axle 9
Steering Housing and Steering Control Unit 14
Vista Masts and Side-Shift Carriages 32
Lift Cylinders 26
Tilt Cylinders (2100 SRM 103, P/N 910102) 13
Inch and Metric Fasteners 9

Use the truck-specific maintenance and specifications sections to match the machine and its service data. The shared Hyster component sections cover bench repair, adjustment, and fault isolation for the corresponding assemblies.

The truck specification tables identify the GM 4.3L V-6, Perkins 4.2482, and Perkins 1004-4 configurations. The Perkins 4.236, 1004-4T, and six-cylinder 1006-6 and 1006-6T appear in shared engine chapters. The GM 5.7L V-8 appears in the shared Weber carburetor and governor chapter. H4.00XLS-6 (H90XLS) is identified in the frame chapter’s counterweight table.

PDF Files, Navigation, and Diagram Detail

Text search and diagram labels: Most sections support text search. The GM 4.3L V-6 and HEI sections have text encoding that prevents ordinary body-text searches. The Electrical Schematic PDF has searchable captions on some pages, while the drawings and some clutch and transmission tables are image-based. Embedded bookmarks are available in 33 of the 35 PDFs. The Capacities and Specifications and Wire Schematic files have no bookmarks. Small wire and connector labels are best read at higher zoom.

The ZIP contains 733 pages across 35 printable PDFs. The total includes one cover page, two standalone safety pages, and two notes pages.


Engine Fault Finding, Drivetrain Repair, and Lift Systems

These are selected service topics. The files also cover starter and solenoid testing and instrument-panel gauges and senders.

  • Engine and fuel systems: GM V-6 removal, internal inspection, and overhaul, plus Perkins diesel checks and repairs. Separate sections cover Weber carburetor and governor service and GM V-6 LPG fuel-system repair.

  • Electronic engine controls: TBI 220 fuel injection, EST ignition, ECM fault codes, ALDL data, sensor checks, fuel-pump circuits, and connector and terminal repair.

  • Transmission and drive axle: Three-speed manual transmission and oil clutch repair, single-speed powershift clutch and torque converter work, speed reducer and differential service, bearing adjustment, and gear-contact checks.

  • Hydraulics, brakes, and steering: Gear pumps, pump chain drive, flow-divider adjustment, main control and relief valves, brake booster and master cylinder service, steering axle and control unit repair, and brake and steering bleeding.

  • Masts and cylinders: Vista mast and side-shift carriage work, lift and tilt cylinder repair, lift-chain adjustment, and leak checks.

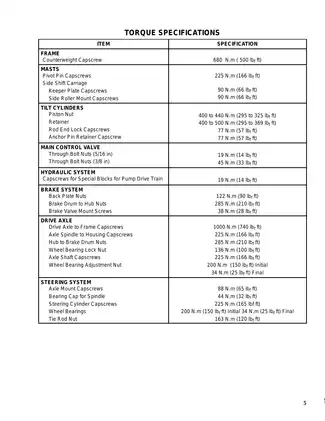

  • Wiring and service data: Early- and later-production electrical diagrams, instrument-panel wiring, hydraulic and powershift schematics, maintenance schedules, capacities, torque and fastener tables, wear limits, and clearances.

This material is intended for trained forklift service technicians. It includes precautions for blocking the truck, securing raised mast components, relieving hydraulic pressure, handling wheels and tires, lifting assemblies, and isolating electrical power.

GM V-6 Diagnostics and Harness Repair

The electronic control section explains how the ECM, PROM, and CalPak work with the ALDL connector, TBI 220 throttle body, and EST distributor. Charts A-1 through A-10 cover problems such as a missing Check Engine light, loss of ALDL data or Code 12, and faults in the injector, fuel-pump relay, ignition, and idle air control circuits.

The ECM Code Identification Chart groups faults by circuit, including coolant temperature (CTS), throttle position (TPS), manifold pressure (MAP), and governor control. For a crank/no-start complaint, Chart A-3 points to separate injector, fuel-pressure, and ignition checks so a technician can narrow down the affected circuit before choosing a repair.

Repair coverage includes the throttle body, injectors, pressure regulator, TPS, IAC valve, distributor, ECM, PROM, CalPak, and harness terminals. The special-tool pages identify the HYS1005 scan tool, HYS1003 fuel-pressure gauge, HYS1004 terminal kit, and OTC 3320 idle air control tester, along with connector adapters, an injector pulse tester, and a spark tester.

Engine Overhaul and Fuel-System Service

The GM V-6 section covers cylinder-head, valve, and rocker-arm work, block and bore inspection, timing components, camshaft and lifters, crankshaft, pistons and connecting rods, and the flywheel housing. It also covers lubrication, water pump and thermostat service, belt checks, and compression testing. The chapter warns that some engine parts differ by model year and can cause wear or failure if mixed.

The Perkins sections cover engine identification, injection-pump timing, injector checks, fuel-system bleeding, valve clearance, timing gears, oil-pump inspection, and cylinder liners. The Series 1000 chapter includes turbocharger service for its turbocharged engines. The diesel sections direct internal injection-pump repairs to an authorized specialist.

Powershift Testing, Hydraulics, and Wiring

The powershift repair section shows early- and later-production throttle linkage and clutch-pressure port layouts. It also covers Monotrol switch checks, inching linkage adjustment, and stall tests that help distinguish engine power problems from torque converter or clutch faults.

For hydraulic repair, the gear pump section warns that housing sections can fit in the wrong positions, causing wear or pump failure. The mast and cylinder sections pair assembly views with chain adjustment, cylinder leak checks, and side-shift carriage service.

The wiring files include the early-production gasoline/LPG and later-production Perkins 1004-4 electrical schematics, plus the GM 4.3L V-6 gasoline wiring schematic. The powershift hydraulic schematic for Monotrol-equipped trucks shows the control circuits and pressure check points.

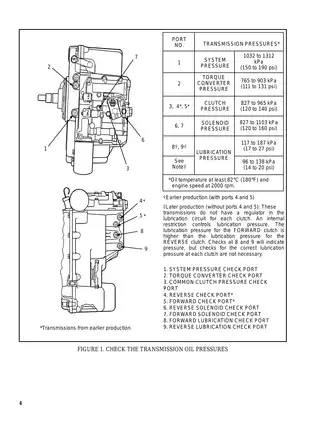

Powershift Pressure Test Preview

The powershift repair section lists a system check-port pressure of 1,032–1,312 kPa (150–190 psi) at 2,000 rpm with transmission oil at or above 82°C (180°F).

Under the same test conditions, the torque converter check port has a separate specification of 765–903 kPa (111–131 psi). The two readings distinguish regulated pump pressure from pressure supplied to the torque converter.
