2006–2008 Hyster G108 E45Z, E50Z, E55Z, E60Z, E65Z Forklift Service Manual Set (P/N 1534734, 1534735)

1,008 Pages • ZIP Download, 23 Printable PDFs • 59.33 MB

4.5starstarstarstarstar_half(4)
$16.05 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

print
Save & print
Keep a copy on your device
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

Hyster Models Covered & Key Technical Specifications

Models: E2.00-3.20XM (E45-65Z) [G108]; shared-section coverage: E3.50-5.50XL, E4.50XLS (E70-120Z, E100ZS), V30ZMD, E1.50-2.00XM (E25-35Z, E40ZS), J2.00-3.20XM (J40-65Z); selected mechanical sections also cover E2.00-3.20XM (E45-65XM, E45-65XM2) [F108]

Sub-models / Variants: AC Electric, Gen IV, Gen V, 36V, 48V, 72V, 80V, Electro-Hydraulic option, Standard Flow, High Flow

Model Years: 2006–2008 (2006, 2007, 2008)

Serial Numbers: [A416/B416], [D210/E210], [E114/F114], [G108], [D098/E098], [F108] (series/chassis codes; coverage varies by section)


  • Voltage configurations: 36V, 48V, 72V, 80V

  • Coil resistance (steering contactor): 174 ohms (36/48V), 600 ohms (72/80V)

  • Coil resistance (DC pump contactor): 31 ohms (36/48V), 70 ohms (72/80V)

  • Coil resistance (line contactor): 31 ohms (36/48V), 85 ohms (72/80V)

  • Temperature sensor resistance: 530 ohms at 25°C (77°F)

  • Brake drum max diameter limit: 311.7 mm (12.27 in.)

  • Wheel cylinder mounting bolt torque: 18–27 Nm (13–20 lbf ft)

  • Back plate mounting bolt torque: 255 Nm (188 lbf ft)

File & Download Details
keyboard_arrow_down
Listing ID:
31184
Seller:
Elizabeth Lewis
File Size:
59.33 MB
File Type:
ZIP
Language:
English
Pages:
1,008
Printable:
Yes
Delivery:
Download link on the confirmation page and by email after payment.
Download link validity:
3 days after purchase. Your saved PDF does not expire.

Hyster Manual Features & Content Preview

Hyster service and repair sections for E2.00-3.20XM (E45-65Z) [G108], including electrical publications P/N 1534734 and 1534735, with section editions spanning 2004–2008. Shared chapters list J2.00-3.20XM (J40-65Z) [A416/B416], V30ZMD [D210/E210], E1.50-2.00XM (E25-35Z, E40ZS) [E114/F114], and E3.50-5.50XL/E4.50XLS (E70-120Z, E100ZS) [D098/E098]. For these trucks, match the chapter's chassis code and installed equipment.

Text search and diagram navigation: Running text is searchable; text within some diagrams, illustrated tables and ETACC screenshots is not. Service chapters have section bookmarks; Electrical Diagrams has only cover-level entries. Small wiring labels require zooming.

  • AC control diagnosis: Master, traction and pump controller checks, CANbus fault tracing, status-code charts, Standard/Premium display functions and performance adjustments.

  • Electric motor repair: AC motor disassembly and bearing service, plus DC brush, commutator, field and armature inspection and testing.

  • Hydraulic repair: Pump and tank service, electro-hydraulic valve disassembly, component checks, mini-lever/joystick tests and lift, tilt and auxiliary calibration.

  • Brakes and steering: Wheel/master cylinder repair, parking and seat-brake adjustment, steering axle/control-unit overhaul, pressure testing and system bleeding.

  • Drive axle and frame: Speed reducer/differential overhaul, bearing preload, axle replacement, counterweight removal and battery/operator restraint-system service.

  • Masts and cylinders: Mast/carriage disassembly, lift-chain and header-hose adjustment, lift/tilt cylinder rebuilding and leakage checks.

  • Service references: Periodic maintenance, industrial battery care, capacity and mast-speed data, wear limits, electrical/hydraulic test specifications, torque tables, sealants and fastener guidance.

These sections suit trained, authorized lift-truck service personnel equipped for electrical diagnosis, hydraulic testing and heavy-component handling.

AC Controls and Wiring Coverage

Drawings distinguish early Gen IV and later Gen V panels, AC-pump controls and AC-traction/DC-lift-pump arrangements. Matching the layout to the truck helps avoid tracing the wrong fuse, contactor or controller-pin circuit.

Control settings cover BDI/lift interrupt, regenerative braking, auto-deceleration, speed limits, steering delay, service reminders and pump-speed parameters. Status charts address seat-switch and brake-pressure inputs, valve-coil current, motor-temperature faults, overheating, seat-brake faults and controller communication.

Electrical service covers displays, switches, sensors, lights, relays, alarms, fuses and harness splices. Motor controllers are replacement units when an internal fault occurs.

Representative drawings include G108 36/48V manual-hydraulic wiring, G108/V30ZMD 36/48V electro-hydraulic wiring, G108 72/80V wiring, standard/high-flow valve schematics, ring-and-pinion contact-pattern views and mast header-hose arrangements. Traction and hydraulic motor power-cable routing is also shown.

Diagram book 8000 SRM 1059 covers A416, D210/E210, E114/F114 and G108. The referenced B416 and D098/E098 diagram publications, 8000 SRM 1225 and 8000 SRM 1203, are not included.

ETACC Setup and Diagnostics

ETACC documentation covers legacy PC setup, truck connection, factory-default/custom configurations, serial-number and hourmeter changes, display-language downloads, password/inspection functions, reports, logs and live diagnostics.

It references Interface Cable Kit P/N 1534010 and installation CD P/N 1539240; the controller diagnostic chapter also identifies breakout kit P/N 1397311. Software, CDs, cables, breakout hardware and password files are not supplied with the manuals.

AC and DC Motor Repair Limits

AC procedures address bearing replacement, the traction-motor seal, encoder-bearing orientation and sensor checks. Serviceable internal parts are limited to bearings and the seal on the traction motor, and bearings on the AC hydraulic pump motor.

The motor chapter warns that incorrect end-bell handling can damage the encoder wire; its troubleshooting chart links encoder faults to slow or jerky travel. DC procedures cover applicable pump/steering motors, while brushless DC steering motors are identified as nonrepairable.

Hydraulics, Brakes and Steering

Hydraulic coverage separates early/later G108 layouts and manual/electro-hydraulic controls, including separate steering and lift pumps. Valve troubleshooting and repair cover EHPR and compensator cartridges, relief/check valves, the tilt counterbalance valve, mini-lever module and joystick. Cartridge repair is limited to seal replacement; the sealed valve driver has no serviceable internal components.

Manual-hydraulic descriptions and schematics are included; the separate Manual Hydraulic Control Valve 2000 SRM 562 repair section is not.

Brake procedures cover service-brake disassembly, parking-brake linkage, seat-brake variants and switch tests. They explain the service-brake adjustment required before parking-brake setup and warn that a dragging seat-brake drum can damage the brakes and overheat the traction motor.

Steering coverage includes cylinder repair and control-unit overhaul, with air-removal procedures and pressure checks.

Masts, Carriages and Maintenance

Both 4000 SRM 522 and 4000 SRM 1148 mast repair sections are supplied. Coverage spans two-stage LFL, two-stage FFL, three-stage FFL and four-stage FFL masts, with standard, hang-on and integral sideshift carriages, forks, lift chains and header hoses.

Periodic Maintenance distinguishes V30ZMD attachment S/N D210V from D210N/E210 for attachment service. Industrial Battery covers battery selection, counterweight requirements, hydrometer checks and charging; internal battery repair requires specialized training and equipment.

For work around high-current circuits, heavy components, raised masts and pressurized hydraulics, follow the applicable Hyster isolation, blocking, lifting and pressure-release precautions.

Printable PDF Sections and Page Breakdown

The ZIP contains these separate English SRM publications, each with its own part number.

PDF section P/N Pages

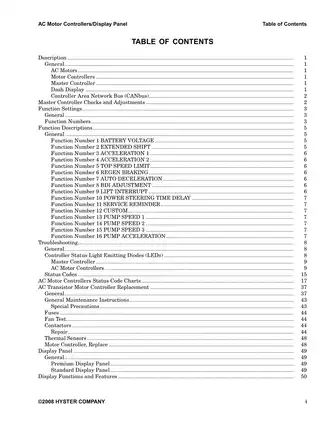

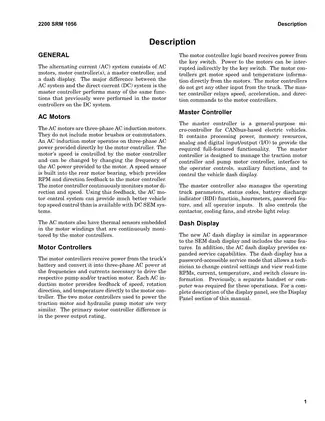

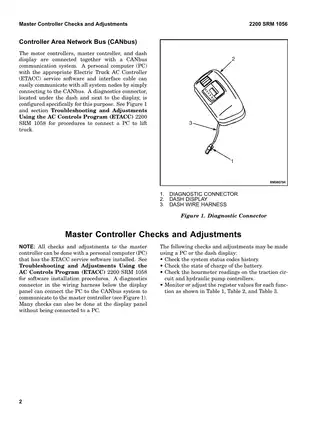

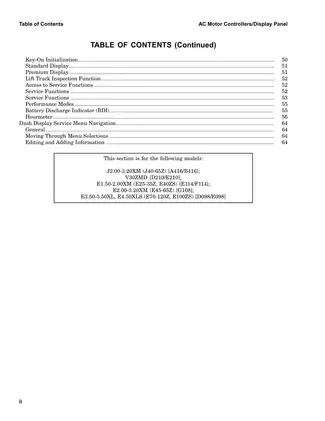

AC Motor Controllers/Display Panel — 2200 SRM 1056 1534735 68
AC Motor Repair — 620 SRM 1098 1556364 11
Brake System — 1800 SRM 574 897669 40
Capacities and Specifications — 8000 SRM 1083 1553986 16
Cylinder Repair — 2100 SRM 1139 1580516 28
DC Motor Maintenance — 620 SRM 294 897076 27
Drive Axle, Speed Reducer, and Differential — 1400 SRM 285 897067 21
Electrical Diagrams — 8000 SRM 1059 1534738 77
Electrical System (Trucks With AC Controllers) — 2200 SRM 1055 1534734 66
Electro-Hydraulic Control Valve — 2000 SRM 1224 1616865 73
Frame — 100 SRM 558 897638 35
Hydraulic System — 1900 SRM 559 897639 83
Industrial Battery — 2240 SRM 1 899648 19
Mast Repairs — 4000 SRM 522 897507 88
Mast Repairs — 4000 SRM 1148 1580524 96
Mast Description — 4000 SRM 521 897506 19
Metric and Inch (SAE) Fasteners — 8000 SRM 231 910442 19
Periodic Maintenance — 8000 SRM 1060 1534739 79
Steering Axle — 1600 SRM 258 910460 12
Steering Housing and Control Unit — 1600 SRM 720 1459370 17
Steering System for AC Electric Lift Trucks — 1600 SRM 1054 1534733 19
Tilt Cylinders — 2100 SRM 103 910102 19
Troubleshooting and Adjustments Using the AC Controls Program (ETACC) — 2200 SRM 1058 1534737 76

This 1,008-page set comprises 23 printable PDFs. The total already includes 23 title pages, 34 contents pages, 12 notes pages and 21 blank pages; all are included in the listed file counts.
