Hyster R30XM2 / R30XMA2 / R30XMF2 2005–2008 Forklift Service Manual Set (P/N 1496737)

The model-specific electrical, diagram, maintenance, and specification sections support diagnosis and repair planning together. Shared SRM chapters provide the associated component procedures.

The dedicated Wire Guidance section applies to R30XM2 and R30XMA2 within the G118 family. Shared publications also contain material for other truck families; their individual coverage must be matched to the equipment being serviced.

PDF Text Search, Bookmarks, and Wiring Detail

Search and drawing detail: Service text is searchable across the set, with useful section bookmarks in 18 files. In Diagrams, search covers captions and the hydraulic legend, while drawing labels are embedded in images; its bookmarks lead only to the document start. Small connector and wire labels on the checked electrical drawings require zooming.

The ZIP download contains 19 printable English PDFs totaling 409 pages. This total already includes 19 covers, 24 contents pages, 11 notes pages, and 18 blank end pages.

Electrical Fault Finding, Drive Repair, and Lift-System Service

These selected content highlights cover the main workshop areas. Further topics include caster-wheel replacement and fastener strength identification.

• Electrical diagnosis: CANbus fault-code and display-message troubleshooting, controller replacement, control-valve calibration, contactor tests, and height/steer encoder checks.
• APS steering: Multiturn and Return-to-Center systems, encoder replacement, centering-proximity-switch checks, and steering troubleshooting.
• Drive unit and brakes: Step-by-step MDU overhaul and gear adjustment procedures, plus electric-brake disassembly, shim adjustment, installation, and operational checks.
• Lifting hydraulics: Gear-pump and cylinder repair, Vista two- and three-stage upright teardown, load-roller adjustment, lift-chain setup, and leak testing.
• Batteries and motors: Industrial-battery maintenance, battery-indicator tests, DC motor overhaul, brush alignment, and armature/field circuit checks.
• Wire guidance: Truck setup and calibration, sensor alignment, guide-wire installation requirements, wire-driver testing, and guide-wire fault location and repair.
• Maintenance and schematics: Daily and periodic service procedures, component torque tables, lubrication and capacity data, electrical wiring diagrams, and hydraulic schematics.

This set is suited to lift-truck technicians familiar with electrical testing and precision component measurements; battery and charger maintenance requires trained personnel.

CANbus Controls and Controller Replacement

The G118 electrical section documents the Curtis 1310 Master Control Unit, Curtis 1243 Sepex traction controller, In-Motion APS steering, and Curtis 840 multifunction display. It connects these systems with the throttle Hall sensor, height and steer encoders, contactors, BDI, and hydraulic-control outputs.

Fault-code tables and input/output checks help trace reported faults to the relevant sensor, circuit, or controller before replacement is considered. Power-on self-test and runtime diagnostic information are available through the truck display; the Curtis 1307 handset is an additional diagnostic option, rather than the adjustment interface.

Replacement scope: The Curtis 1243 has no serviceable internal parts. Controller replacement guidance includes the Curtis 1310 memory-reset requirement and the diode-board requirement for G118 trucks produced prior to serial G118N01918A, using assembly P/N 2065361.

Battery Indicators and APS Steering

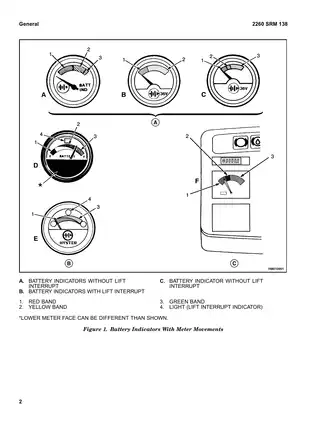

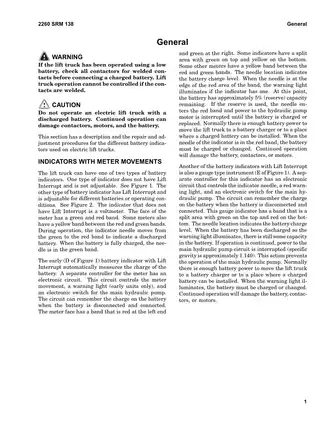

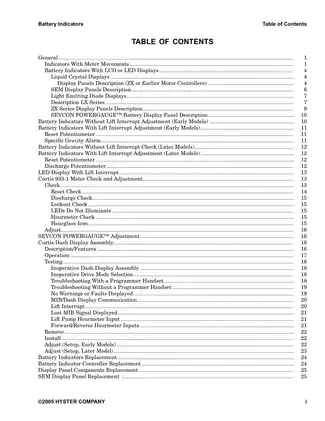

The shared battery-indicator section covers Curtis 933-1 meters, SEVCON POWERGAUGE units, SEM display panels, and EV-100/200LX, EV-100ZX, and EV-T100ZX applications. Reset, discharge, lockout, hourmeter, LED, lift-interrupt, and communication checks are supported by 15-pin and 18-pin connector information.

Its tables cover several battery-system voltages and indicator generations. These are component references, rather than additional G118 truck-voltage variants.

The steering publication distinguishes G118 APS equipment from EPS III systems used on other truck series. APS coverage includes Multiturn and optional Return-to-Center inputs, encoder replacement, and steering/centering proximity-switch diagnosis. The steer motor and its gearbox are described as having no serviceable internal parts.

Master Drive Unit and Electric Brake Repair

The HFK300/400 material covers spiral-bevel pinion and gear installation, backlash and tooth-contact adjustment, and bearing-clearance setup. The shared publication also contains a separate GK MDU section for other truck families.

HFK cautions address shaft-thread damage from improperly handled staked nuts and the locating pins that prevent the case halves from separating. The G118 brake procedures identify the friction-disc splines as vulnerable during installation and distinguish the mechanical brake operational check from regenerative stopping.

Hydraulic Pumps, Cylinders, and Vista Uprights

The shared gear-pump chapter includes flow-control and relief valves, two pump-output test methods, hydraulic-system air checks, and troubleshooting. Its illustrations and procedures span different pump configurations.

Pump assembly guidance explains how misplaced gasket or seal passages can interrupt oil flow to the thrust plate. The cylinder material adds seal and packing arrangements, cylinder disassembly and assembly, installation, and lift-system leak checks.

Vista upright coverage includes forks, the operator platform, two- and three-stage assemblies, load rollers, lift chains, and upright/platform adjustments. Separate DC motor procedures address brushes, commutators, motor teardown, brush alignment, and armature/field testing.

Maintenance, Wire Guidance, and Factory Drawings

Periodic Maintenance organizes work by daily, intermediate, and annual service periods. It covers hydraulics, batteries, mast and chains, brakes, steering, contactors, motor brushes, MDU service, wheels and bearings, and hydraulic oil/filter changes.

The guidance publications connect truck calibration and sensor alignment with guide-wire installation, wire-driver checks, and open-/short-circuit location and repair. Model-specific output specifications distinguish standard and optional wire-driver settings.

Electrical schematics: Named drawings include the 24/36V E/EE STD/Guidance CAN Bus EPS IV SEM Schematic Diagram and the Optional Equipment CAN Bus EPS IV SEM Schematic Diagram.

Wiring and hydraulics: The matching 24/36V E/EE STD/Guidance CAN Bus EPS-IV SEM Wiring Diagram, Optional Equipment CAN Bus EPS-IV SEM Wiring Diagram, and Hydraulic Schematic provide circuit and component-reference detail.

For electrical repair, disconnect and separate the battery connector before opening or servicing the electrical system. Upright and operator-platform repair requires the moving mast components to be mechanically secured before work begins.

Brake Air-Gap and Hydraulic Specification Examples

The G118 brake section distinguishes the factory air gap of 0.20–0.40 mm (0.008–0.016 in.) from its post-adjustment check range of 0.28–0.41 mm (0.011–0.016 in.).

Hydraulic specifications list a relief setting of 22.4 MPa (3200 psi) at an oil temperature of 54–66°C (130–150°F). Approximate tank capacity at the full mark is 32.0 L for R30XM2/R30XMA2 and 36.0 L for R30XMF2.
